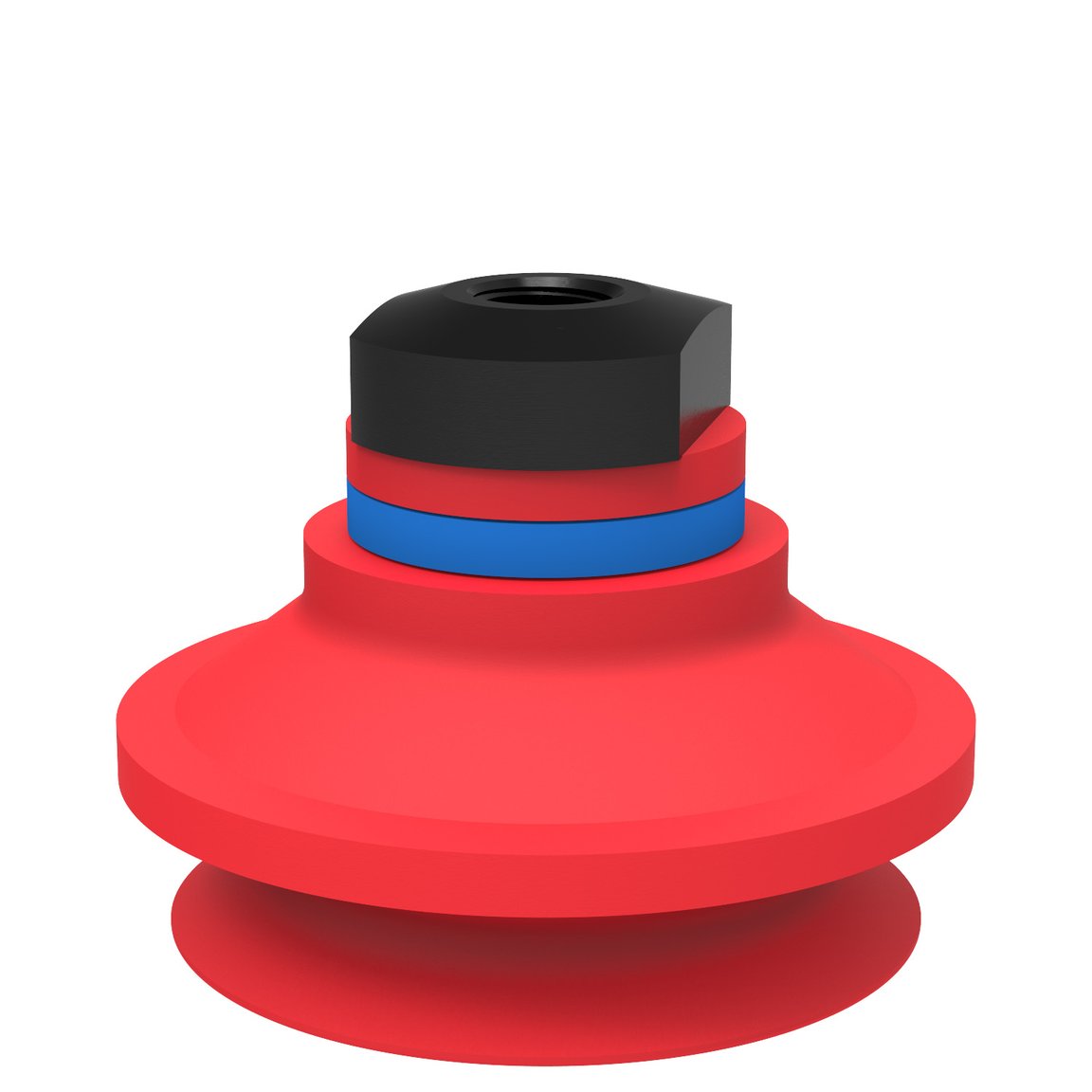

Suction cup B50-2 Silicone with filter, 1/8" NPSF female, with dual flow control valve
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0101109
0101110
0101656
0101657
0101658
0101659
0101660
0101661
0101662
0101663
0101669
0101670
0101671
0101672
0101673
0101674
0101675
0101676
0101677
0110347
0110957
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
- With mesh filter.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal , Plastic injection molded parts
Leakage flow, max.
0.16 Nl/s
Suction cup model
B
Valve restriction
1 mm
Volume
32 cm³
Weight, min.
20 g
Fitting
Fitting option
Dual flow control valve , Filter disc
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
44.4 mm
Outer diameter, actuated
59 mm
Outer diameter, min.
51.8 mm
Performance - lifting forces
B50-2
20 -kPa
33 N
24.2 N
60 -kPa
65 N
51.2 N
90 -kPa
82 N
60.8 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
