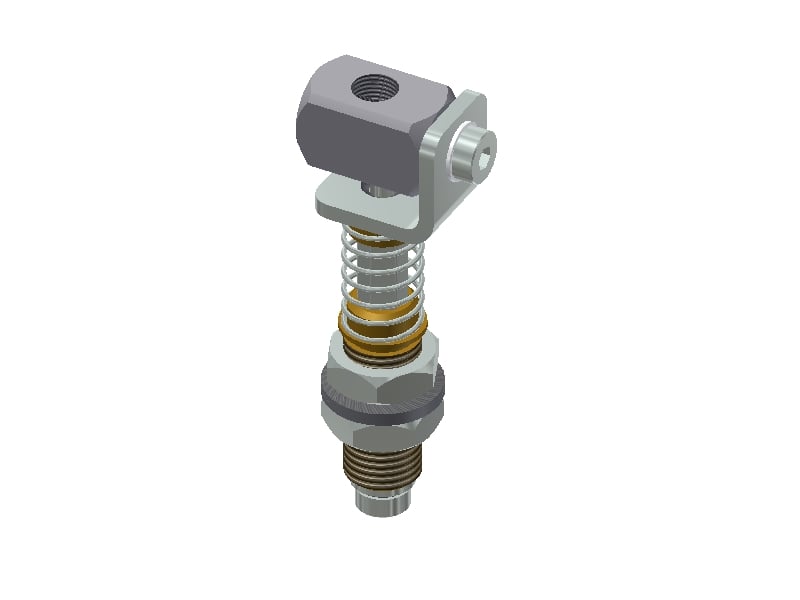

GGS 14-M-15 Spring Loaded Non-Rotational Gripper Arm
Login or create account to access all our content and features!
Variants
0213093
0213094
0213095
0213096
0213097
0213098
0213099
0213100
0213101
0213102
Features
- Extends and mounts vacuum cups to mounting clamps.
- Side ported for quick-touch pneumatic hose connectors.
- Top bracket adjusts angle to match contour of part.
- Spring-loaded for part compliance.
- Threaded shafts include jam nuts and lock washers for plate mounting.
- Available with clampable shaft (C), threaded shaft (M)
Dimensions DWG
Diameter
G 1/8"
Diameter
14 mm
Length
15 mm
Length
51 mm
Length
88 mm
Length
31 mm
Thread
G 1/8 in
Width
31 mm
General
Weight
106 - 104 g
