Item number: 0213074
10 Variants

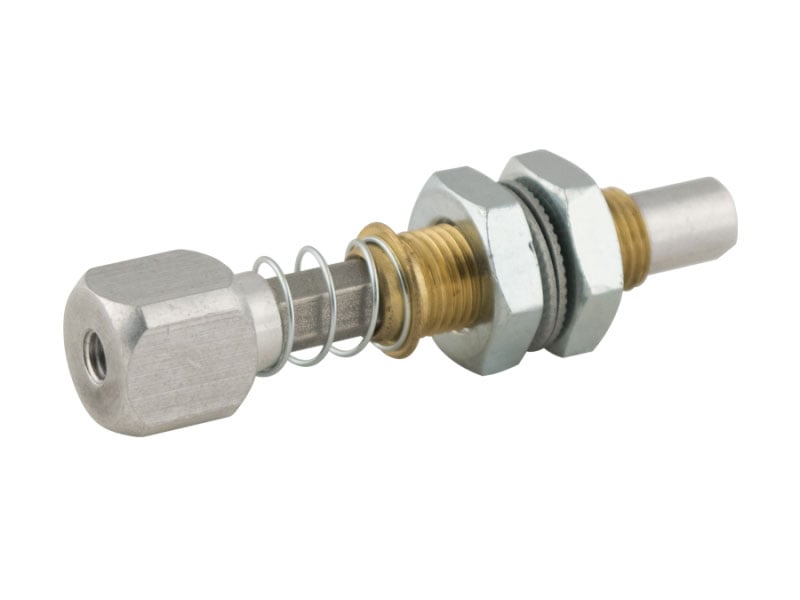

GNE 10-M-10 Non-Rotational Gripper Arm
Login or create account to access all our content and features!
Variants
0213073
0213074
0213075
0213076
0213077
0213078
0213079
0213080
0213081
0213082
Features
- Extends and mounts vacuum cups to mounting clamps.
- End ported for quick-touch pneumatic hose connectors.
- When clamping shafts, maximum recommended torque on M5 clamping screws is 50 in-lbs (5.6 N-m).
- Available with clampable shaft (C) and threaded shaft (M).
- Threaded shafts include jam nuts and lock washers for plate mounting.
Dimensions DWG
Diameter
M5
Diameter
M5
Diameter
M10 x 1
Length
10 mm
Length
65 mm
Length
13 mm
Thread
M5 in
Thread
M5 in
Width
13 mm
General
Weight
40 - 40 g
