Item number: 0213064
10 Variants

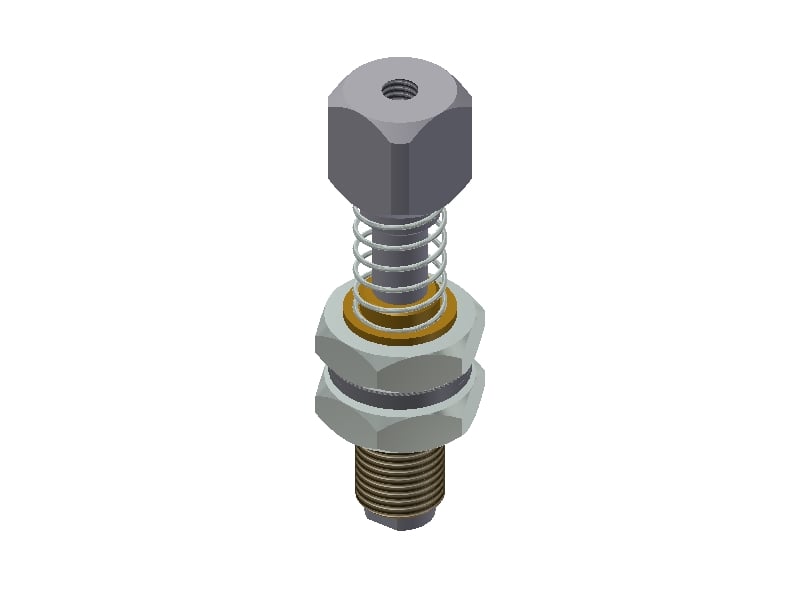

GEP 10-M-10 Spring Loaded Gripper Arm
Login or create account to access all our content and features!
Variants
0213063
0213064
0213065
0213066
0213067
0213068
0213069- 0213070
0213071
0213072
Features
- Inline spring arm extends and mounts vacuum cups to mounting clamps.
- End ported for quick-touch pneumatic hose connectors.
- Spring-loaded for part compliance.
Dimensions DWG
Diameter
M5
Diameter
M5
Diameter
M10 X 1
Height
12.7 mm
Length
10 mm
Length
58 mm
Length
12.7 mm
Thread
M5 in
Thread
M5 in
Width
12.7 mm
Width
58 mm
General
Weight
34 - 34 g
Dimensional drawings
