Item number: 0213060
16 Variants

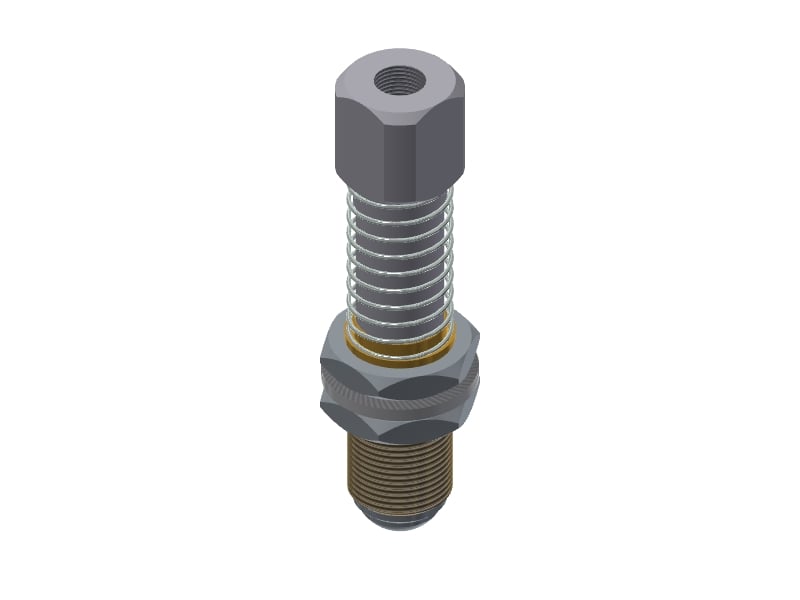

GAF 30-M-40 Spring Loaded Gripper Arm
Login or create account to access all our content and features!
Variants
0213047
0213048
0213049
0213050
0213051
0213052
0213053
0213054
0213055
0213056
0213057
0213058
0213059
0213060
0213061
0213062
Features
- Extends and mounts vacuum cups to mounting clamps.
- Side ported for quick-touch pneumatic hose connectors.
- Spring-loaded for part compliance.
Dimensions DWG
Diameter
G 3/8"
Diameter
G 1/4"
Diameter
M30 X 1,5
Height
32 mm
Length
40 mm
Length
152 mm
Length
32 mm
Thread
G 3/8 in
Thread
G 1/4 in
Width
32 mm
General
Weight
432 - 432 g
