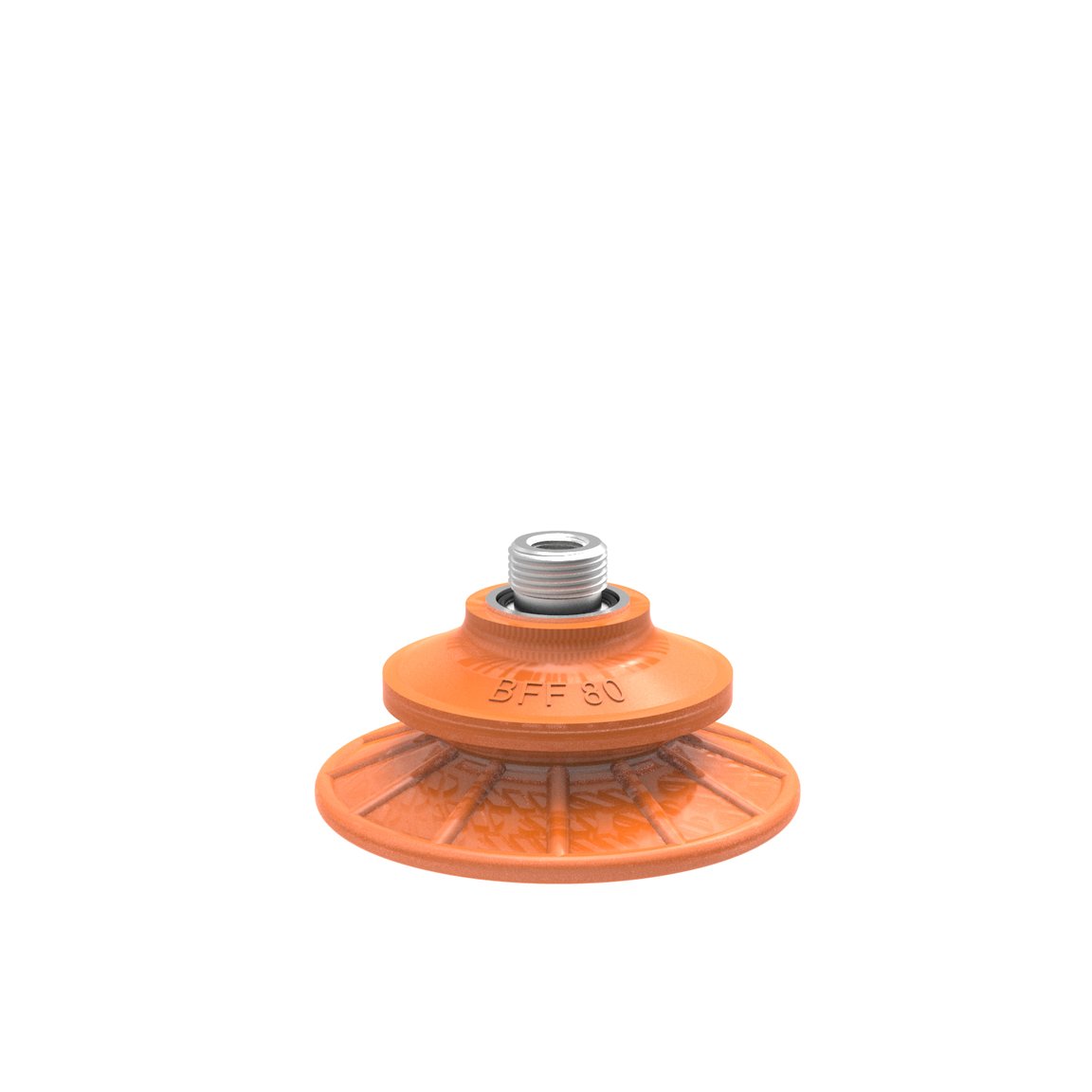

Suction cup BFF80TP Polyurethane 55/60/30 G3/8" male, 1/8" NPSF female, with mesh filter - 1
Item number: BFF80TP.5S.G69MR
9 Variants

Suction cup BFF80TP Polyurethane 55/60/30 G3/8" male, 1/8" NPSF female, with mesh filter

The BFF-TP design is suitable for oily surfaces, uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications. The flat in...
Read more
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup BFF80TP Polyurethane 55/60/30. 3/8" NPT female with mesh filter
    BFF80TP.5S.N49MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" female with mesh filter
    BFF80TP.5S.G77MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" female plastic thread
    BFF80TP.5S.G56WC
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" male, 1/8" NPSF female, with mesh filter
    BFF80TP.5S.G69MR
  • Suction cup BFF80TP Polyurethane 55/60/30 T-slot with mesh filter
    BFF80TP.5S.T2MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G1/4" female with mesh filter
    BFF80TP.5S.G75MR
  • Suction cup BFF80TP Polyurethane 55/60/30 M10x1,5 male with mesh filter
    BFF80TP.5S.M10MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" female with mesh filter, 17 mm thread
    BFF80TP.5S.G78MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G1/4" male with mesh filter
    BFF80TP.5S.G79MR

Features

  • Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
  • Normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet.
  • Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
  • The "BFF" design is suitable for uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications.
  • The flat inner support gives stability during movement in any orientation.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
