Item number: 0128693
32 Variants

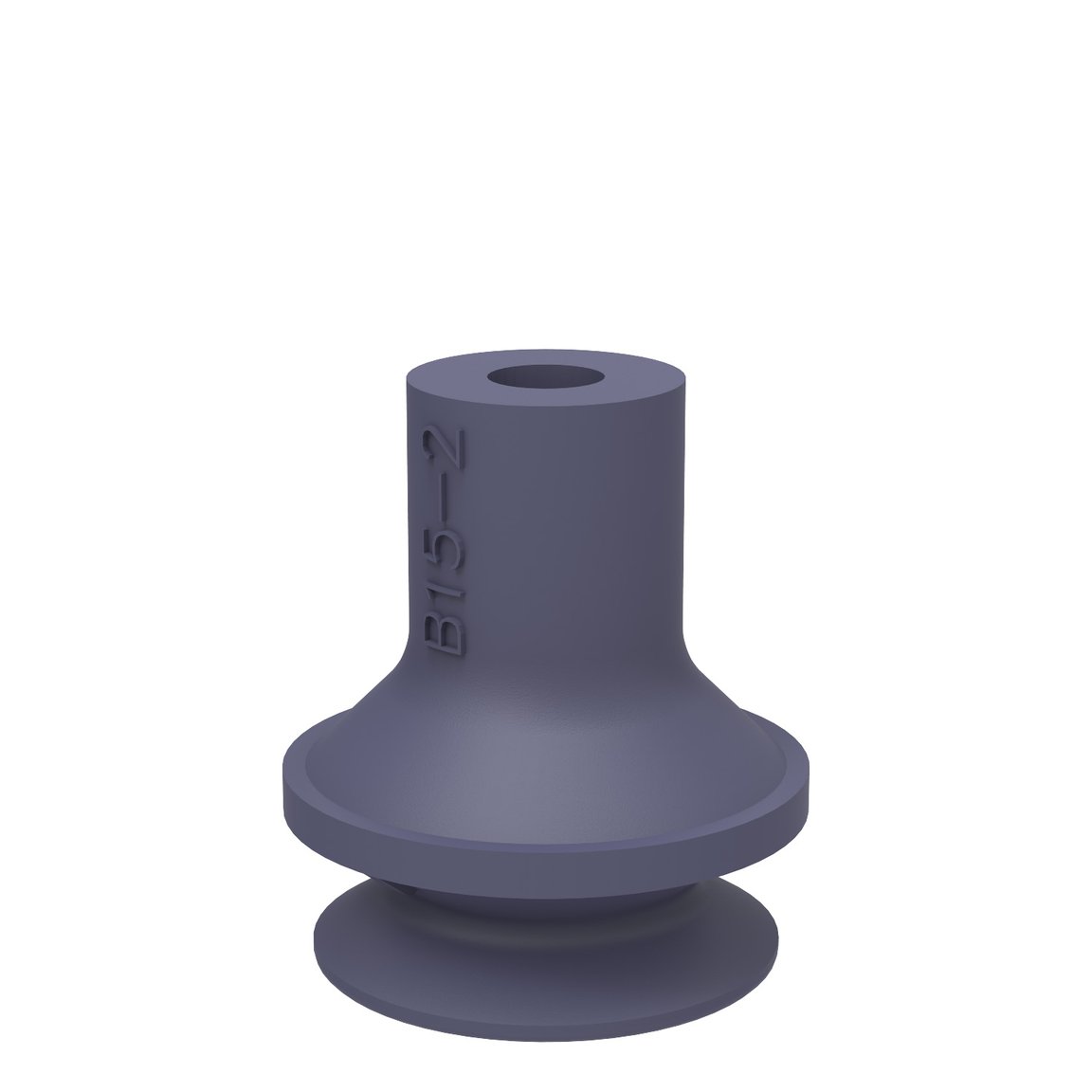

Suction cup B15-2 HNBR
Piab’s HNBR bellow suction cups are engineered for high-performance handling in challenging industrial settings. Made from HNBR, these cups provide outstanding resistance to heat, oil, and chemicals. The flexible bellow design allows for excellent adaptability to uneven surfaces and compensates for height differences, ensuring a secure and reliable grip. Ideal for automotive and heavy-duty applications, HNBR bellow suction cups deliver durable, consistent performance in demanding environments.
Login or create account to access all our content and features!
Fitting
1/4" NPT FemaleAl
1/4" NPT MaleDual flow control valve, SS
1/4" NPT MaleDual flow control valve, Al
1/8" NPSF FemaleDual flow control valve, Al
1/8" NPSF FemaleDual flow control valve, Al
1/8" NPT MaleFilter mesh, Al
3/8" NPSF FemaleFilter mesh, Al
3/8" NPT MaleDual flow control valve, Al
3/8" NPT MaleDual flow control valve, Al
5xM5 FemaleAl
G 1/2" FemaleFilter mesh, Al
G 1/4" MaleDual flow control valve, Al
G 1/4" MaleDual flow control valve, Al
G 1/8" MaleFilter mesh, SS
G 1/8" Male, M5 FemaleAl
G 1/8" Male, M5 FemaleFilter mesh, Al
G 3/8" FemaleFilter mesh, Al
G 3/8" MaleDual flow control valve, Al
G 3/8" MaleDual flow control valve, Al
M5 FemaleAl
M5 MaleCuZn
Without fitting None
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
