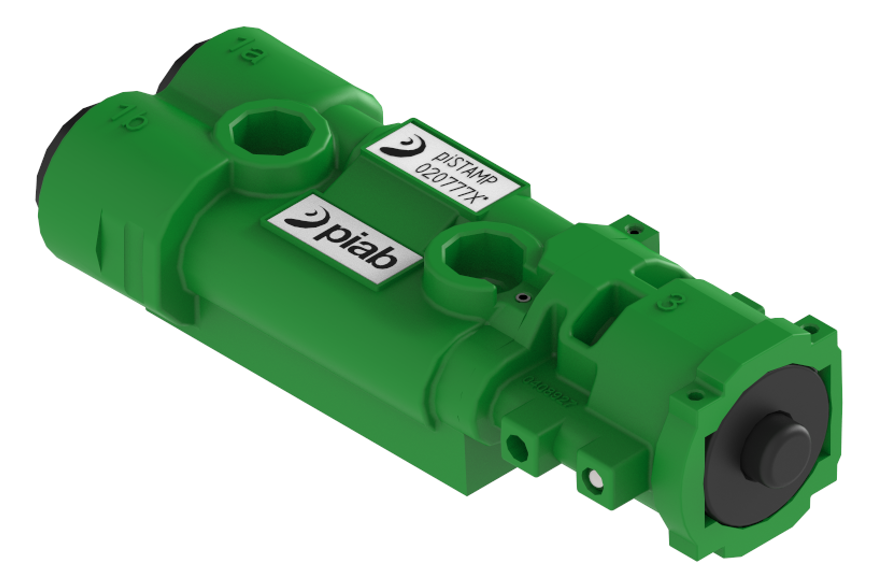

piSTAMP Enhanced Blow-Off COAX® MICRO Ti05-2x2, 8-8 mm

Login or create account to access all our content and features!

Variants

  • 0212890
  • 0212891
  • 0212892
  • 0212893
  • 0212894
  • 0212895

Features

  • Ultra-lightweight decentralized ejector with integrated release function
  • Release function based on Exhaust Block principle (EBR), suitable for fast cycle speeds.
  • The EBR-function can be manually activated with a built in EBR-button.
  • EBR with enhanced blow-off – a shunt line for compressed air will amplify and speed up the part release function. Compressed air consumptions increases a bit vs standard EBR during blow-off.
  • Two different ejectors to choose between.
  • Ejector with STX nozzle gives extra fast response and a faster release function. Also recommended in very dirty/dusty environments.
  • Ejector with Ti nozzle for extra high vacuum flow.
  • Generic design and mounting interface, suitable for end-of-arm-tools and suction cup holders used in automotive press-shops.
  • O-ring sealed vacuum port (non-threaded).

Automotive

  • Auto-racking unload & assembly
  • De-stacking
  • Press-transfer
  • End of line racking

General

Material
CuZn , HNBR , Nitrile (NBR) , PA66 , POM , SS , TPE
Noise level, min.
71 dBA
Temperature
0 - 50 °C
Weight, min.
49 g

Performance

Feed pressure
0.3 - 0.7 MPa
Feed pressure, optimum, max.
0.5 MPa
Vacuum, max.
81 -kPa

Pneumatic data

Flow rate, min. (Blow-Off flow at 5 MPa.)
1.3 Nl/s
Feed pressureAir consumptionVacuum flow (Nl/s) at different vacuum levels (-kPa)Max vacuum
MPaNl/s0102030405060708090-kPa
0.50.640.70.630.520.390.260.150.110.060.015081
