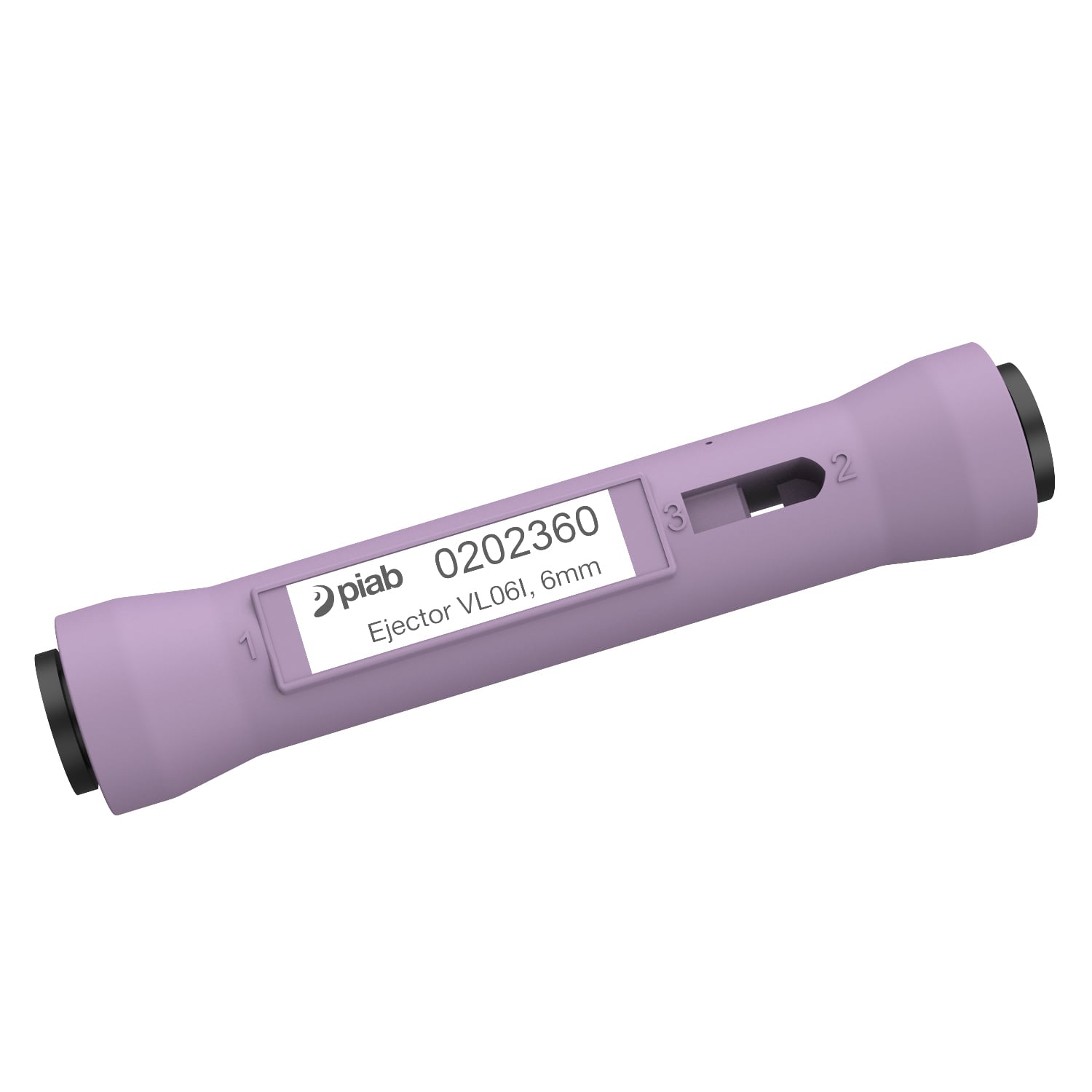

Value Line® Inline vacuum generator 6mm
Light weight and small sized vacuum ejectors with integrated push-in fittings. One is made with a T-design that will allow exhaust air to be piped away. The oth...
Read more
Login or create account to access all our content and features!
Variants
- 0202360
- 0202187
- 0202191
- 0205733
Features
- Ejector with improved vacuum performance compared to corresponding size conventional single-stage ejector.
- Ejector stage without flap valve gives high reliability in dirty and dusty environments.
- Light weight body.
- Integrated push-in fittings or thread connection for quick and low cost installation.
- Available in “Inline”, “T-design” or aluminum block version.

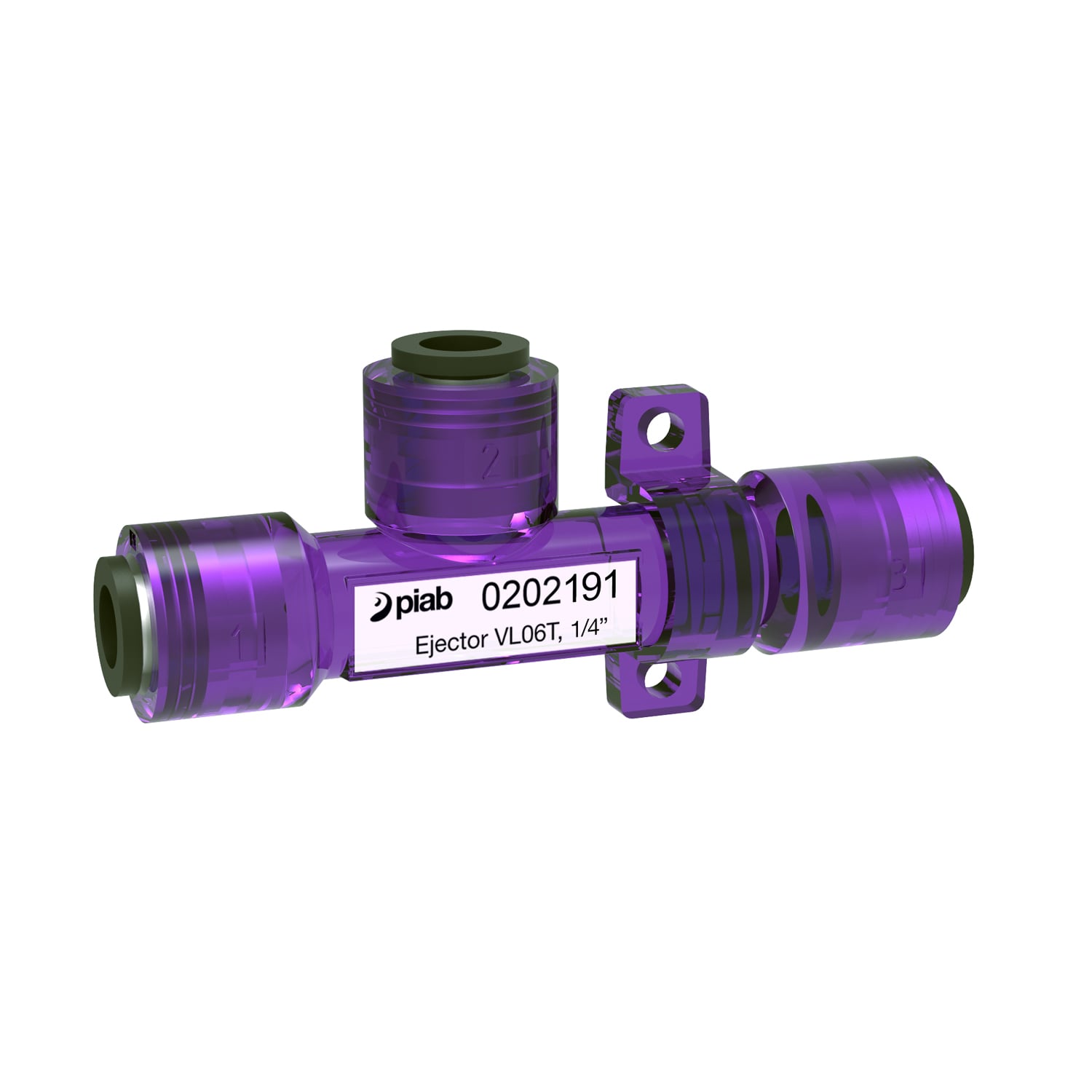

- The T-design is suitable if exhaust air needs to be piped away.

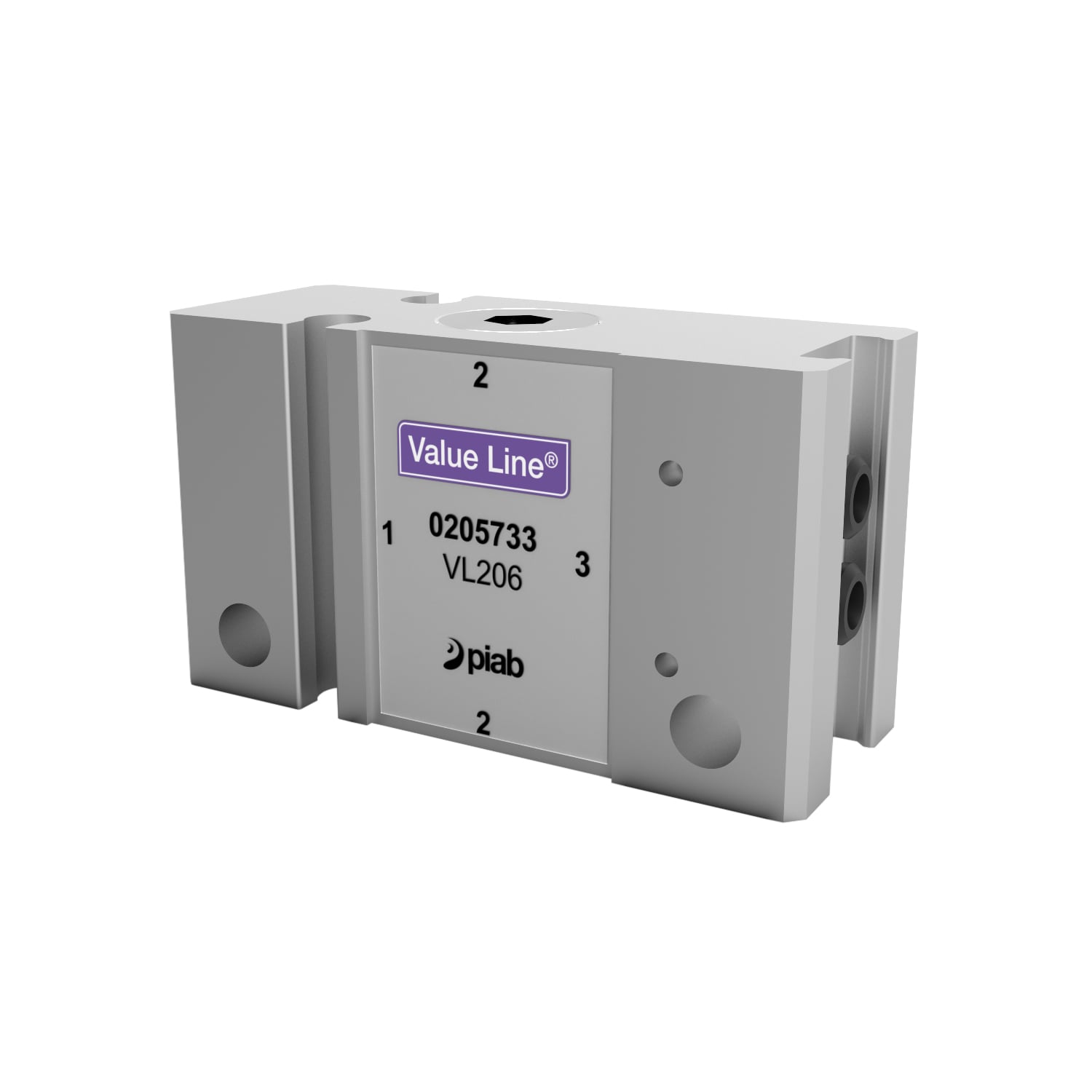

- The VL206 1/8” block version is an easy-to-install alternative, targeting operators of basic automated vacuum systems.
General
Material
Al , CuZn , Nitrile (NBR) , PA , SS
Noise level
70 - 83 dBA
Temperature
-10 - 80 °C
Weight, min.
12 g
Performance
Air consumption (at optimum feed pressure)
0.32 Nl/s
Feed pressure, max.
0.7 MPa
Feed pressure, optimum, min.
0.5 MPa
Feed pressure | Air consumption | Vacuum flow (Nl/s) at different vacuum levels (-kPa) | Max vacuum | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
MPa | Nl/s | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | -kPa |
0.5 | 0.32 | 0.29 | 0.26 | 0.23 | 0.2 | 0.15 | 0.1 | 0.05 | 0 | 0 | 0 | 70 |
