Item number: 0109276
24 Variants

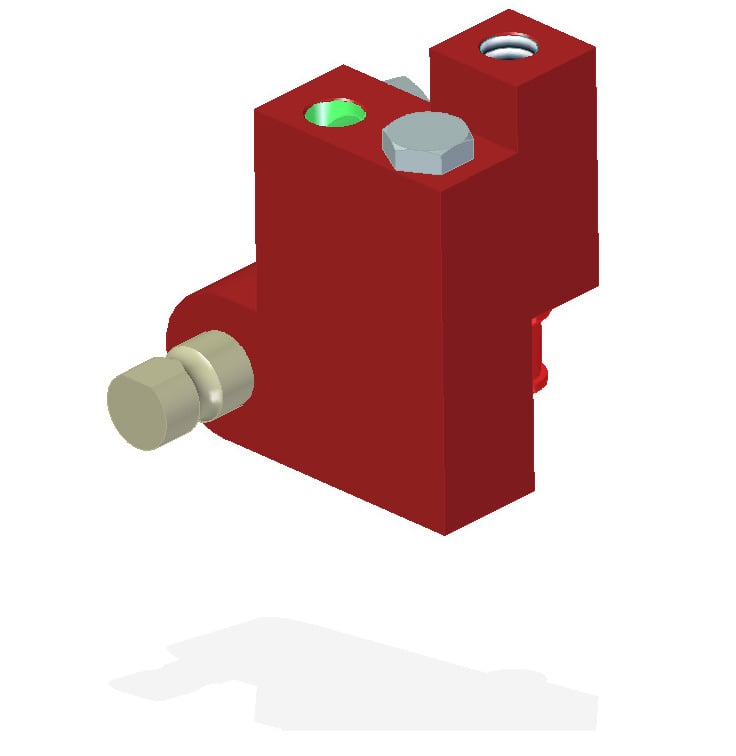

Vacuum Check Valve VT-1H COAX®, G threads, Lock pin 16, Left hand connection

These vacuum pumps combine high security and the most energy-efficient solution for sealed material, COAX® technology with automatic air-saving function. They h...
Read more
Login or create account to access all our content and features!

Variants

  • 0109276
  • 0111147
  • 0110435
  • 0121007
  • 0119573
  • 0121018
  • 0109278
  • 0120991
  • 0120990
  • 0121010
  • 0121015
  • 0121021
  • 0121026
  • 0121038
  • 0121056
  • 0121025
  • 0121039
  • 0121057
  • 0121032
  • 0121044
  • 0121062
  • 0121031
  • 0121045
  • 0121063

Features

  • Two-stage COAX® cartridge MINI Pi12-2 integrated.
  • Check valve that traps vacuum in sealed applications for safe operation.
  • Built-in blow off check valve for fast release of object.
  • Available in lock pin 16, 19 or ball joint mountings, industry standard.
  • Available with level compensator to compensate for differences in level of object.
  • Recommend using 4mm (5/32”) tubing and no more than 80 psi for blow off.
  • Recommend using 6mm (1/4”) tubing and no more than 80 psi for vacuum.
  • Equal line lengths from common manifold should be used for both blow-off and vacuum.
  • Maximum of (12) units per tool.

Automotive

  • Bodysides & framing
  • Closures - hemming stations – inner & outer assembly
  • Glass assembly & installation

Glass

    General

    Material
    Al , Ceramic , CuZn , Nitrile (NBR) , PA , PP , SS , Steel
    Noise level
    66 - 68 dBA
    Temperature
    -10 - 80 °C
    Weight
    355 - 399 g

    Performance

    Feed pressure ()
    0.25 - 0.55 MPa

    Pneumatic data

    Vacuum flow, range, max.
    0.68 Nl/s
    Life span ()
    10000000 cycles
    Feed pressureAir consumptionVacuum flow (Nl/s) at different vacuum levels (-kPa)Max vacuum
    MPaNl/s0102030405060708090-kPa
    0.170.290.570.40.220.150.070000049
    0.220.340.640.480.290.20.140.080.0200064
    0.3140.440.680.60.440.270.190.140.10.060.03090
    0.40.530.660.60.520.390.240.120.10.060.02084
    0.60.7500000000000
