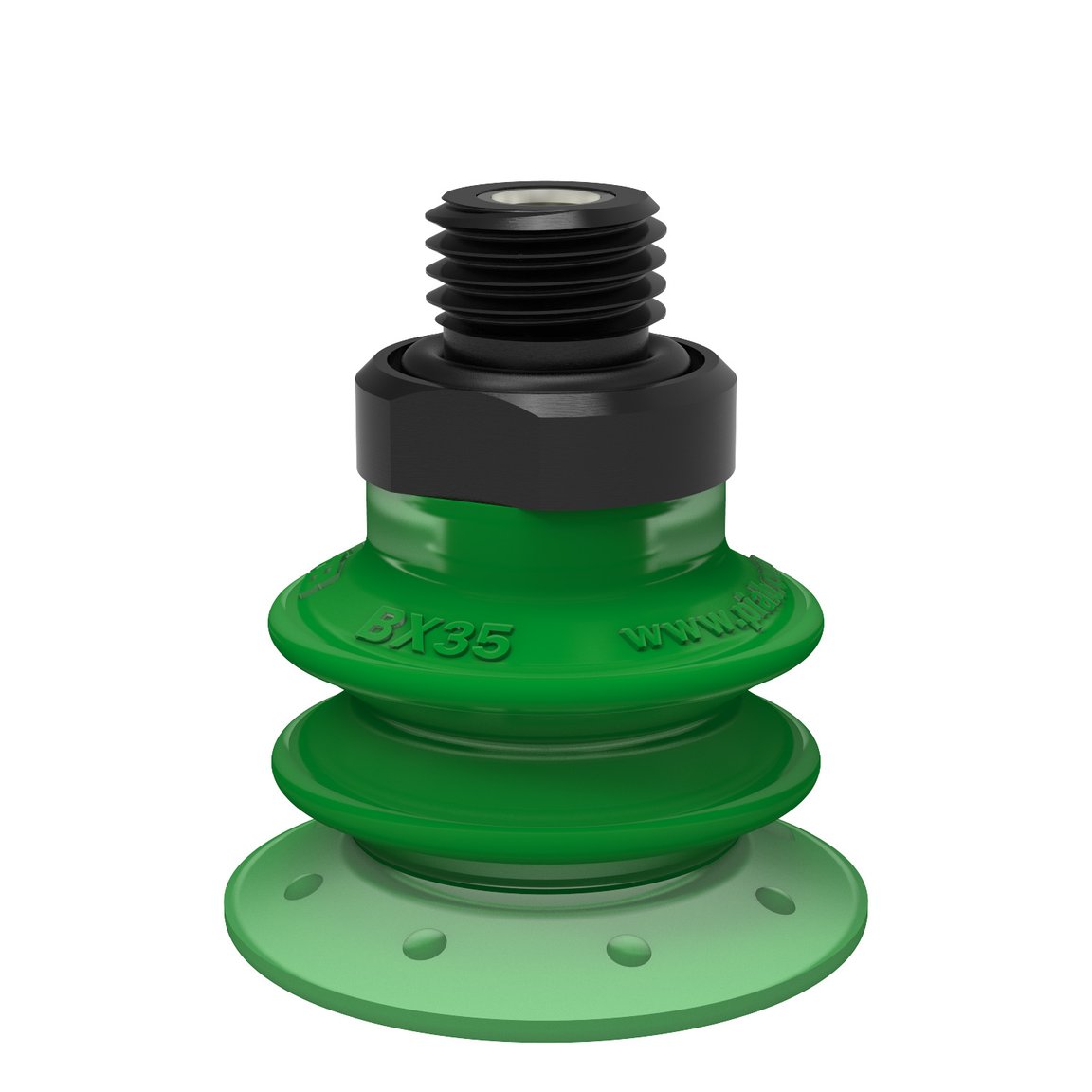

Suction cup BX35P Polyurethane 60 with filter, G1/4" male, with mesh filter

Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.

Check availability

Request quote

Description

Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.
Features
- Suitable for level adjustment and for uneven and porous surfaces such as cardboard, etc.
- In the two-coloured suction cup the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable and, at the same time, soft and flexible.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
- The material DURAFLEX® is mark free.
Specifications
General

Application

CorrugatedCardboard, MarkFree, PlasticInjectionMoldedParts, DrySheetMetal

Suction cup shape

Multibellows

Material

Polyurethane (PU60)

Suction cup model

BX-P

Weight

8 g

Volume

10 cm³

Suction cup model

BX35P PU60

Movement, vertical max.

14 mm

Curve radius, min.

10 mm

Fitting

Fitting option

F, FM

Fitting size

1/4"

Fitting style

Male

Fitting type

G-thread

Dimension

Height

41.8 mm

Outer diameter

37 mm

Performance - lifting forces

BX35P PU60

20 -kPa

60 -kPa

90 -kPa

15 N

25 N

30 N

14 N

23 N

28 N

Material

Name

PU60

Colour

GreenTransparent

Temperature

10 - 50 °C

Hardness

60 °Shore A

PU60

Alcohol

n/a

Concentrated acids

+

Ethanol

+

Hydrolysis

+

Methanol

-

Oil

+++

Oxidation

-

Petrol

+

Wear resistance

+++

Weather and ozone

+++

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
Industries
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Plastics
- Plastic part removal
Packaging
- Boxes and containers
- Slip sheet feeding
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Tray forming, tray unloading and loading
- Robot pick and place and packing
- Card / lid feeding and sorting
Resources

Data sheet

Suction cup BX35P Polyurethane 60 with filter, G1/4" male, with mesh filter

Manuals

Storage guidelines for suction cups and other rubber products

Brochures

Vacuum Automation - Improve your productivity and energy efficiency

Certificates

Statement TSE

RoHS Compliance Statement Suction cups

Certificate of conformaty - EC1935/2004.

White papers

Suction cups enable the vacuum to grip

The road to state-of-the-art car production starts in the press shop

Getting a grip on bags

Filling without spilling
FAQ

How do I know which lifting forces I need?

It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).

How do I know which suction cup to choose?

Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.

How should Piab suction cups be stored?

Please see our storage guidelines:

Storage guidelines of suction cups and rubber products (pdf)

I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?

All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.

What is DURAFLEX®?

DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
Accessories/Spare parts
Accessories
- 3251008Fitting 1/4" NPT male, with dual flow control valve
- 3250093Fitting 1/4" NPT male, with mesh filter
- 3250005Fitting 1/8" NPSF female, 30–40
- 3251006Fitting 1/8" NPSF female, 30–40, with dual flow control valve
- 0101153Fitting 1/8" NPSF female, 30–40, with mesh filter
- 3251010Fitting 3/8" NPT male, with dual flow control valve
- 3250089Fitting 3/8" NPT male, with mesh filter
- 3251007Fitting G1/4" male, 30–40, with mesh filter and dual flow control valve
- 0200714Fitting G1/8" male, 40, with mesh filter
- 3251009Fitting G3/8" male, 30–40, with mesh and dual flow control valve
- 3250086Fitting G3/8" male, 30–40, with mesh filter
- 0106619Suction cup BX35P Polyurethane 30/60, with filter
- 0106292Suction cup BX35P, Polyurethane 30/60
- 0107477Suction cup BX35P, Polyurethane 60
Spare parts
- 3250091Fitting G1/4" male, 30–40, with mesh filter
- 0107376Suction cup BX35P Polyurethane 60, with filter
- 0201001Suction cup filter BX35P, 10 pcs
