Item number: 0210673
16 Variants

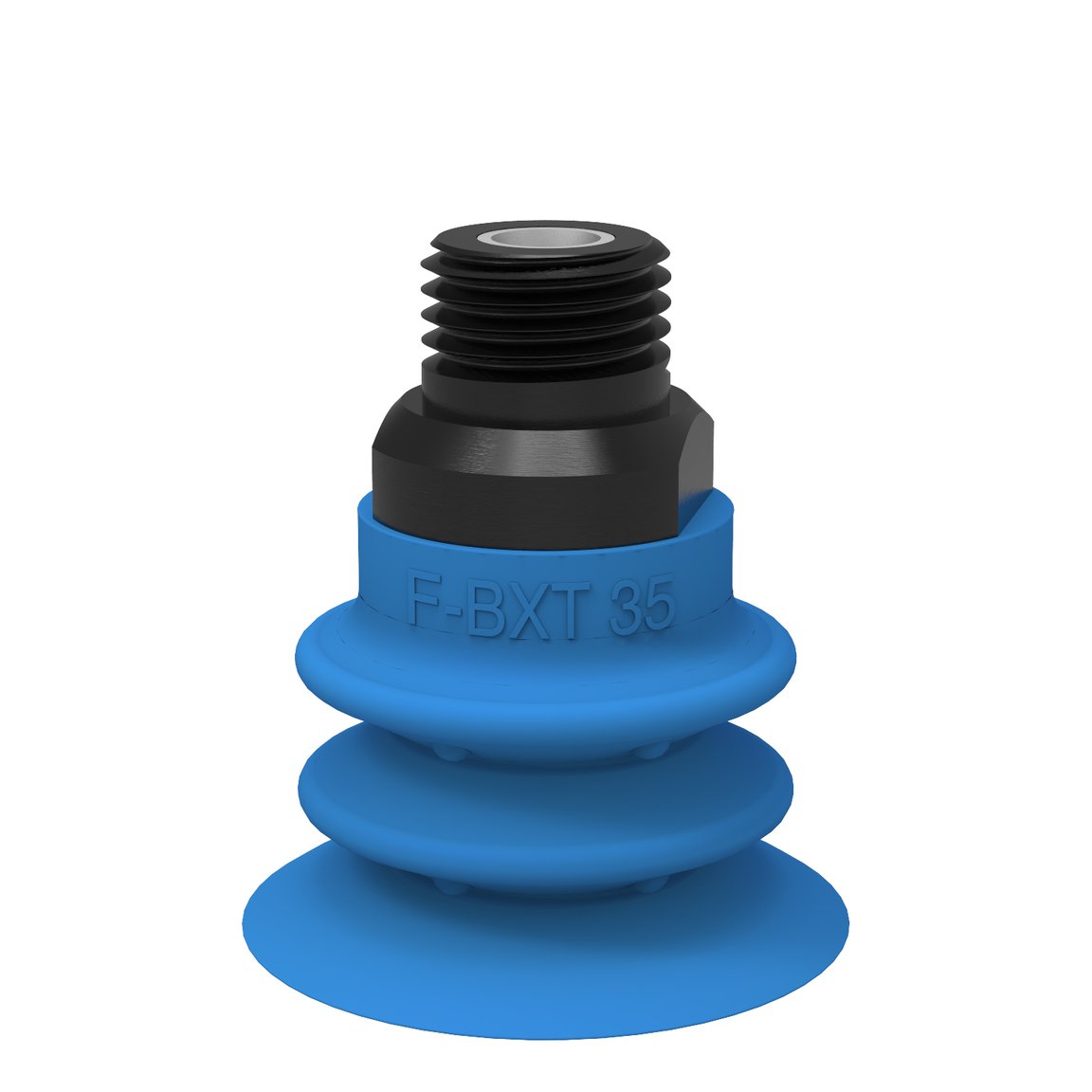

Suction cup F-BXT35 Silicone 1/4" NPT male, with mesh filter
Login or create account to access all our content and features!
Variants
0210670- 0210671
0210672- 0210673
0210674- 0210675
0210676
0210677- 0210678
- 0210679
0210680
0210681- 0210682
0210683- 0210684
0209633
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material.
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- The multi-bellow cup has an extra-long and extra thin lip. As a result, it will pick/lift better on the surfaces that are textured or seeded, such as seeded hard bread & lasagna plates.
- F-BXT 35 is available with Piab’s fittings range used for standard/regular suction cups.
- Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled food product.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), detectable
Suction cup model
F-BXT
Volume
6 cm³
Weight, min.
12 g
Fitting
Material
ASTM 316L
Fitting option
Filter mesh
Fitting size
1/4"
Fitting style
Male
Fitting type
NPT-thread
Dimension
Height
30.5 mm
Outer diameter, actuated
35.46666667 mm
Outer diameter, min.
35 mm
Performance - lifting forces
F-BXT35
10 -kPa
5.7 N
5.7 N
20 -kPa
8.3 N
8.3 N
40 -kPa
11.5 N
11.5 N
Material
Name
Silicone (SIL detectable FCM)
Colour
Blue
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
