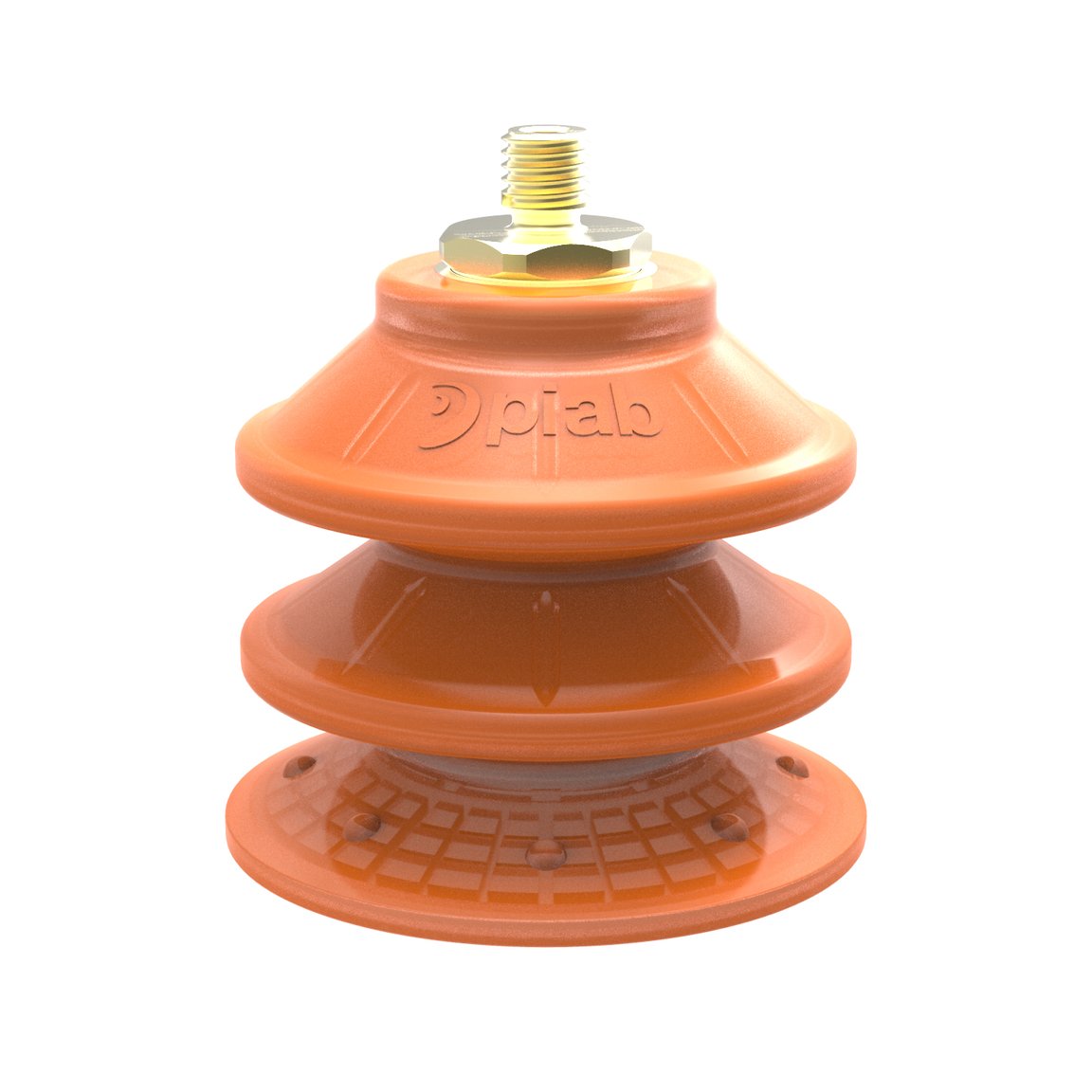

Suction cup BXF75P Polyurethane 60, T-slot with mesh filter - 1
Item number: BXF75P.5Y.T2MR
9 Variants

Suction cup BXF75P Polyurethane 60, T-slot with mesh filter

Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup BXF75P Polyurethane 60, T-slot with mesh filter
    BXF75P.5Y.T2MR

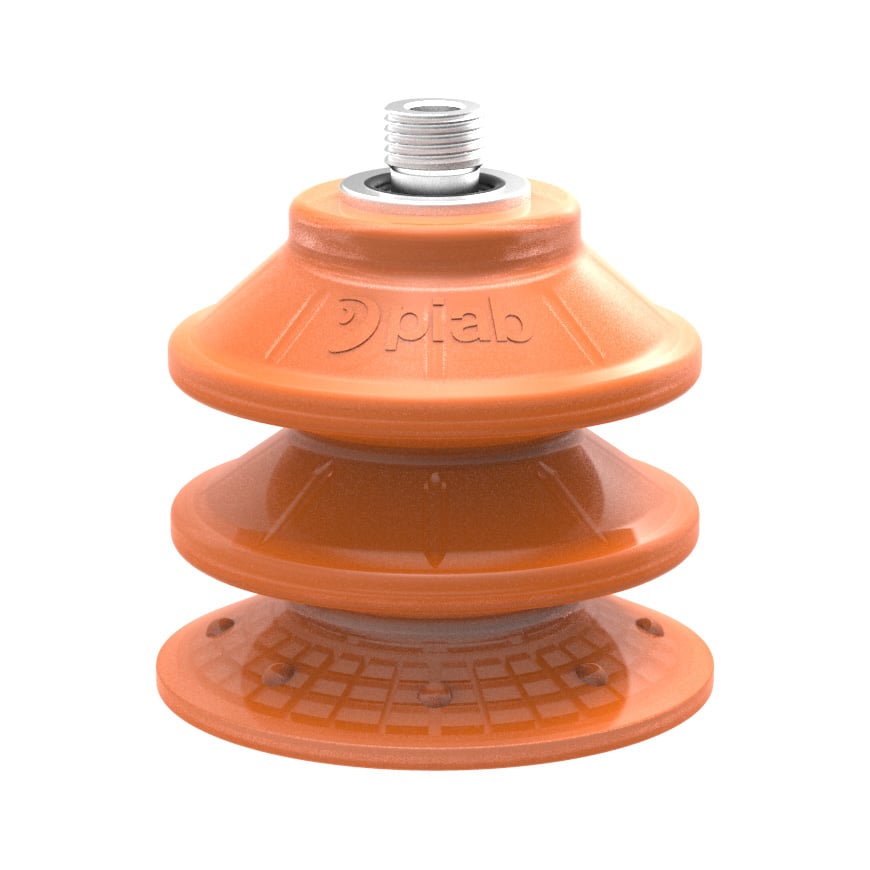

  • Suction cup BXF75P Polyurethane 60, M10×1,5 male with mesh filter
    BXF75P.5Y.M10MR
  • Suction cup BXF75P Polyurethane 60, G3/8" male with mesh filter
    BXF75P.5Y.G69MR

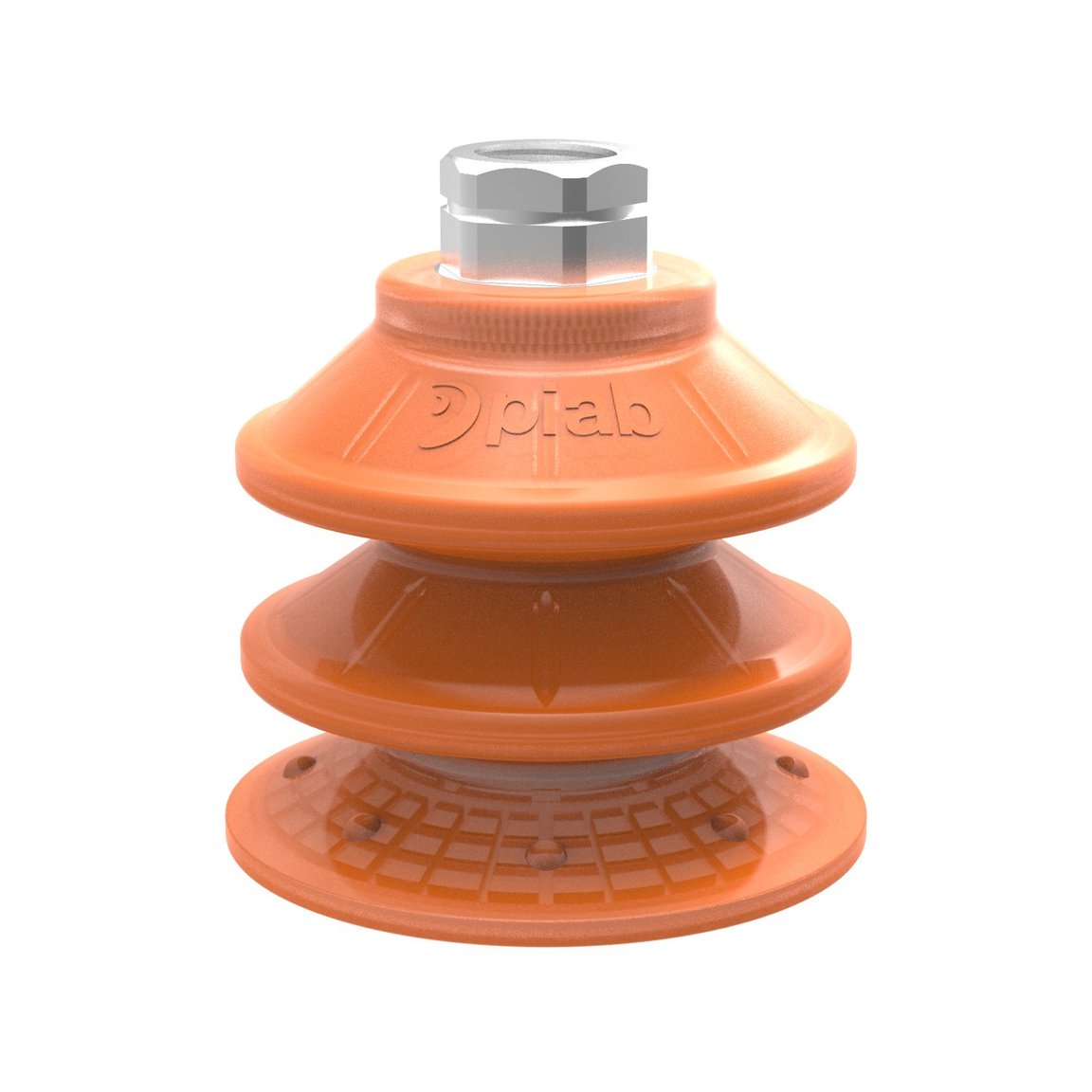

  • Suction cup BXF75P Polyurethane 60, G3/8" female with mesh filter, 17 mm thread
    BXF75P.5Y.G78MR

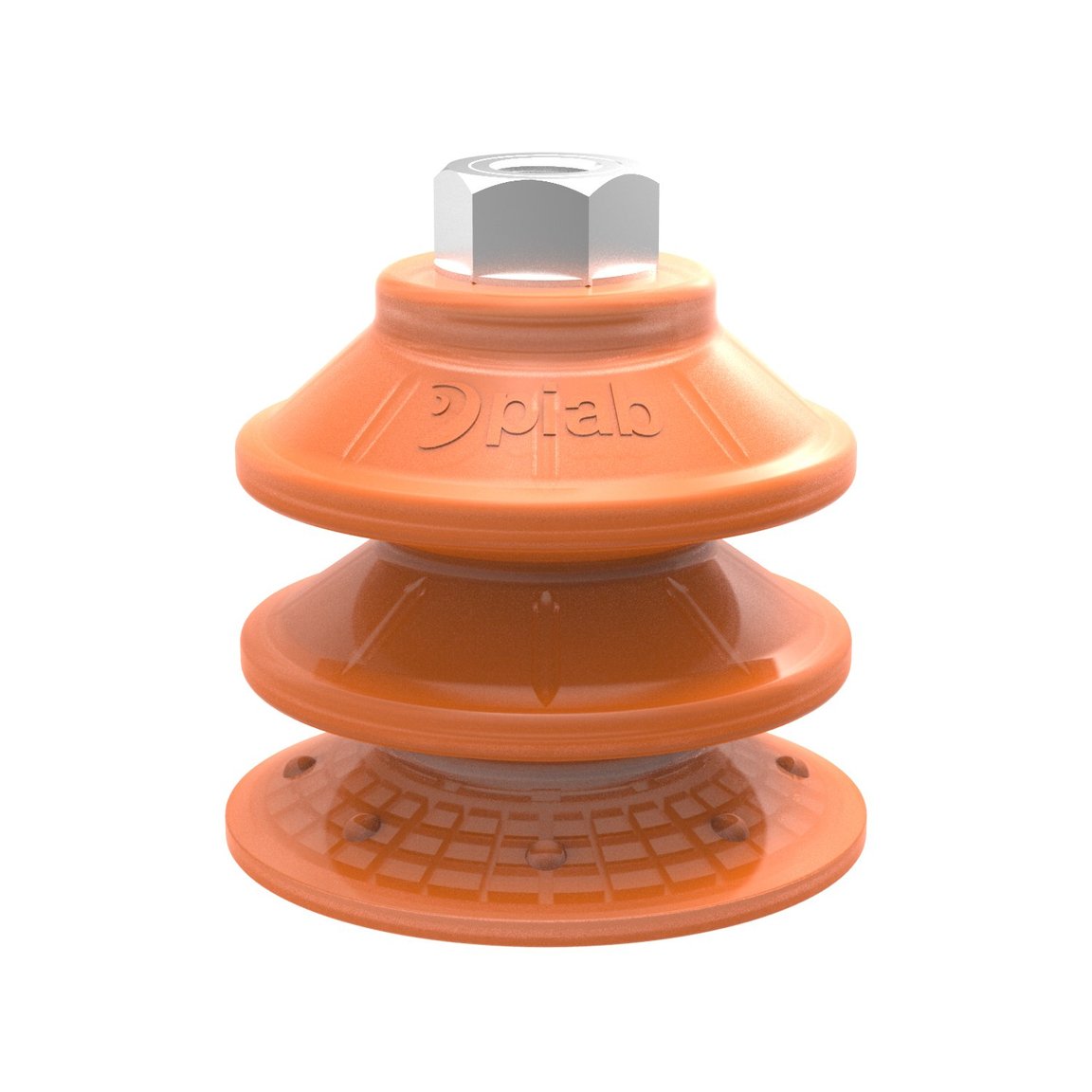

  • Suction cup BXF75P Polyurethane 60, G3/8" female with mesh filter
    BXF75P.5Y.G70MR
  • Suction cup BXF75P Polyurethane 60, G3/8" female plastic thread
    BXF75P.5Y.G68WC
  • Suction cup BXF75P Polyurethane 60, G1/4" male with mesh filter
    BXF75P.5Y.G79MR

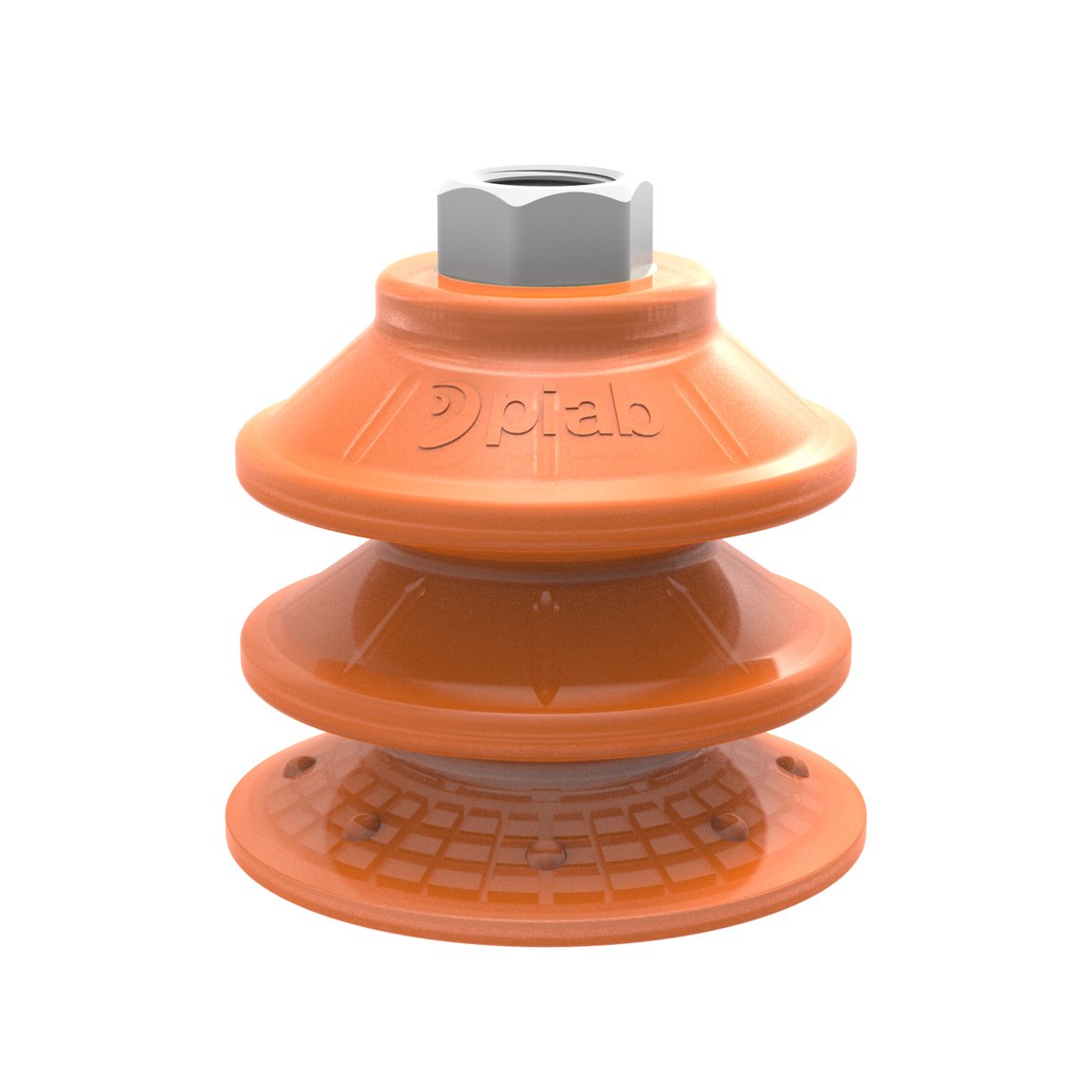

  • Suction cup BXF75P Polyurethane 60, G1/4" female with mesh filter
    BXF75P.5Y.G75MR
  • Suction cup BXF75P Polyurethane 60, 3/8" NPT female with mesh filter
    BXF75P.5Y.N49MR

Features

  • Special designed friction cup with multi bellows for oily metal sheets. Suitable for application where great level compensation is needed such as de-stacking sheets from magazines (press-line) and picking car body parts from racks.
  • Very low vacuum level needed to fully compress the extra-long bellows causes the cup not to push away parts from position.
  • The "BXF" design is suitable for flat as well as uneven/curved surfaces.
  • Internal friction pattern on the lip can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • DURAFLEX® is a material that features the elasticity of rubber and wear resistance of polyurethane. The material has a fantastic elastic memory, even after hundreds of thousand cycles.
