Item number: 0207079
9 Variants

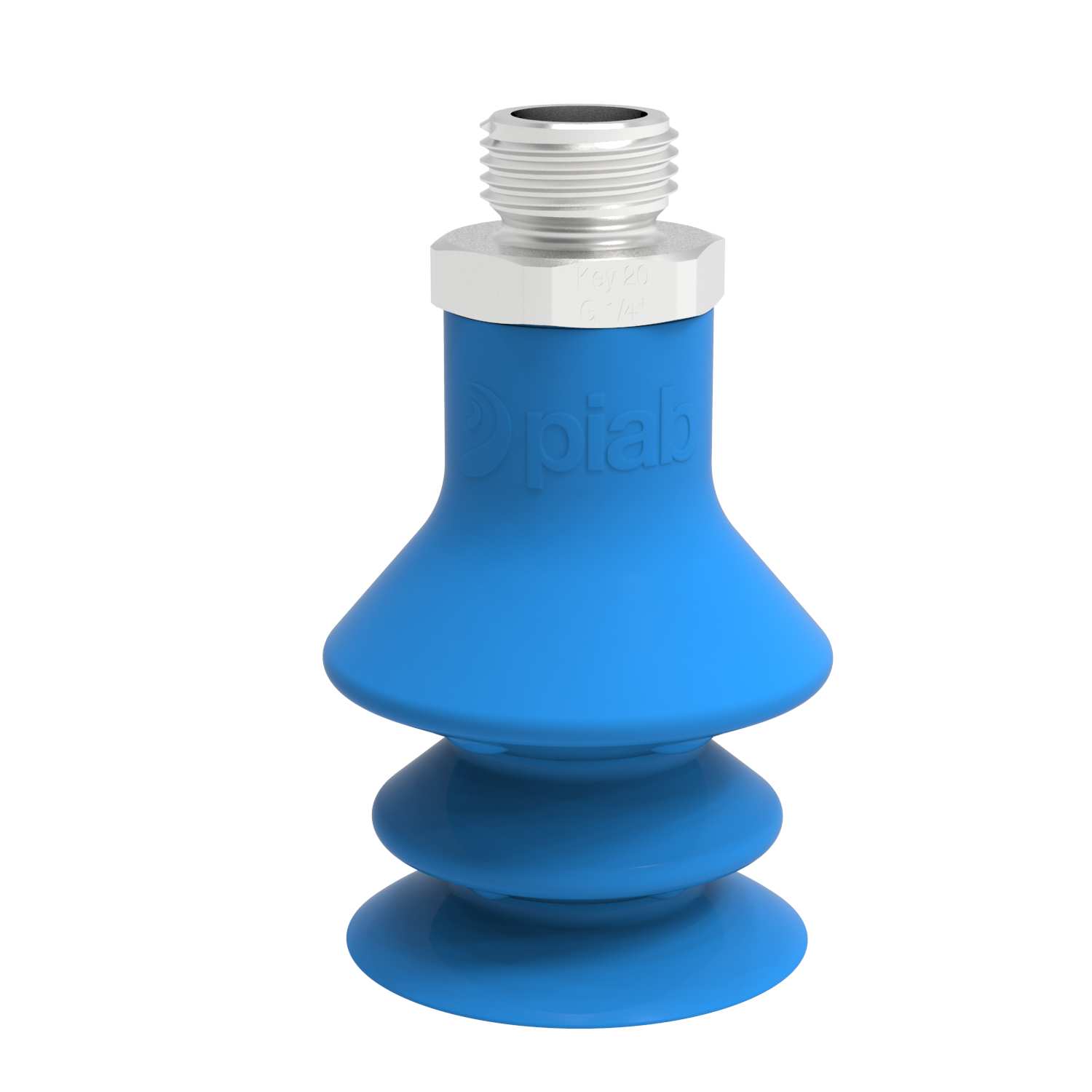

Suction cup F-BX35 Silicone G1/4" male SS, detectable, FCM
Login or create account to access all our content and features!
Variants
0206206
0207079
0207080
0207081
0207082
0207083
0207084
0207085
0207086
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- Suitable for frozen and raw food.
- Excellent grip on food with irregular surfaces and different heights, even at fast speeds and accelerations
- Available with male threaded food grade, detectable plastic fittings or acid proof stainless steel fittings.
- Easy to clean with hygienic design. No dust/dirt pockets.
- Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled food product
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), detectable
Suction cup model
F-BX
Volume
13.6 cm³
Weight, min.
31.9 g
Fitting
Material
ASTM 316L
Fitting option
None
Fitting size
1/4"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
55 mm
Outer diameter, actuated
36 mm
Outer diameter, min.
36 mm
Mechanical data
Load, torque, max.
13 Nm
Performance - lifting forces
F-BX35
10 -kPa
7.6 N
7.5 N
20 -kPa
12.9 N
9.1 N
40 -kPa
14.2 N
10.3 N
Material
Name
Silicone (SIL detectable FCM)
Colour
Blue
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
