Item number: 0124515
3 Variants

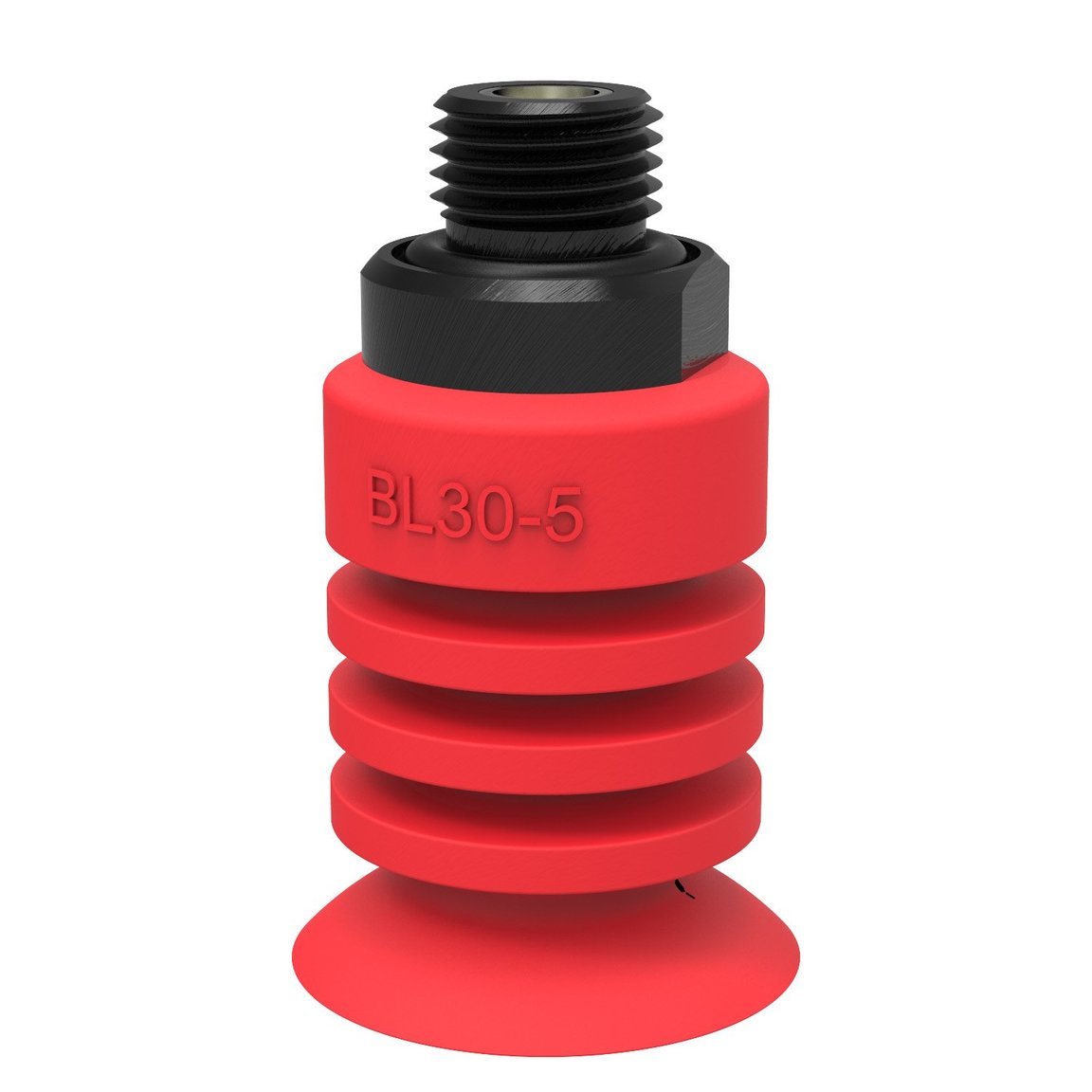

Suction cup BL30-5 Silicone, G1/4" male
Optimized for handling bags with liquid, viscous contents and frozen food. Can also be used for the same applications as for short bellows but can cope with gre...
Read more
Login or create account to access all our content and features!
Variants
0121519
0124515

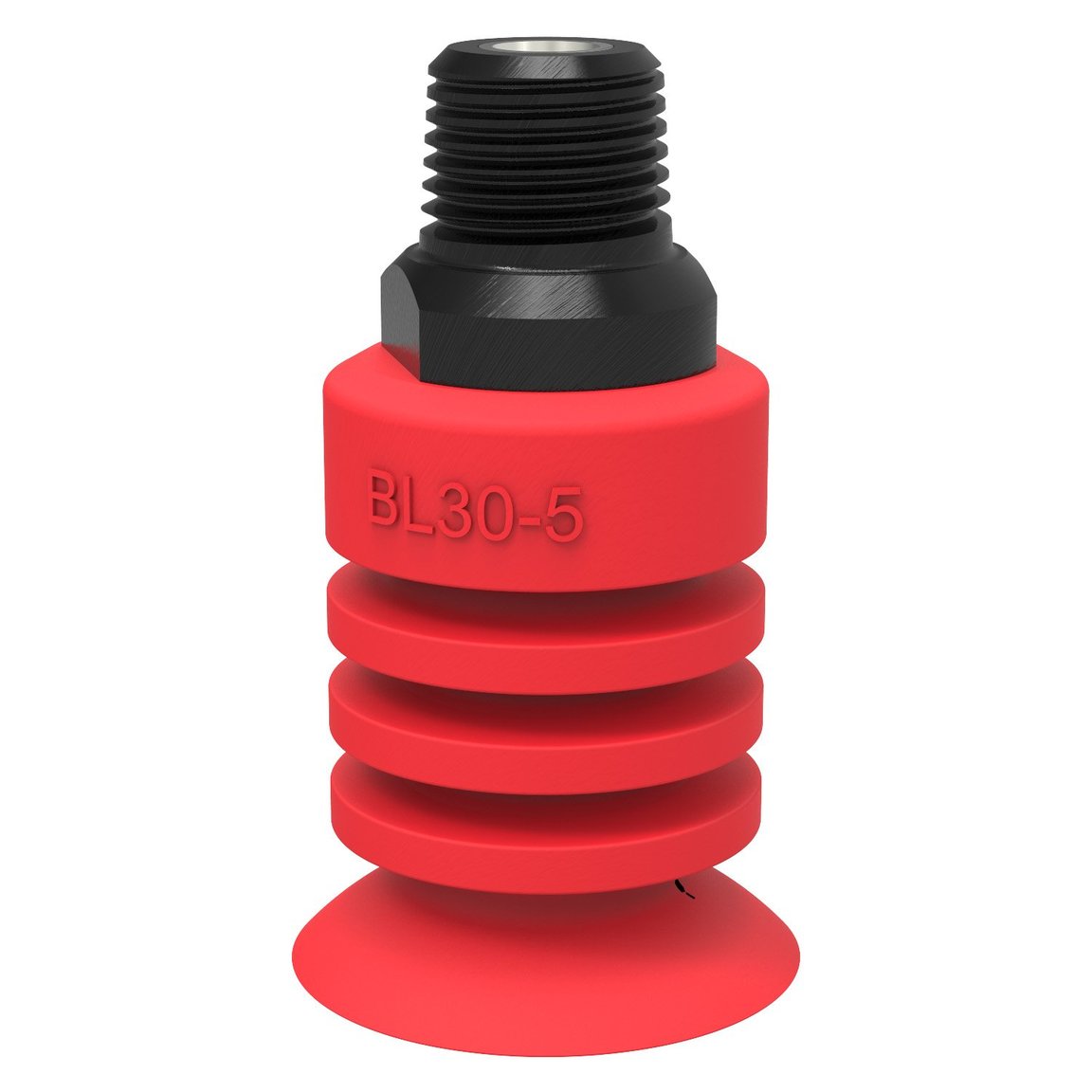

0124516
Features
- High initial flow, with re-enforced bellows and long, thin lip
- Suitable for handling difficult-to-handle bags, e.g., bags filled with liquid, frozen food, and for heavy bags
- Suitable working temperature is -40–200 °C
- Suitable for level compensation
Packaging
- Bag and pouch handling
- Bags, sacks and bundles
General
Material
Silicone (SIL)
Characteristics
Bag handling
Suction cup model
BL-5
Volume
8.55 cm³
Weight, min.
14.5 g
Fitting
Fitting option
None
Fitting size
1/4"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
51.5 mm
Outer diameter, min.
30.5 mm
Performance - lifting forces
BL30-5
20 -kPa
8 N
3 N
60 -kPa
9 N
5.5 N
Material
Name
Silicone, SIL 40° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
