Item number: 0114848
3 Variants

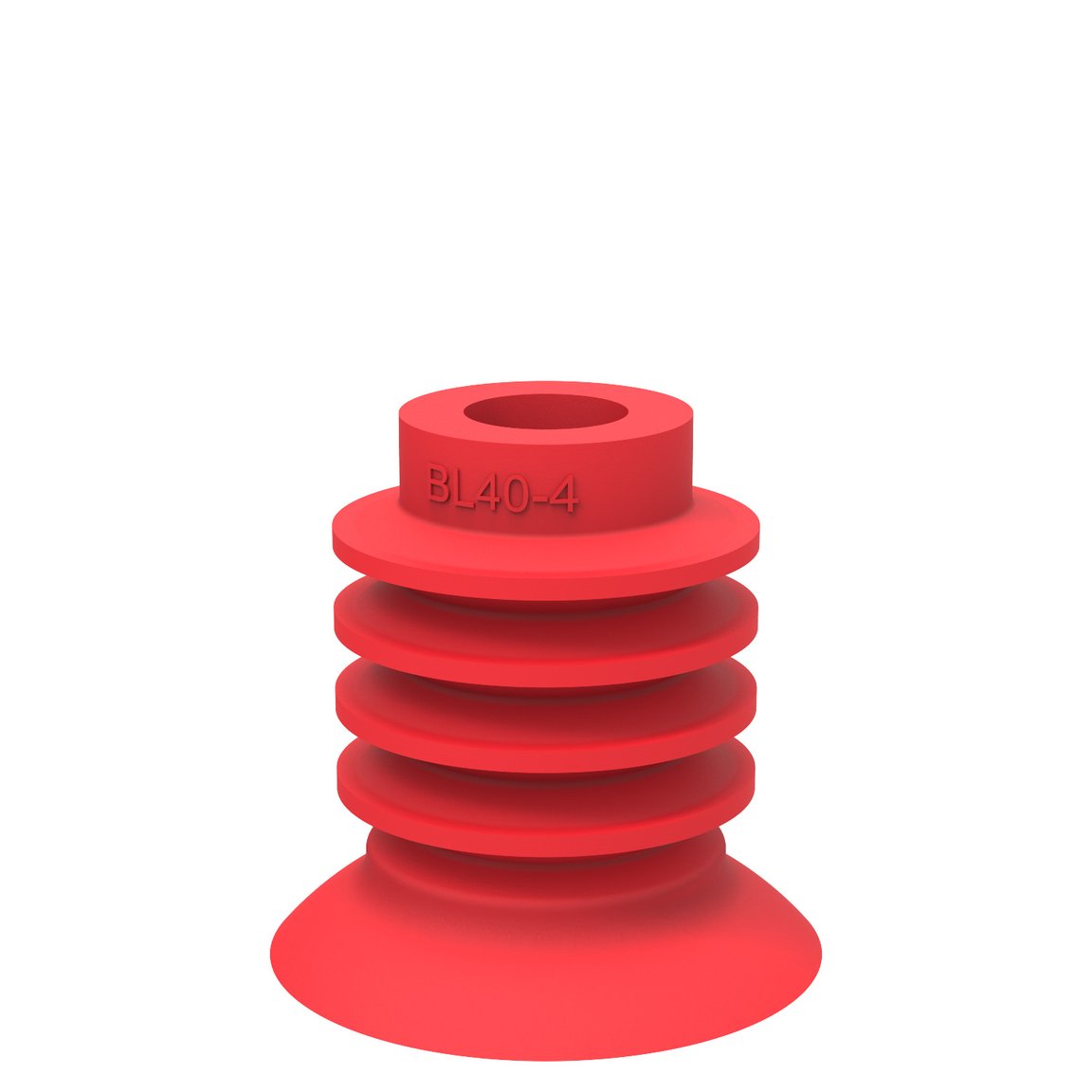

Suction cup BL40-4 Silicone
Optimized for bags with fragile contents and food. Can also be used for the same applications as for short bellows but can cope with greater differences in leve...
Read more
Login or create account to access all our content and features!
Variants
0114848
0116993
0116996
Features
- Long and flexible bellow
- Long and thin lip
- High flow fitting
- Working area = lip diameter
- Wide temperature range (-40°C to +200°C)
Packaging
- Bag and pouch handling
- Bags, sacks and bundles
General
Material
Silicone (SIL)
Characteristics
Bag handling
Suction cup model
BL-4
Volume
15 cm³
Weight, min.
8 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
39.9 mm
Outer diameter, min.
40.1 mm
Performance - lifting forces
BL40-4
20 -kPa
10 N
4.7 N
60 -kPa
15 N
13.3 N
90 -kPa
22 N
19.7 N
Material
Name
Silicone, SIL 40° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
