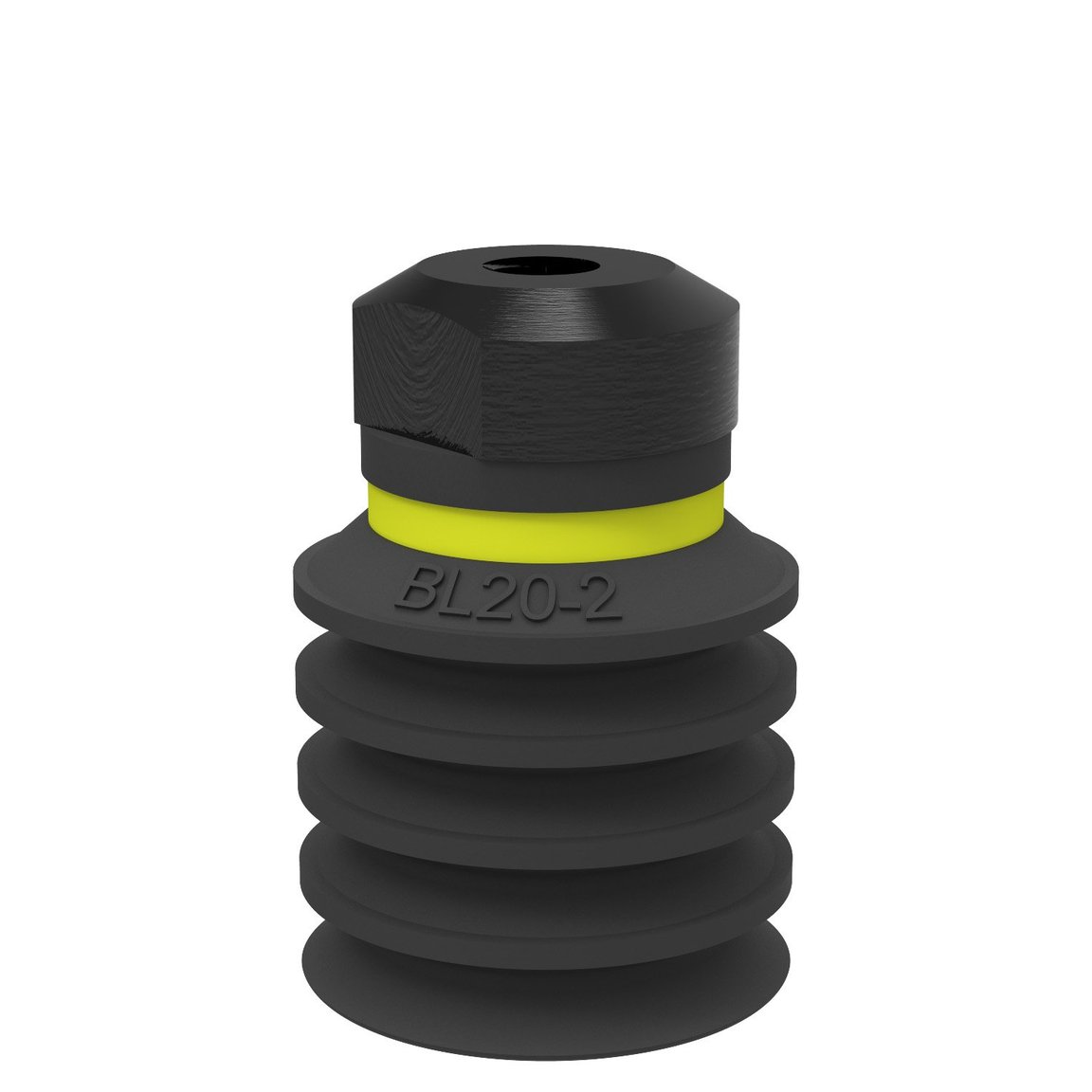

Suction cup BL20-2 Chloroprene, M5 female
The same applications as for short bellows but can cope with greater differences in levels due to the longer lifting movement. Not suitable for use with deep va...
Read more
Login or create account to access all our content and features!
Variants
0101115
0101116
0101193
0101194
0101195
0101196
0101197
0101198
0101200
0101202
0101204
0101205
0101206
0101207
0101208
0101209
0101210
0101211
0109844
0110339
0201132
9914276
9914277
9914278
9914279
9914280
9914281
9914282
9914283
9914284
9914556
9914557
Features
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Less suitable when the lifting force is parallel to the surface of the object.
Packaging
- Bag and pouch handling
- Bags, sacks and bundles
General
Material
Chloroprene (CR)
Characteristics
Bag handling
Suction cup model
BL-2
Volume
4 cm³
Weight, min.
3 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
Female
Fitting type
M-thread
Dimension
Height
28.9 mm
Outer diameter, min.
20 mm
Performance - lifting forces
BL20-2 reinforcement ring
20 -kPa
3.3 N
3.7 N
60 -kPa
8.2 N
6 N
Performance - lifting forces
BL20-2
20 -kPa
2.2 N
0 N
60 -kPa
7 N
0 N
Material
Name
Chloroprene (CR) 65° Shore A
Colour
Black
Temperature
-40 - 110 °C
Hardness
65 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
