Item number: 0128159
28 Variants

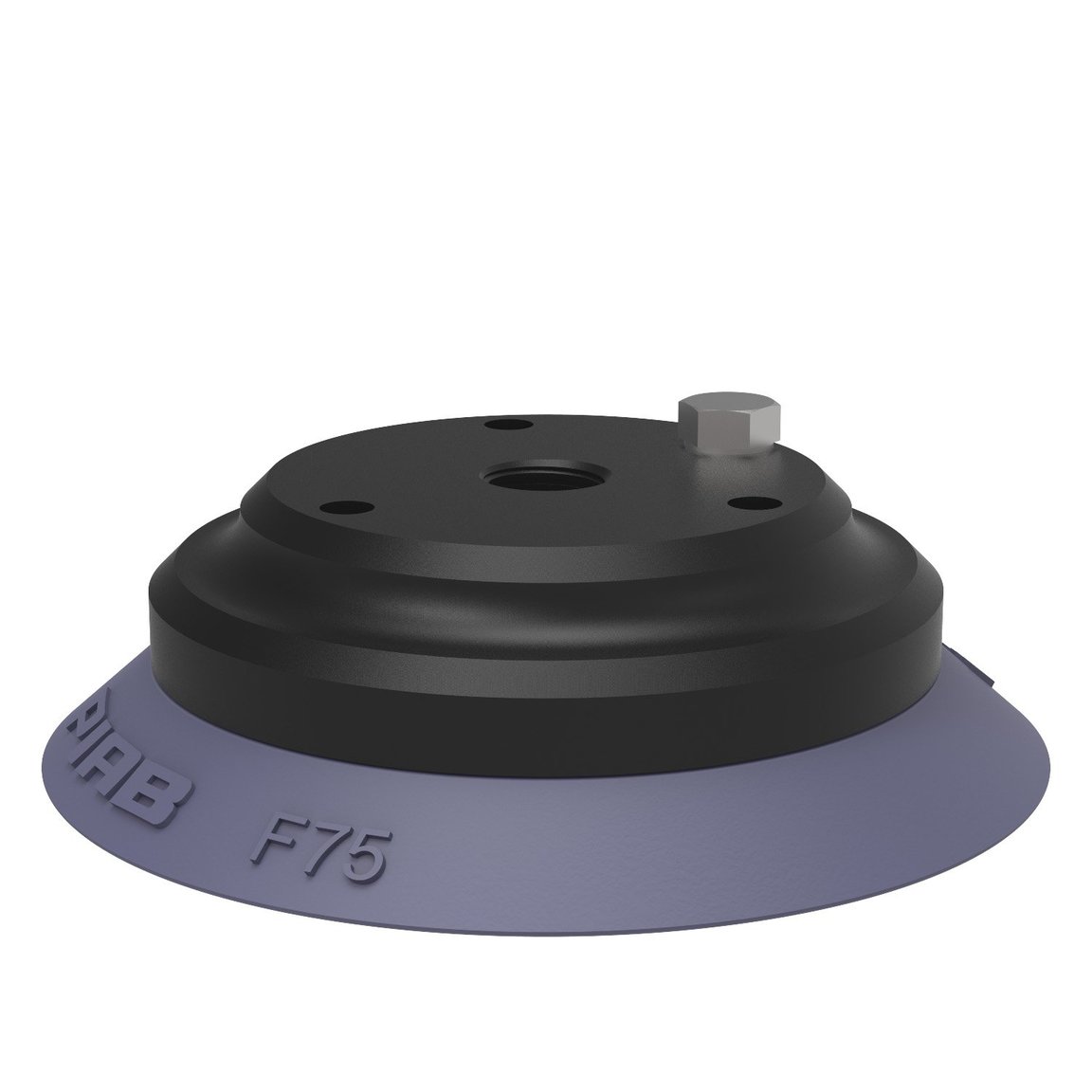

Suction cup F75 HNBR, 1/4" NPT female Al, with mesh filter & 10-32 addl. conn.
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the c...
Read more
Login or create account to access all our content and features!
Variants
3150131S
0101866
0101867

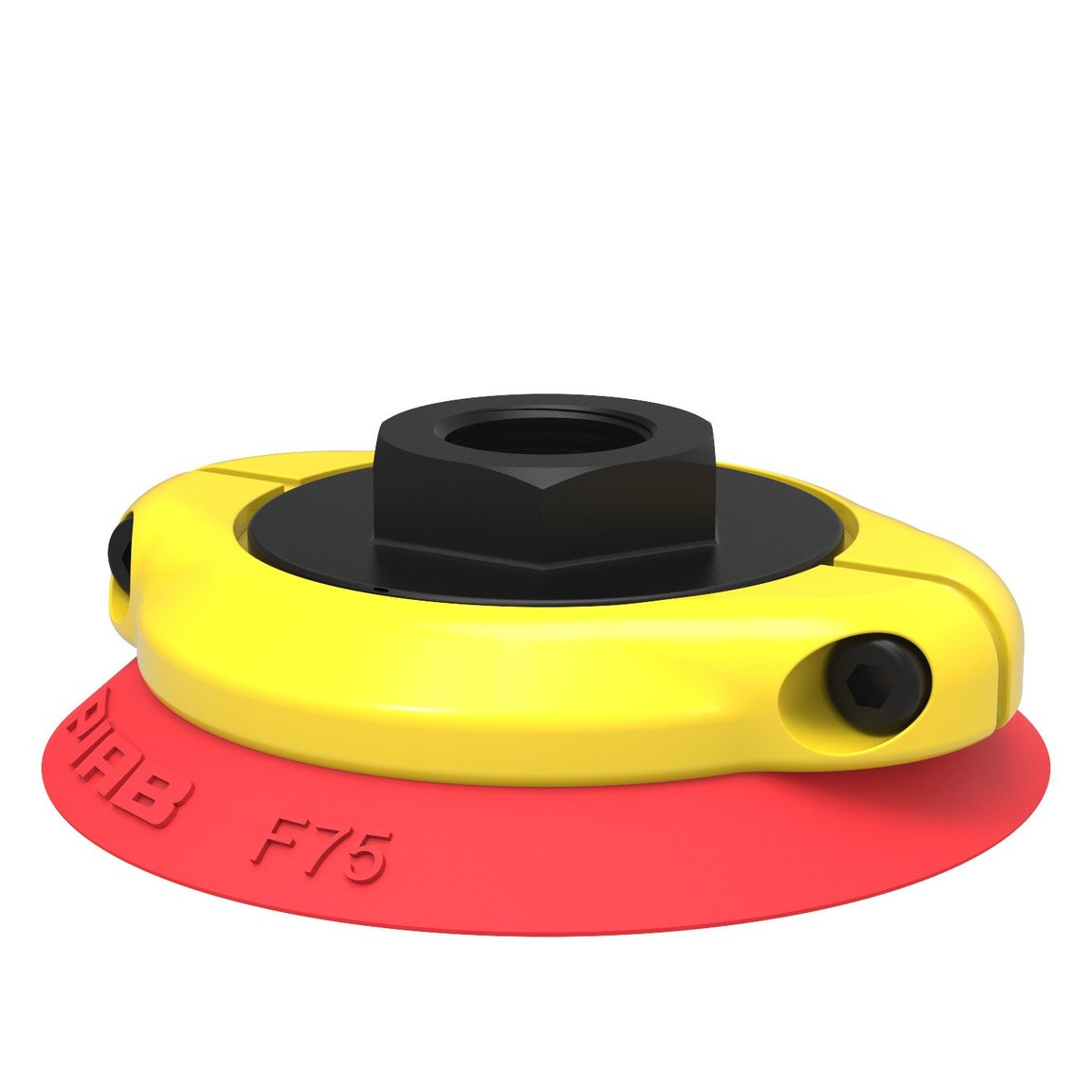

0101868

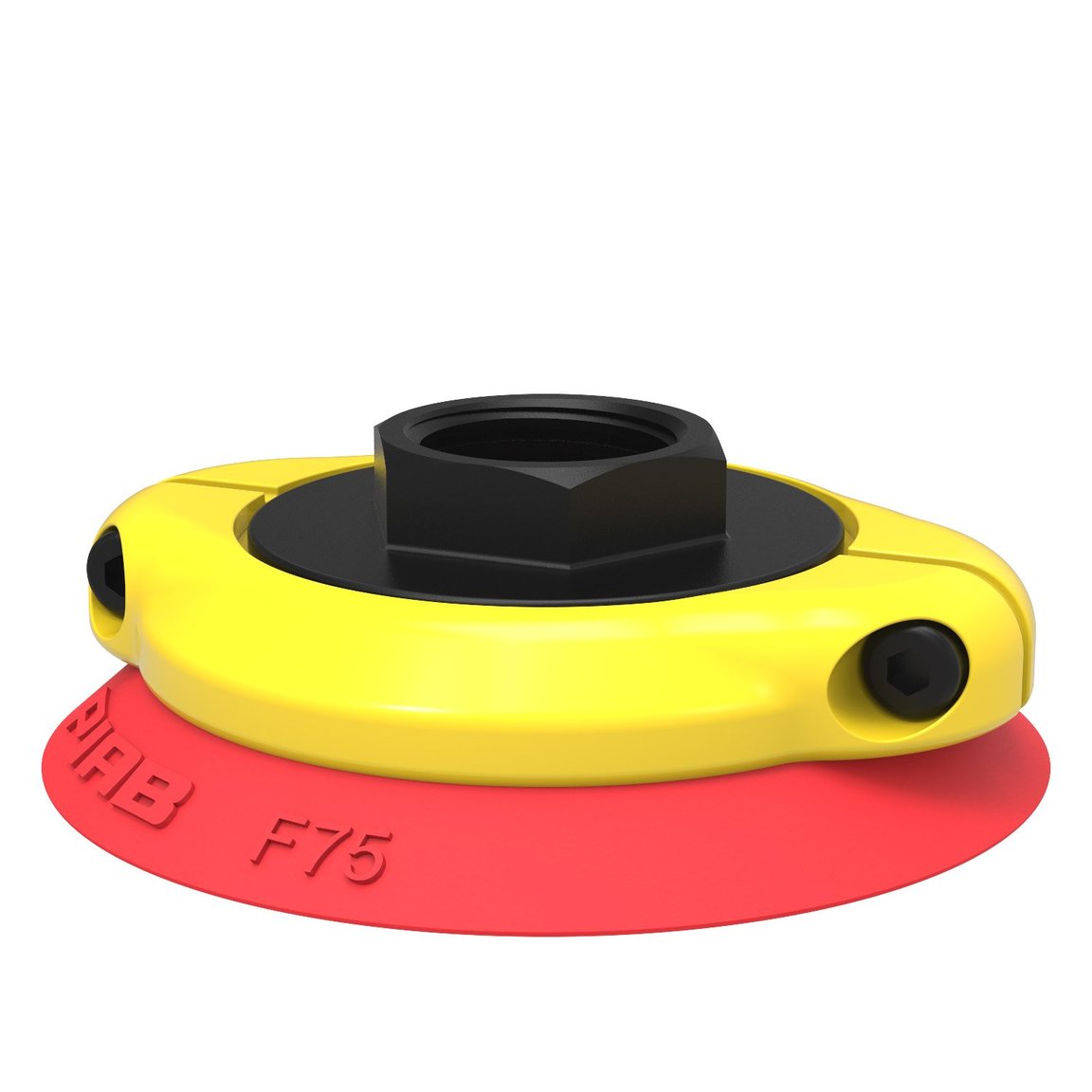

0101869
0101870
0101872
0128149
0128150

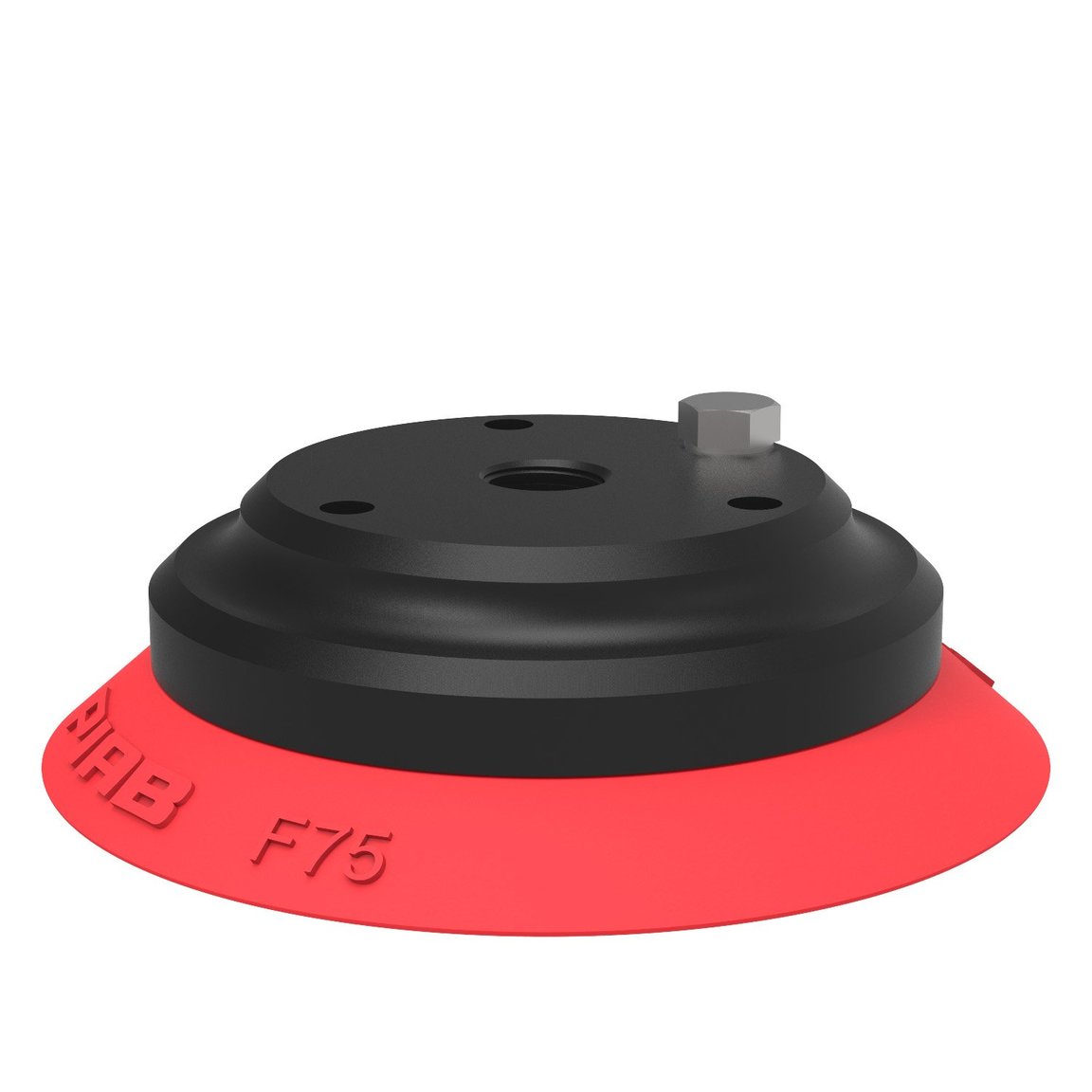

0128577
3150131P
0101873

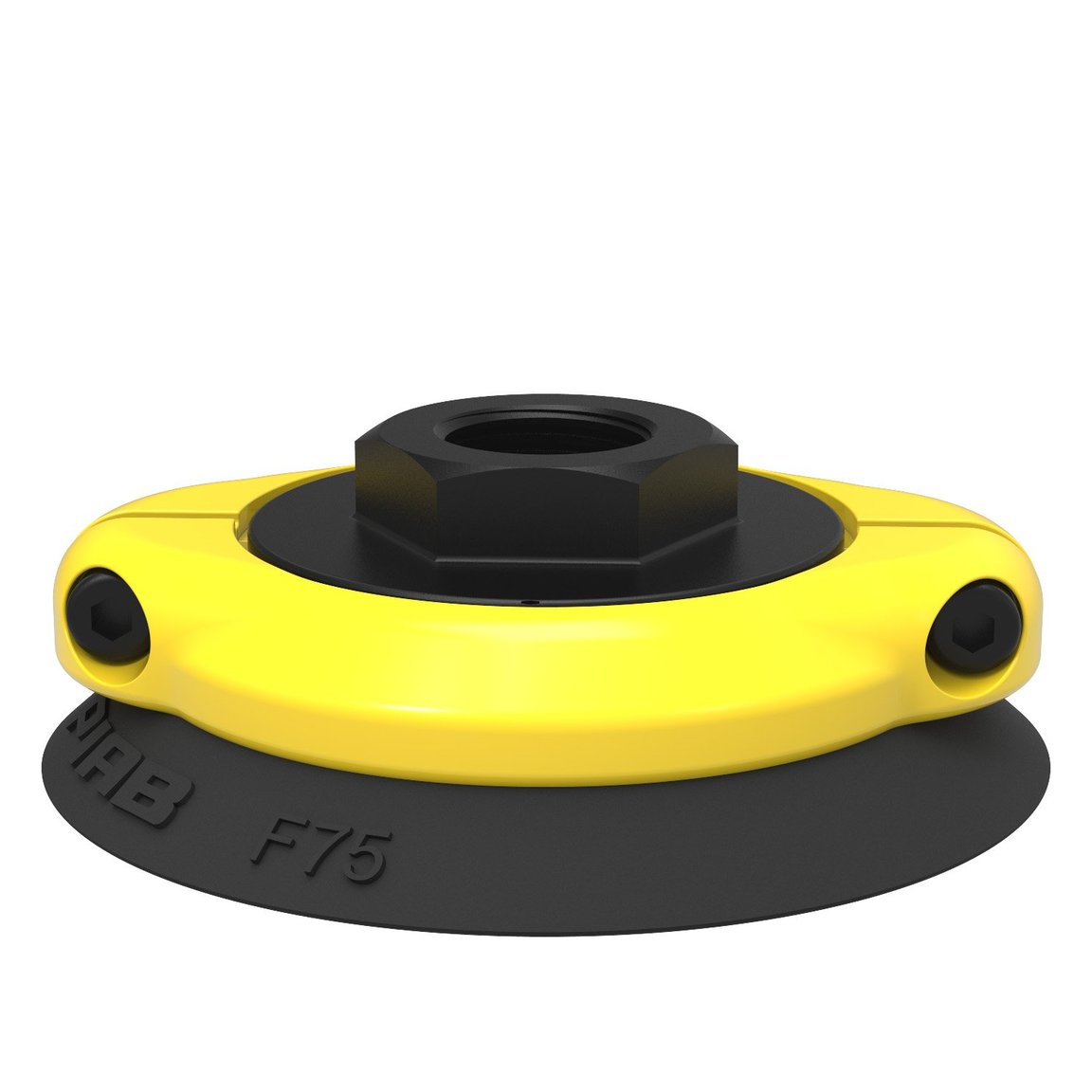

0101874

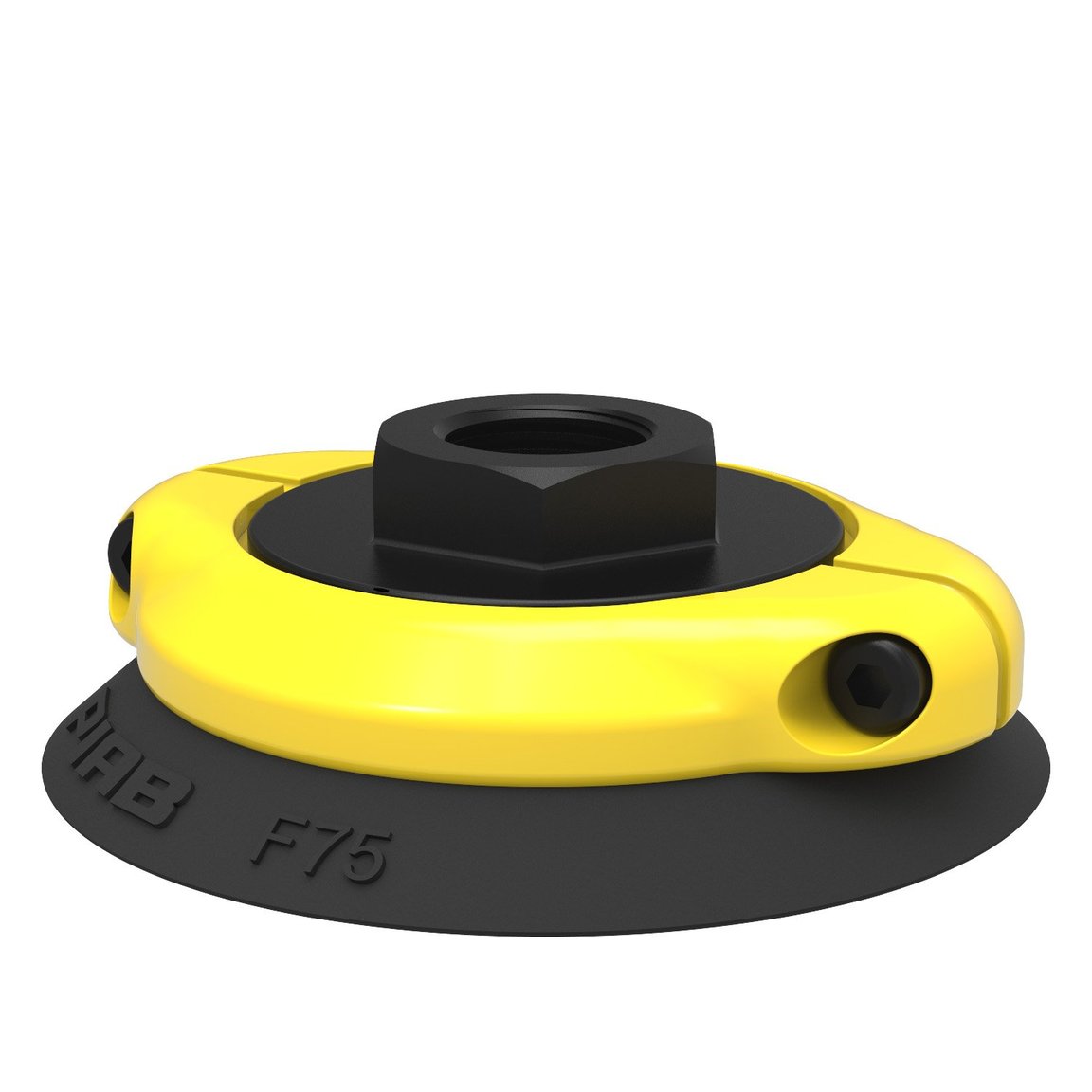

0101875
0101876
0101877
0101879
0128152
0128153

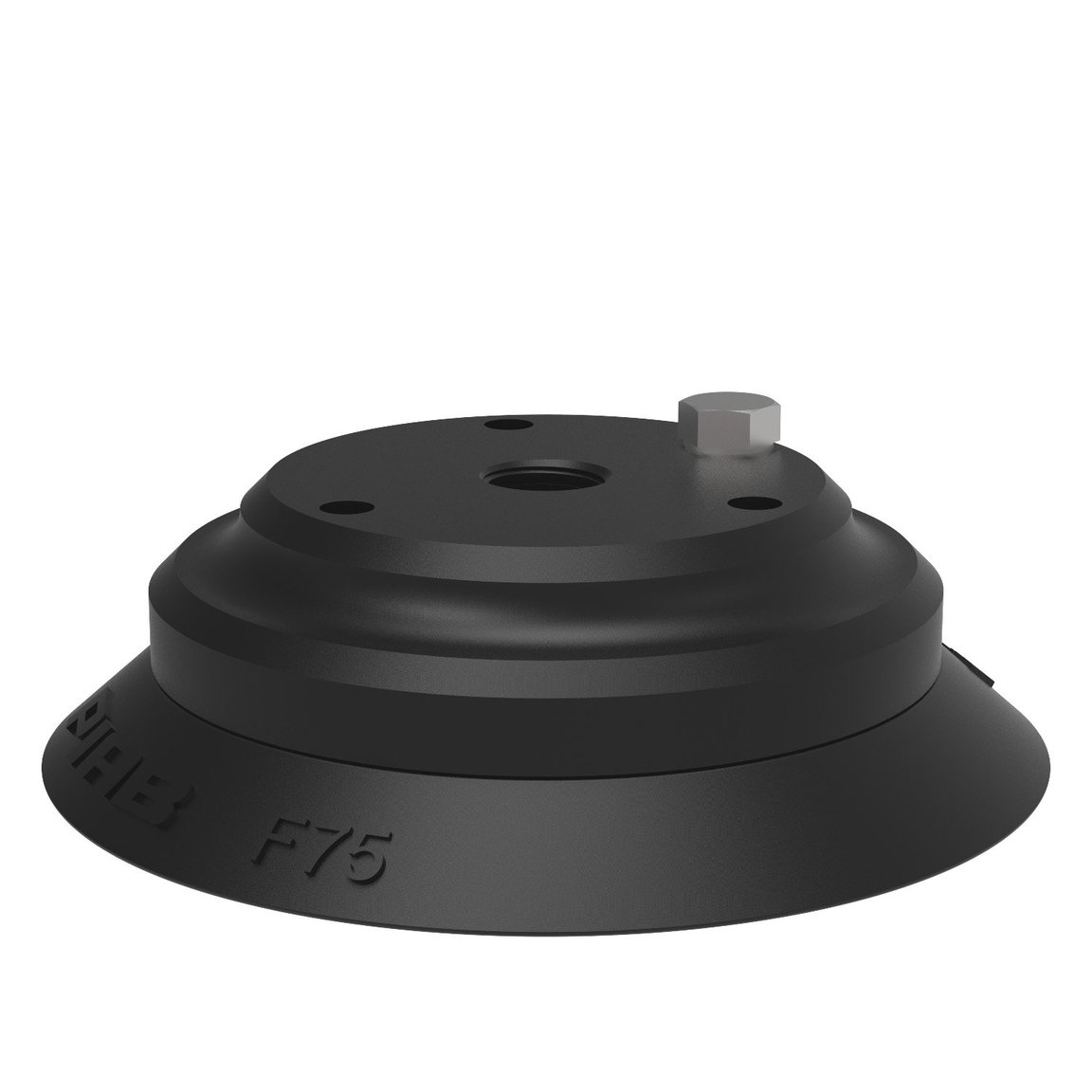

0128154
3150131T
0108184
0108185
0108186
0108187
0128156
0128158
0128159
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
HNBR
Characteristics
Dry sheet metal , Plastic injection molded parts , Glass handling , High/low temp cup (plastic) , Mark free
Suction cup model
F
Volume
20 cm³
Weight, min.
23 g
Fitting
Fitting option
None
Fitting size
1/4"
Fitting style
Female
Fitting type
NPT-thread
Dimension
Height
21 mm
Outer diameter, min.
77 mm
Performance - lifting forces
F75
20 -kPa
80 N
60 N
60 -kPa
200 N
110 N
90 -kPa
270 N
140 N
Material
Name
HNBR 75° Shore A
Colour
BlueGrey
Temperature
-30 - 140 °C
Hardness
75 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
