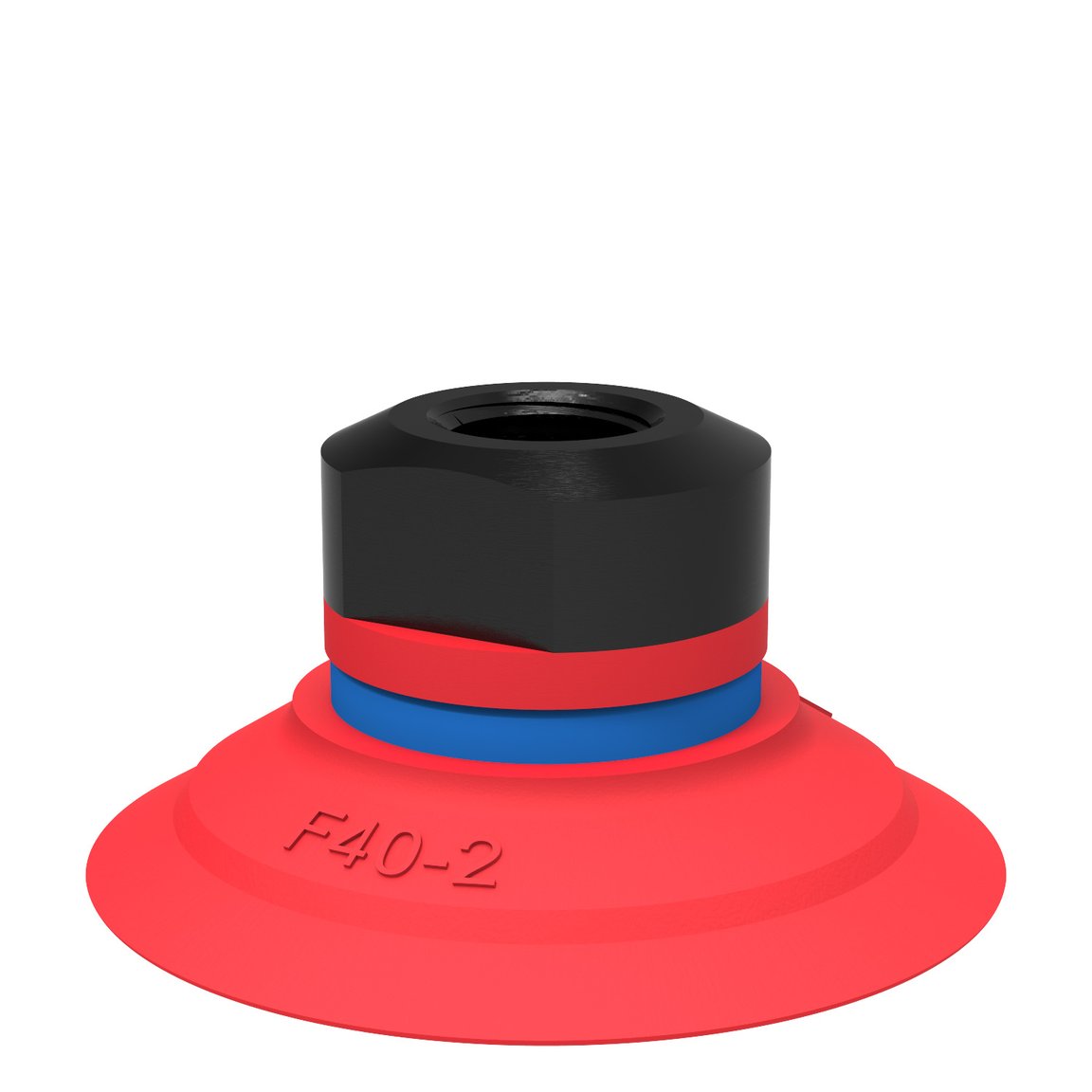

Suction cup F40-2 Silicone, 1/8" NPSF female
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the c...
Read more
Login or create account to access all our content and features!
Variants
0101135
0101136
0101547
0101548
0101549
0101550
0101551
0101552
0101553
0101554
0101556
0101566
0101567
0101568
0101569
0101570
0101571
0101572
0101573
0101574
0101575
0101576
0109847
0110345
3150050P
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal
Suction cup model
F
Volume
4.8 cm³
Weight, min.
5.5 g
Fitting
Fitting option
None
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
21 mm
Outer diameter, min.
42 mm
Performance - lifting forces
F40-2
20 -kPa
20 N
15 N
60 -kPa
40 N
25 N
90 -kPa
50 N
30 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
