Item number: 0101301
20 Variants

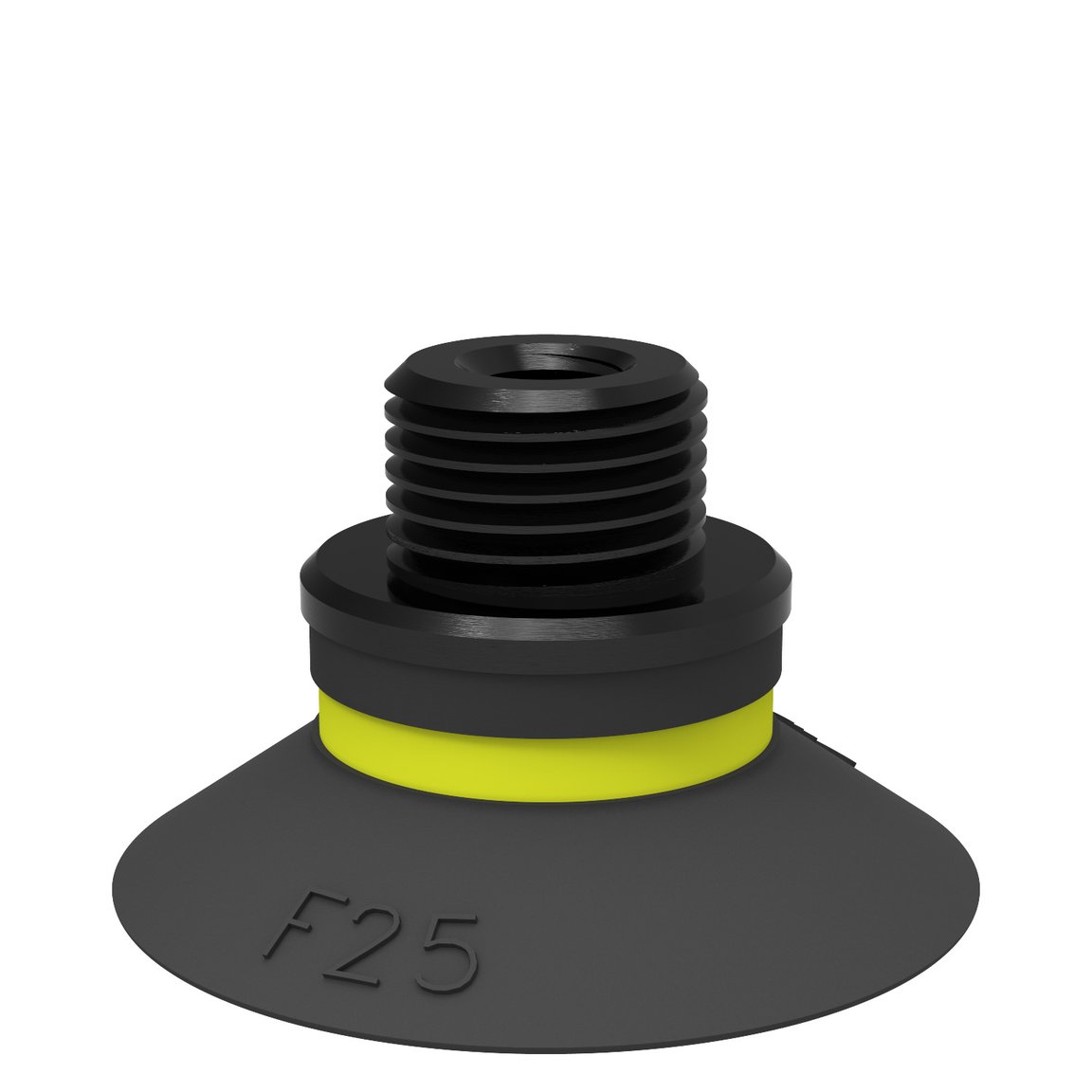

Suction cup F25 Chloroprene, G1/8" male/M5 female, with dual flow control valve
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the c...
Read more
Login or create account to access all our content and features!
Variants
0101131
0101293
0101299
0101295
0101297
0101301
0109842
0101292
0101296
0101294
0101132
0101304
0101306
0101308
0101312
0110335
0101303
0101307
0101311
0101305
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Logistics
Packaging
General
Material
Chloroprene (CR)
Characteristics
Dry sheet metal
Leakage flow, max.
0.06 Nl/s
Suction cup model
F
Valve restriction
0.7 mm
Volume
1.1 cm³
Weight, min.
1.8 g
Fitting
Fitting option
Dual flow control valve
Fitting size
1/8" , M5
Fitting style
Female/Male
Fitting type
G-thread , M-thread
Dimension
Height
16.5 mm
Outer diameter, actuated
27.9 mm
Outer diameter, min.
27 mm
Performance
Restricted vacuum flow
0.7 Nl/s
Performance - lifting forces
F25
20 -kPa
9 N
8 N
60 -kPa
19.5 N
9 N
90 -kPa
25 N
10 N
Material
Name
Chloroprene (CR) 50° Shore A
Colour
Black
Temperature
-40 - 110 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
