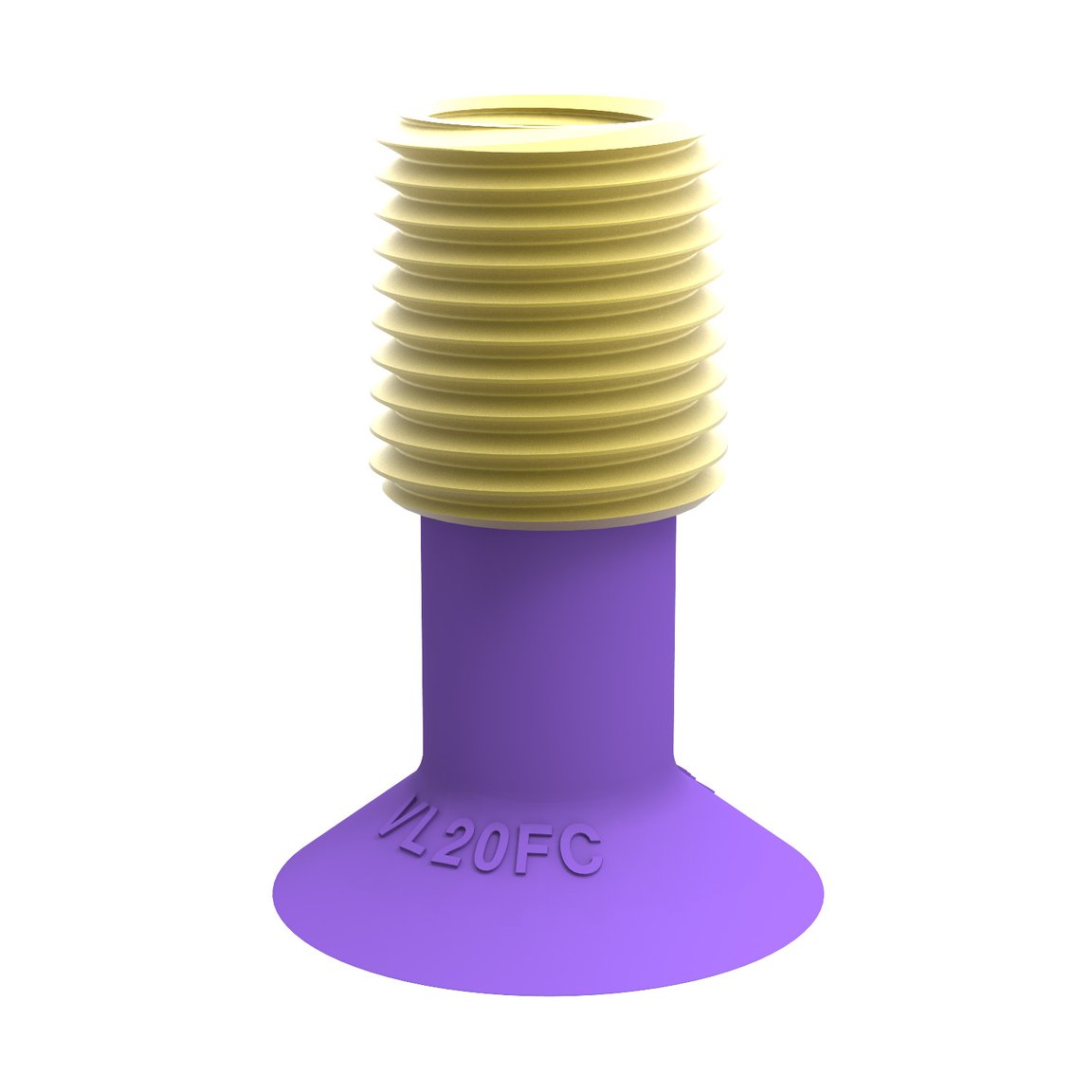

Suction cup VL20FC, 1/4"NPT-1/8"NPSF - 1
Item number: 0202679
35 Variants

Suction cup VL20FC, 1/4"NPT-1/8"NPSF

Value Line suction cups are suitable for standard/basic applications and the suction cups show good performance at a value price. The flat concave shaped cup has long thin lips for good sealing on slightly corrugated surfaces e.g. corrugated cardboard. The products are available globally with off-the-shelf deliveries.
Login or create account to access all our content and features!
DownloadsShare via email

Size

20 mm
Item number: 0202679
25 mm
Item number: 0202693
30 mm
Item number: 0202705
40 mm
Item number: 0202716
50 mm
Item number: 0202728
60 mm
Item number: 0202740
75 mm
Item number: 0202752

Fitting

Without fitting None
Item number: 0202096
G 1/8" Male, M5 FemaleBrass
Item number: 0202652
1/8" NPT Male, M5 FemaleBrass
Item number: 0202678
G 1/4" Male, G 1/8" FemaleBrass
Item number: 0202653
G 3/8" Male, G 1/4" FemaleBrass
Item number: 0202715
1/4" NPT Male, 1/8" NPSF FemaleBrass
Item number: 0202679
1/4" NPSF Female, 3/8" NPT MaleBrass
Item number: 0202717
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Suitable for flat or slightly corrugated or curved surfaces
  • Good stability and little inherent movement
  • Recommended when the lifting force is parallel to the surface of the object
  • Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel
  • Volume discounts available for big packs from 30-99 pieces with an even larger discount for big packs of 100 pieces and above
  • PVC-free recycable material
