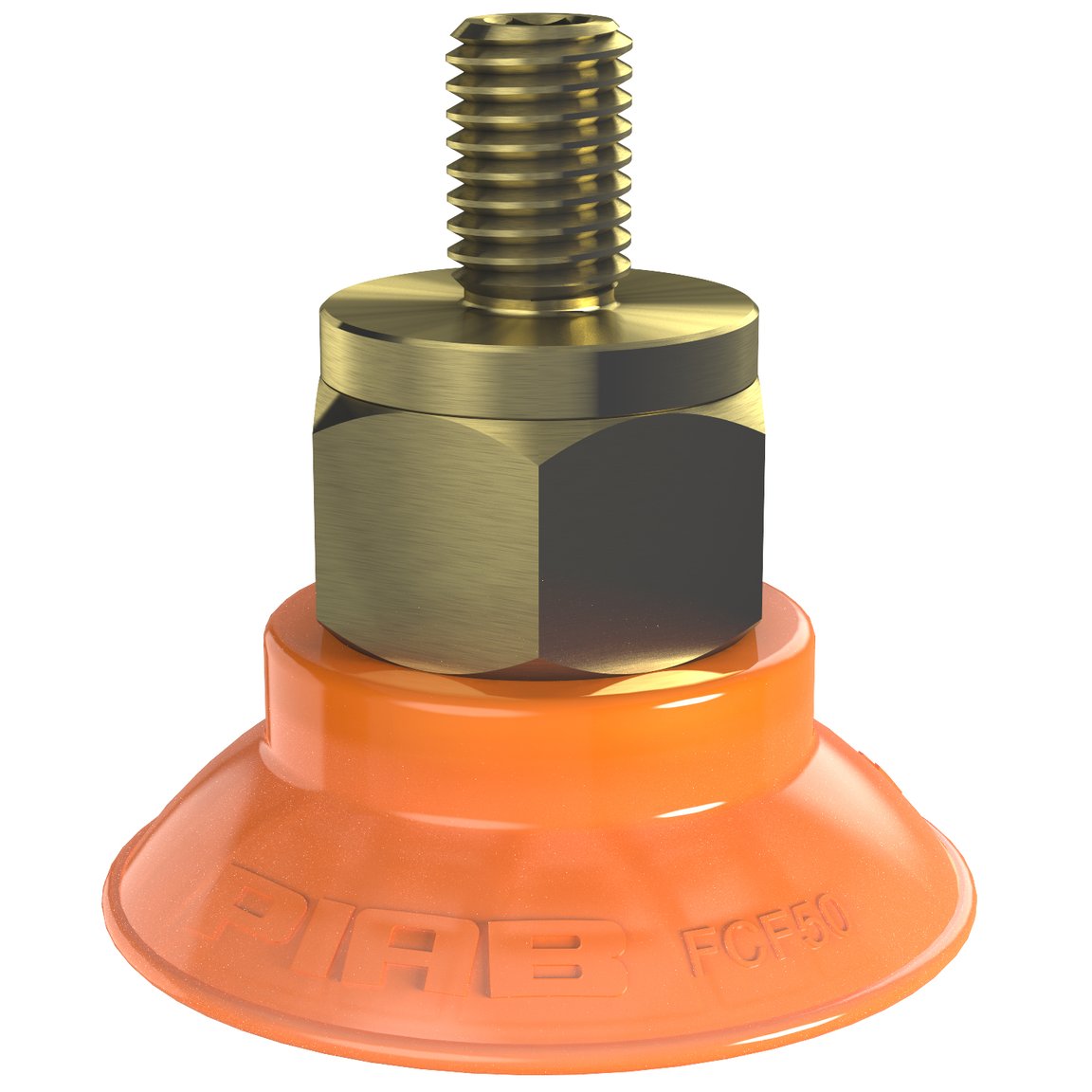

Suction cup FCF50P Polyurethane 55/60, M10x1.5 male
The FCF-P design is suitable for oily surfaces, slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines. The...
Read more
Login or create account to access all our content and features!
Variants
0118985
0118986
0121432
0122283
0126368
0200685
0206606
0206929
0206936
0242508
Features
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0.1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The "FCF" design is suitable for slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines.
- The suction cups have support cleats that prevent thin objects from being disfigured.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
FCF
Volume
10 cm³
Weight
31 - 67 g
Fitting
Fitting option
None
Fitting size
M10×1.5
Fitting style
Male
Fitting type
M-thread
Dimension
Height
49.94 mm
Outer diameter, actuated
53.5 mm
Outer diameter, min.
50 mm
Performance - lifting forces
FCF50P Oily steel plate
60 -kPa
72 N
52 N
90 -kPa
101 N
70 N
Performance - lifting forces
FCF50P Dry metal sheet
60 -kPa
78 N
77 N
90 -kPa
106 N
105 N
Material
Name
Polyurethane (PU55)
Colour
Orange
Temperature
10 - 50 °C
Hardness
55 °Shore A
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
