Item number: 9909677
4 Variants

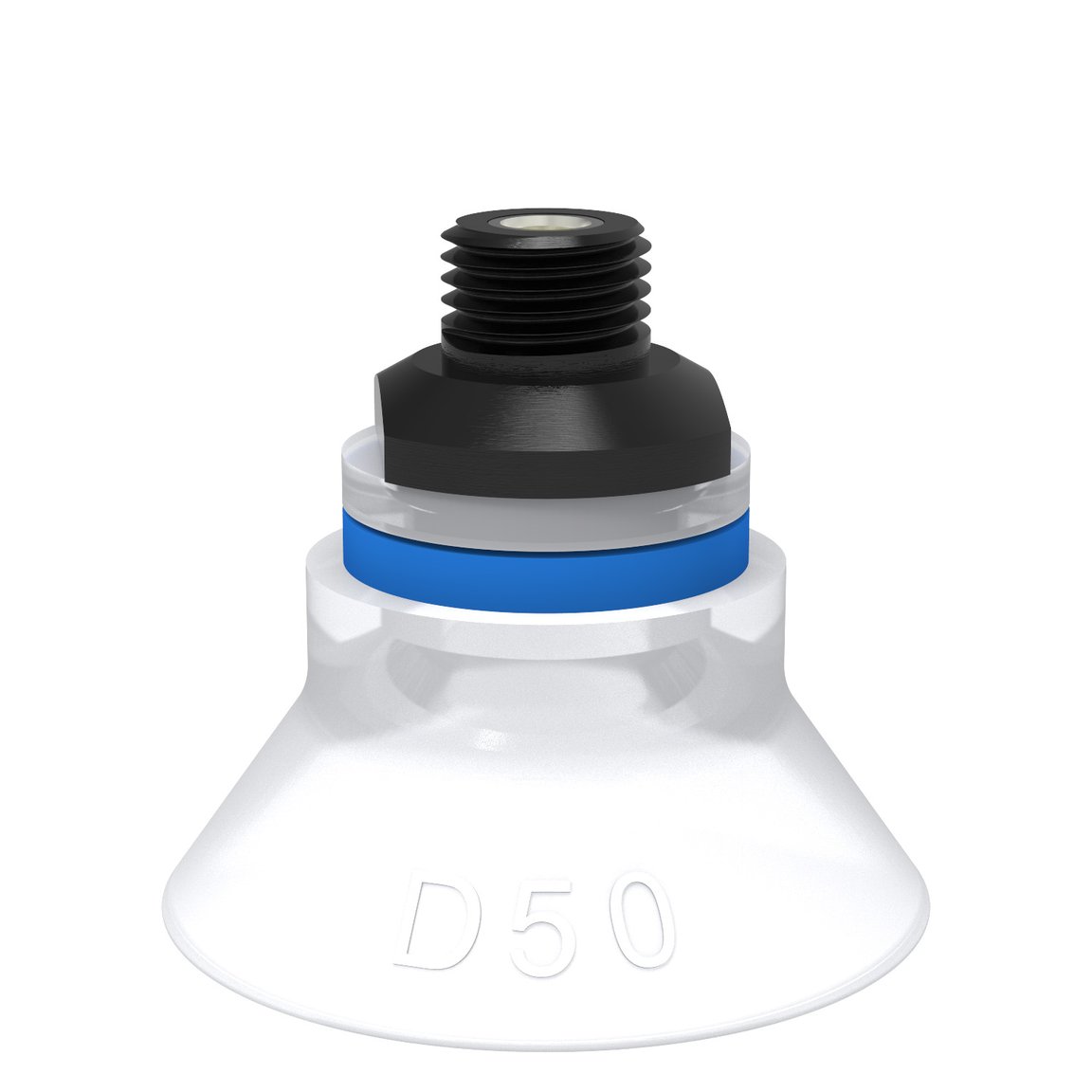

Suction cup D50 Silicone FCM, 1/4" NPT male, with mesh filter
The material is approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004. The cup is transparent with no addition of pigments. Used for c...
Read more
Login or create account to access all our content and features!
Variants
0200445
9909675
9909676
9909677
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Suitable for objects with curved or irregular surfaces.
- Grips around corners and edges.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), non-detectable
Suction cup model
D
Volume
15 cm³
Weight, min.
18 g
Fitting
Fitting option
Filter mesh
Fitting size
1/4"
Fitting style
Male
Fitting type
NPT-thread
Dimension
Height
46.5 mm
Outer diameter, min.
53 mm
Performance - lifting forces
D50
20 -kPa
36 N
29.9 N
60 -kPa
78 N
42.6 N
90 -kPa
98 N
47.4 N
Material
Name
Silicone (SIL FDA) 50° Shore
Colour
Transparent
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
