Item number: 0101228
14 Variants

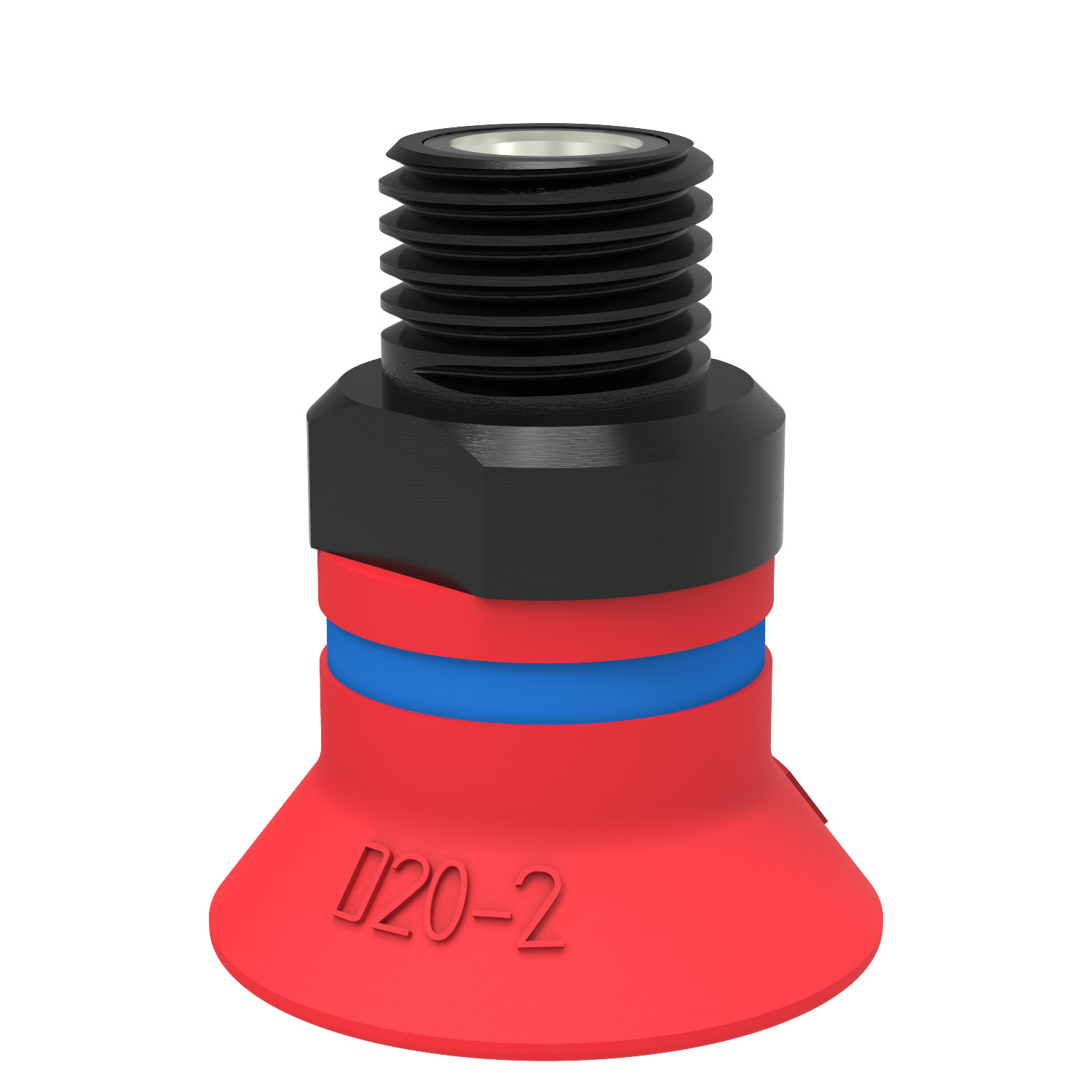

Suction cup D20-2 Silicone, NPT 1/8 male, with mesh filter
Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable for use on flat surfaces.
Login or create account to access all our content and features!
Variants
0101123
0101124
0101215
0101216
0101217
0101218
0101220
0101226
0101227
0101228
0101231
0101232
0101234
0110331
Features
- Suitable for objects with curved or irregular surfaces.
- Grips around corners and edges.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Plastic injection molded parts
Suction cup model
D
Volume
2.5 cm³
Weight, min.
2.2 g
Fitting
Fitting option
Filter mesh
Fitting size
1/8"
Fitting style
Male
Fitting type
NPT-thread
Dimension
Height
25.2 mm
Outer diameter, min.
22 mm
Performance - lifting forces
D20-2
20 -kPa
5.9 N
5 N
60 -kPa
15 N
8 N
90 -kPa
18 N
8.5 N
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
