Item number: 0101215
14 Variants

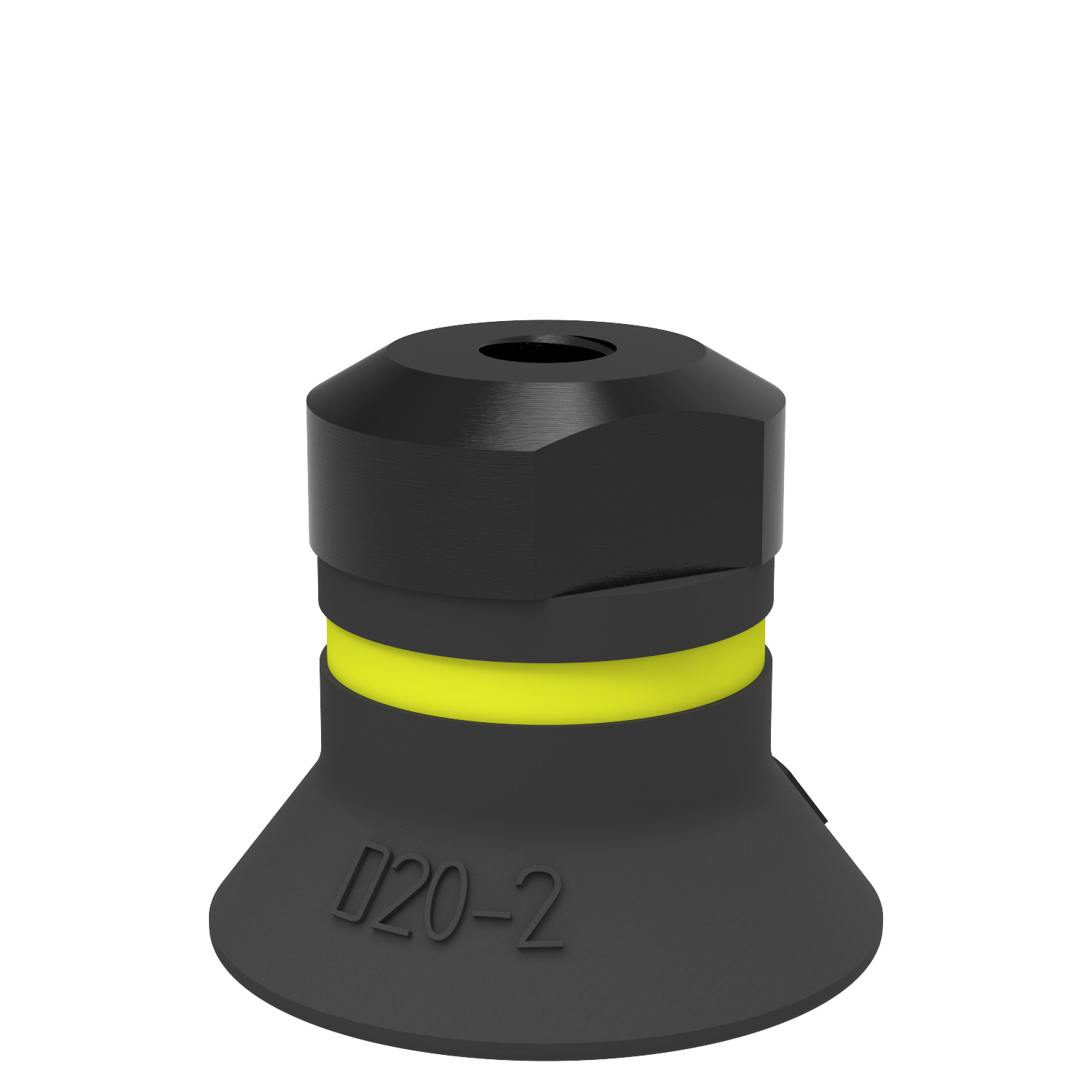

Suction cup D20-2 Chloroprene, M5 female
Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable for use on flat surfaces.
Login or create account to access all our content and features!
Variants
0101123
0101124
0101215
0101216
0101217
0101218
0101220

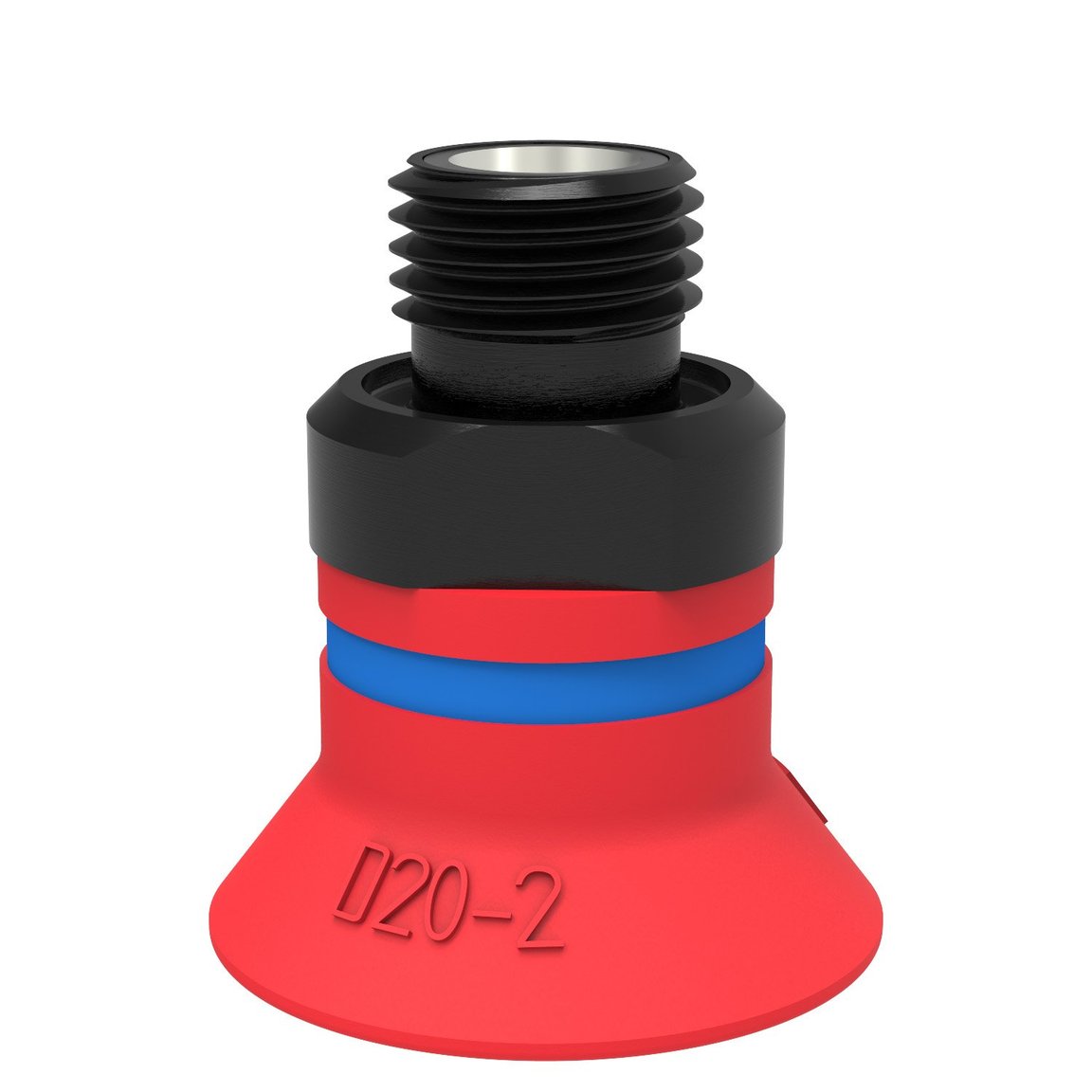

0101226
0101227
0101228
0101231
0101232

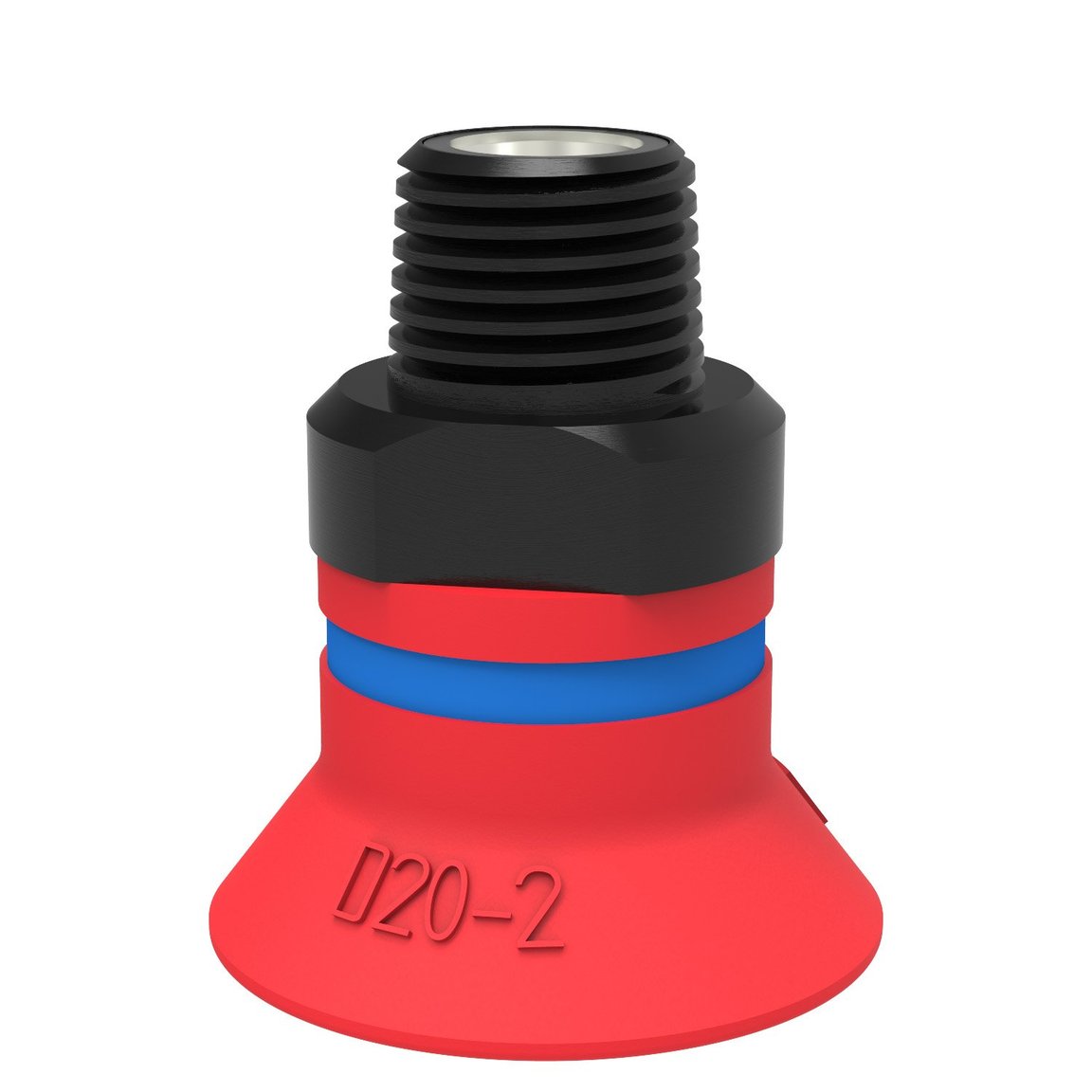

0101234
0110331
Features
- Suitable for objects with curved or irregular surfaces.
- Grips around corners and edges.
Logistics
Packaging
General
Material
Chloroprene (CR)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
D
Volume
2.5 cm³
Weight, min.
2.2 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
Female
Fitting type
M-thread
Dimension
Height
19.2 mm
Outer diameter, min.
22 mm
Performance - lifting forces
D20-2
20 -kPa
5.9 N
5 N
60 -kPa
15 N
8 N
90 -kPa
18 N
8.5 N
Material
Name
Chloroprene (CR) 50° Shore A
Colour
Black
Temperature
-40 - 110 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
This activity requires login. Please login or register to receive the full benefits of piab.com.
CAD
CAD
Datasheet
PDF
Certificates
PDF
