Suction cup DCF40P Polyurethane 60, G3/8" female - 1
Item number: 0210596
73 Variants

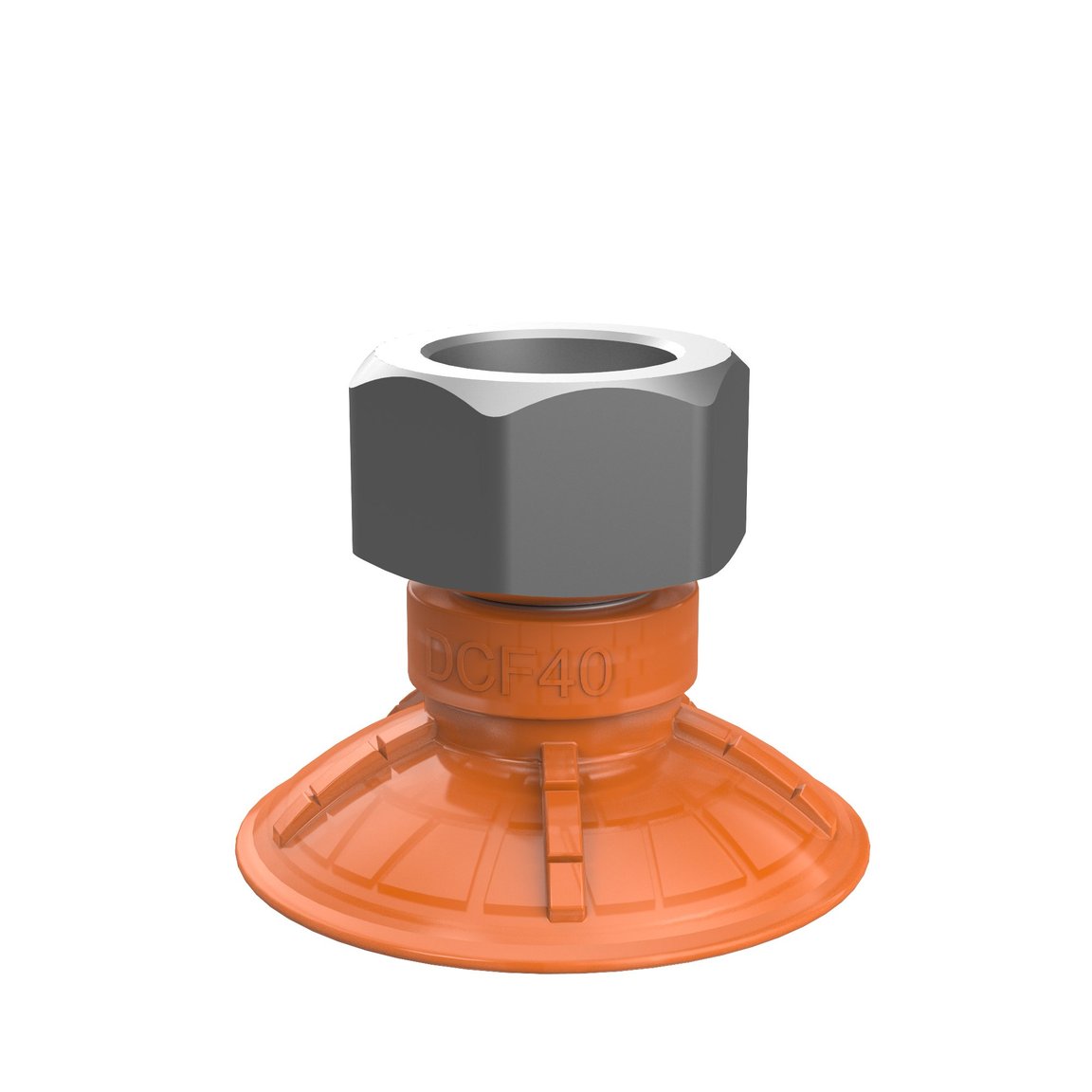

Suction cup DCF40P Polyurethane 60, G3/8" female

Piab’s DCF suction cups are optimized for oily metal sheets, featuring a deep concave design and flexible lip for secure grip and reliable sealing—even on curved or uneven surfaces. The DCF cups handle high shear forces and are ideal for fast de-stacking and handling in press lines. Made from DURAFLEX®, they offer excellent wear resistance and elastic memory, ensuring long-lasting, consistent performance.
Login or create account to access all our content and features!
DownloadsShare via email

Size

30 mm
40 mm
52 mm
65 mm
80 mm
90 mm
100 mm
110 mm

Fitting

M10x1.5 MaleSS
M10x1.5 MaleFilter mesh, SS
M14x1 FemaleAl
G 1/4" MaleFilter mesh, Al
G 1/4" MaleAl
G 3/8" Male, 1/8" NPSF FemaleFilter mesh, Al
G 3/8" MaleAl
G 3/8" Male, 1/8" NPSF FemaleAl
G 3/8" Long FemaleAl
G 3/8" Long FemaleFilter mesh, Al
G 1/4" FemaleAl
G 1/4" FemaleFilter mesh, Al
G 3/8" FemalePA
G 3/8" FemaleAl
G 3/8" FemaleFilter mesh, Al
G 3/8" FemaleFilter mesh, PA
3/8" NPT FemaleBrass
3/8" NPT FemaleFilter mesh, Al
3/8" NPT FemaleFilter mesh, Brass
T-slot Al
T-slot Filter mesh, Al
Not compatible with the selected fitting or size. Choosing this option will adjust the size/fitting.

Features

  • Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
  • Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
  • DURAFLEX® is a material that features the elasticity of rubber and wear resistance of polyurethane. The material has a fantastic elastic memory, even after hundreds of thousand cycles.
