Item number: S.B13-2

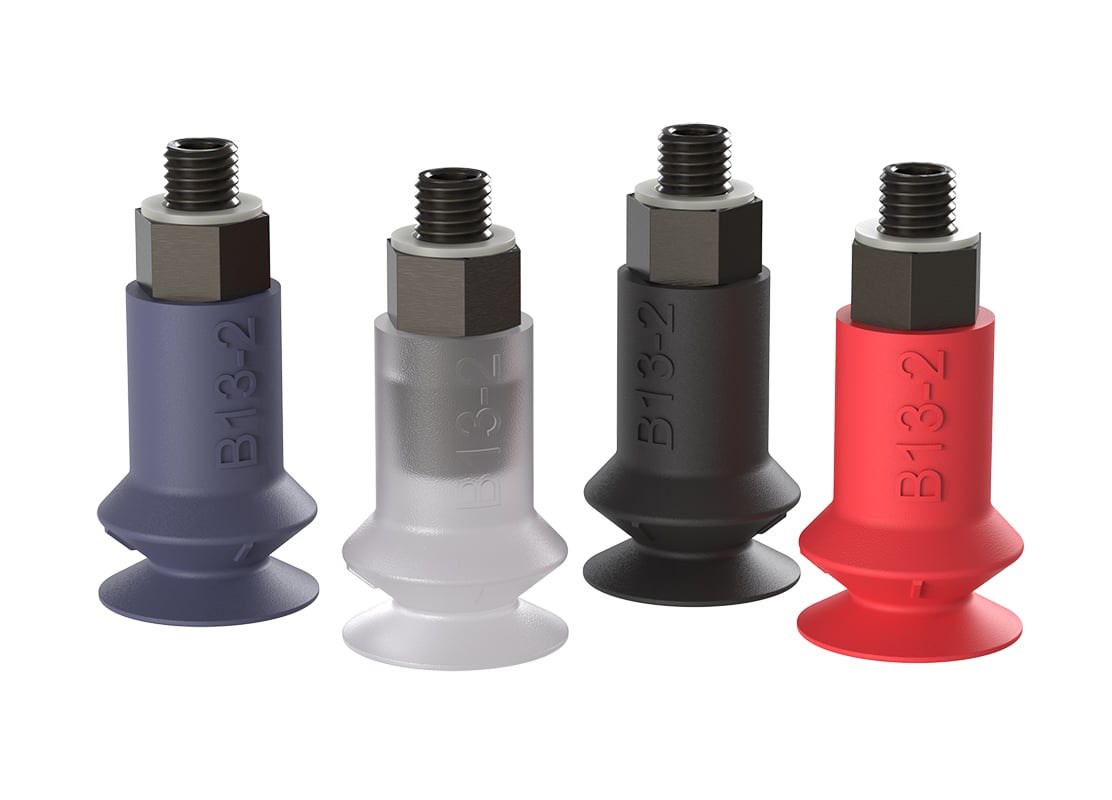

Suction cup B13-2
This is a configurable product. Please use the configurator to customize the item to your needs and see updated price and availability there.
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
- The fittings avaliable are threaded and push on fittings.
Logistics
Packaging
General
Material
Chloroprene (CR) , HNBR , Silicone (SIL)
Suction cup model
B
Dimension
Outer diameter, min.
13 mm
Material
Name
Silicone (SIL FDA) 50° Shore
Colour
Transparent
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material
Name
HNBR 50° Shore A
Colour
Blue
Temperature
-30 - 140 °C
Hardness
50 °Shore A
Material
Name
Silicone, SIL 50° Shore A
Colour
Red
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material
Name
Chloroprene (CR) 50° Shore A
Colour
Black
Temperature
-40 - 110 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Certificates
PDF
