Item number: 9909607
2 Variants

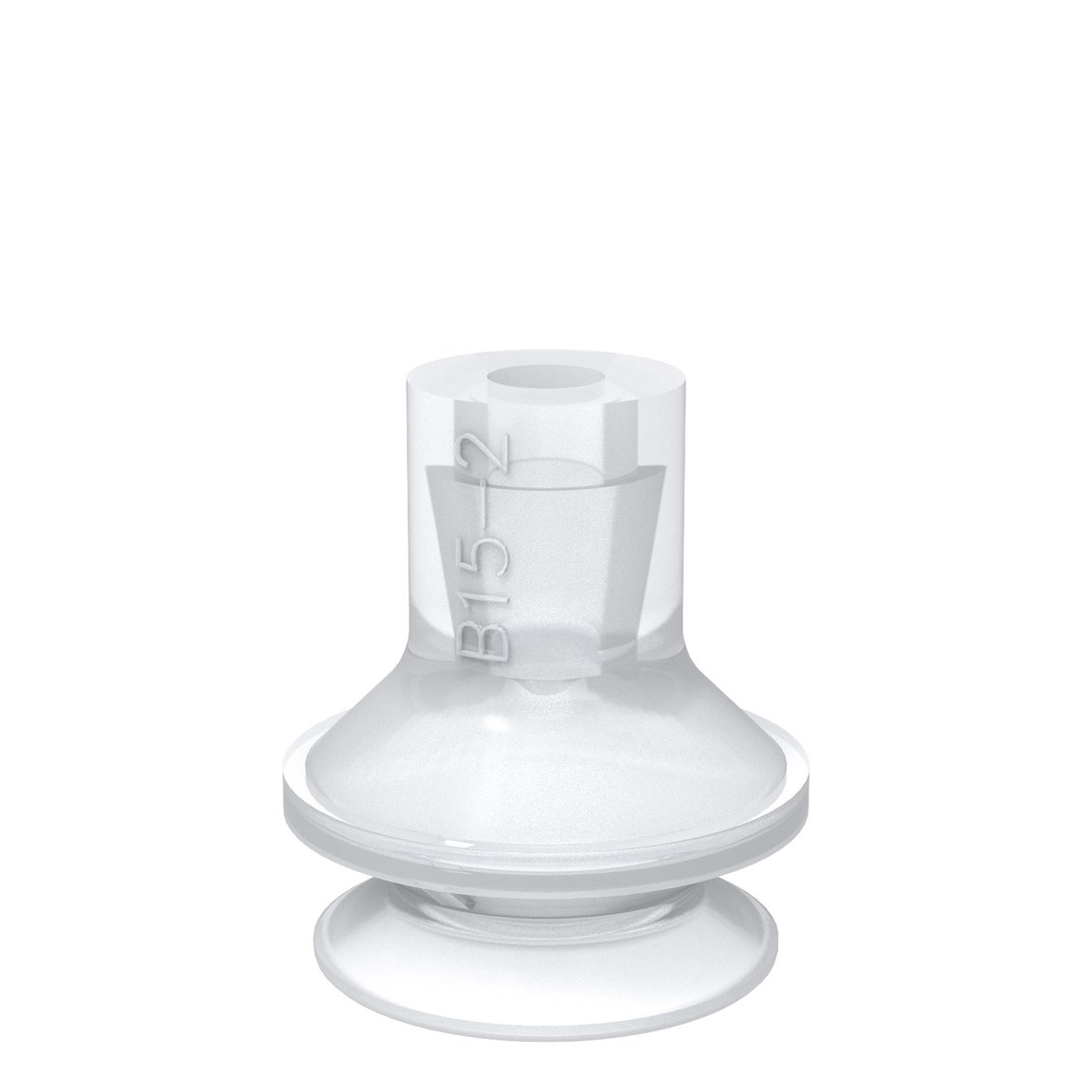

Suction cup B15-2 Silicone FCM, M5 male
The material is approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004. Most of the cups are transparent with no addition of pigments.
Login or create account to access all our content and features!
Variants
9909607
0200271
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
- Suitable for level adjustment.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), non-detectable
Suction cup model
B
Volume
1.1 cm³
Weight, min.
1.5 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
Male
Fitting type
M-thread
Dimension
Height
28.3 mm
Outer diameter, actuated
18.5 mm
Outer diameter, min.
15.7 mm
Performance - lifting forces
B15-2
20 -kPa
2.9 N
1.7 N
60 -kPa
5.9 N
3.2 N
90 -kPa
8.9 N
3.8 N
Material
Name
Silicone (SIL FDA) 50° Shore
Colour
Transparent
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
