Item number: 3250083SC
8 Variants

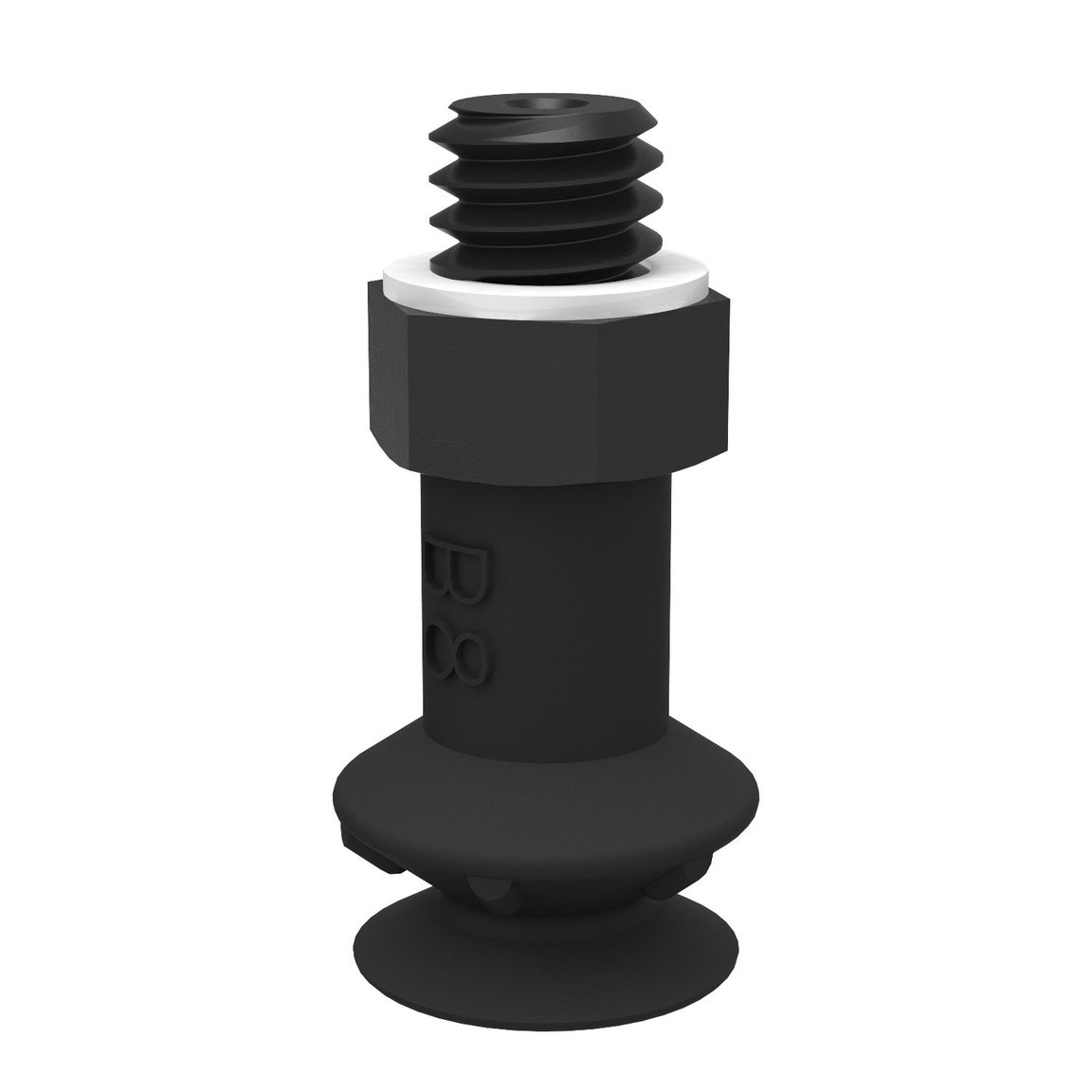

Suction cup B8 Conductive silicone, M5 male
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0200894
3150287
3150287S
3150287SC
3250083
3250083S
3250083SC
9912094
Features
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
- Suitable for level adjustment.
- Suction cups of conductive silicone and semi-conductive EPDM are suitable for objects with sensitivity to static electricity.
Electronics
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal , ESD/Conductive/Antistatic , Plastic injection molded parts
Suction cup model
B
Volume
0.15 cm³
Weight, min.
0.3 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
Male
Fitting type
M-thread
Dimension
Height
19.4 mm
Outer diameter, actuated
9.6 mm
Outer diameter, min.
8.8 mm
Performance - lifting forces
B8
20 -kPa
0.8 N
0 N
60 -kPa
1.6 N
0 N
90 -kPa
2.5 N
0 N
Material
Name
Conductive Silicone (CSIL)
Colour
Black
Temperature
-55 - 230 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
