Item number: 0241406
2 Variants

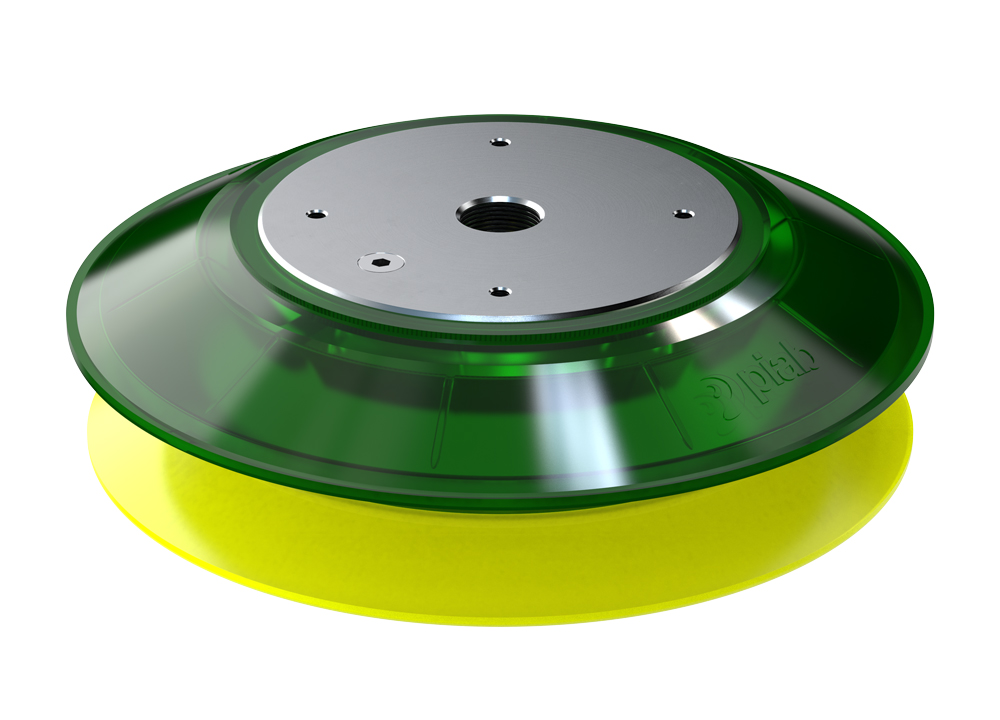

B200P Polyurethane suction cup 30/60 with G 1/2” female
Piab’s B200P polyurethane 30/60 suction cups with G 1/2” female fittings offer a steady and secure grip.
Combined in one lifting device they are ideally suited...
Read more
Login or create account to access all our content and features!
Variants
0241408
0241406
Features
- Reliable handling of difficult objects, e.g. with uneven and porous surfaces such as wood or cardboard etc., particularly with the two-colored suction cups where the harder bellows provide stability while the soft and flexible lips ensure full coverage of such surfaces (only on 30/60 shore version).
- Unspoiled surfaces thanks to the mark-free characteristics of the DURAFLEX® material with the 60 shore lips, i.e. one colored surface, on smooth surfaces such as glass or coated materials (only on 60/60 shore version).
- Allowing movements in all directions thanks to the strong grip of DURAFLEX® material.
- Stable processes with the integrated aluminum plate providing rigidity to avoid bending forces affecting the fittings.
- Enable handling parts with different heights thanks to level adjustment capabilities if several suction cups are combined in one gripper.
- Low downtimes thanks to the high wear resistance and long lasting elastic memory of the DURAFLEX® material.
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Packaging
Plastics
General
Material
Polyurethane (PU)
Characteristics
Dry sheet metal , Mark free , Plastic injection molded parts
Suction cup model
B-P
Volume
718 cm³
Weight, min.
697 g
Fitting
Fitting size
1/2"
Fitting style
Female
Dimension
Height
55 mm
Outer diameter, actuated
206 mm
Outer diameter
195 - 202 mm
Performance - lifting forces
B200P PU30/60
20 -kPa
504 N
252 N
60 -kPa
1064 N
532 N
90 -kPa
1522 N
761 N
Material
Name
Polyurethane (PU30)
Colour
Yellow
Temperature
10 - 50 °C
Hardness
30 °Shore A
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
Material resistance
Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
