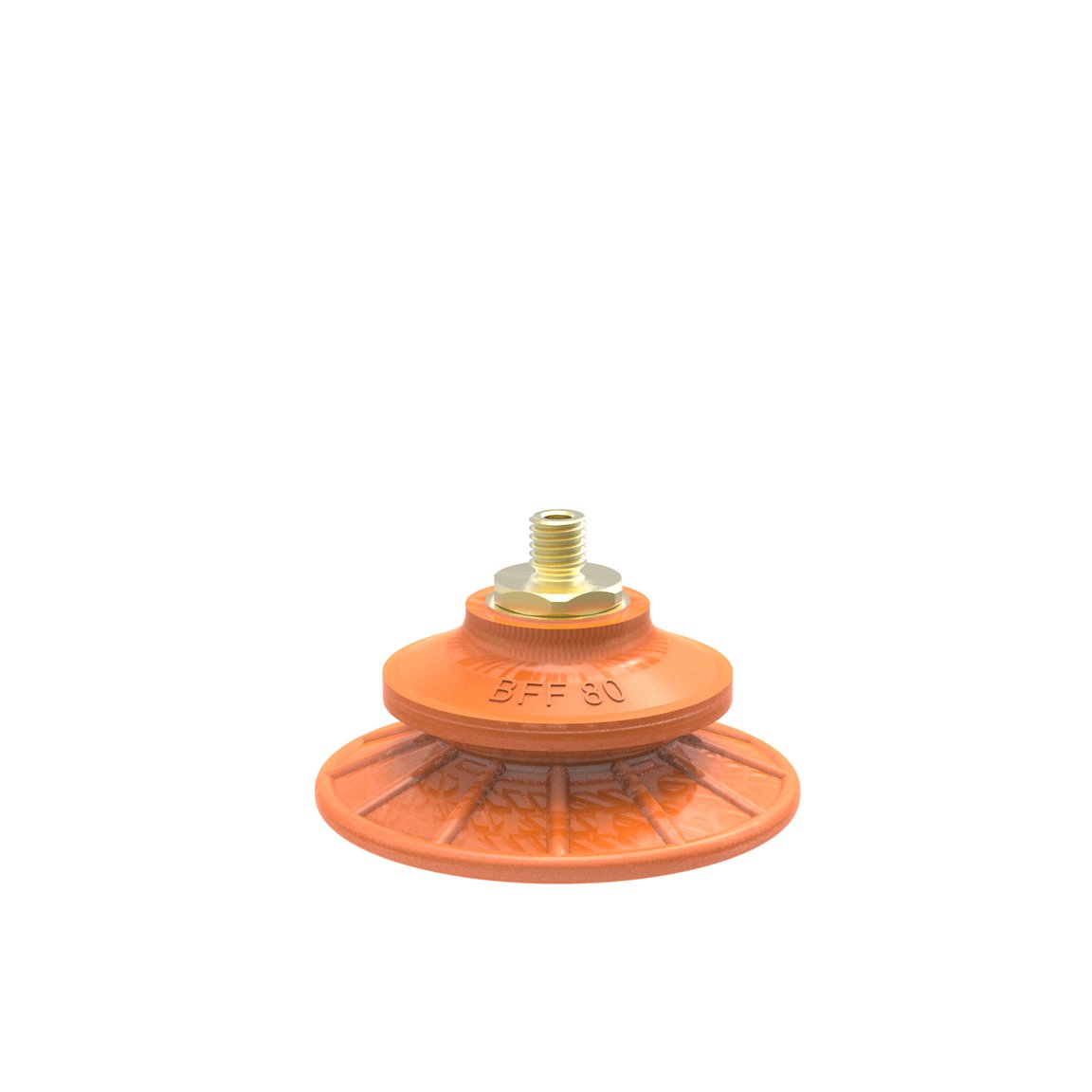

Suction cup BFF80TP Polyurethane 55/60/30 M10x1,5 male with mesh filter - 1
订货号: BFF80TP.5S.M10MR
9 种类

Suction cup BFF80TP Polyurethane 55/60/30 M10x1,5 male with mesh filter

BFF-TP吸盘专为油质、非平整/略带弧形表面或要求缓冲杆的应用而设计，如卸垛应用。平坦的内撑板确保在任何方向都可稳定移动。这种摩擦吸盘专为油质表面而设计，适用于搬运金属成型工艺中的板材。归功于其强劲的油质表面抓持力，该吸盘的剪切力承受能力普遍可达到同类传统吸盘的2到4倍。
登录或创建账户以访问我们的所有内容和功能！
下载通过电子邮件分享

种类

  • Suction cup BFF80TP Polyurethane 55/60/30. 3/8" NPT female with mesh filter
    BFF80TP.5S.N49MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" female with mesh filter
    BFF80TP.5S.G77MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" female plastic thread
    BFF80TP.5S.G56WC
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" male, 1/8" NPSF female, with mesh filter
    BFF80TP.5S.G69MR
  • Suction cup BFF80TP Polyurethane 55/60/30 T-slot with mesh filter
    BFF80TP.5S.T2MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G1/4" female with mesh filter
    BFF80TP.5S.G75MR
  • Suction cup BFF80TP Polyurethane 55/60/30 M10x1,5 male with mesh filter
    BFF80TP.5S.M10MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G3/8" female with mesh filter, 17 mm thread
    BFF80TP.5S.G78MR
  • Suction cup BFF80TP Polyurethane 55/60/30 G1/4" male with mesh filter
    BFF80TP.5S.G79MR

特性

  • Special designed friction cups for thin (0.6-0.8 mm) oily metal sheets, such as outer body car parts in a press-to press forming process.
  • Long lasting material, normal wear on friction cup will not affect the long term grip performance.
  • The suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • The "BFF-TP" design is suitable for thin flat or uneven/curved surfaces and if level compensation is needed.
  • The flat inner support, made of dual hardness, gives stability and good grip during movement in any orientation.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycle.
