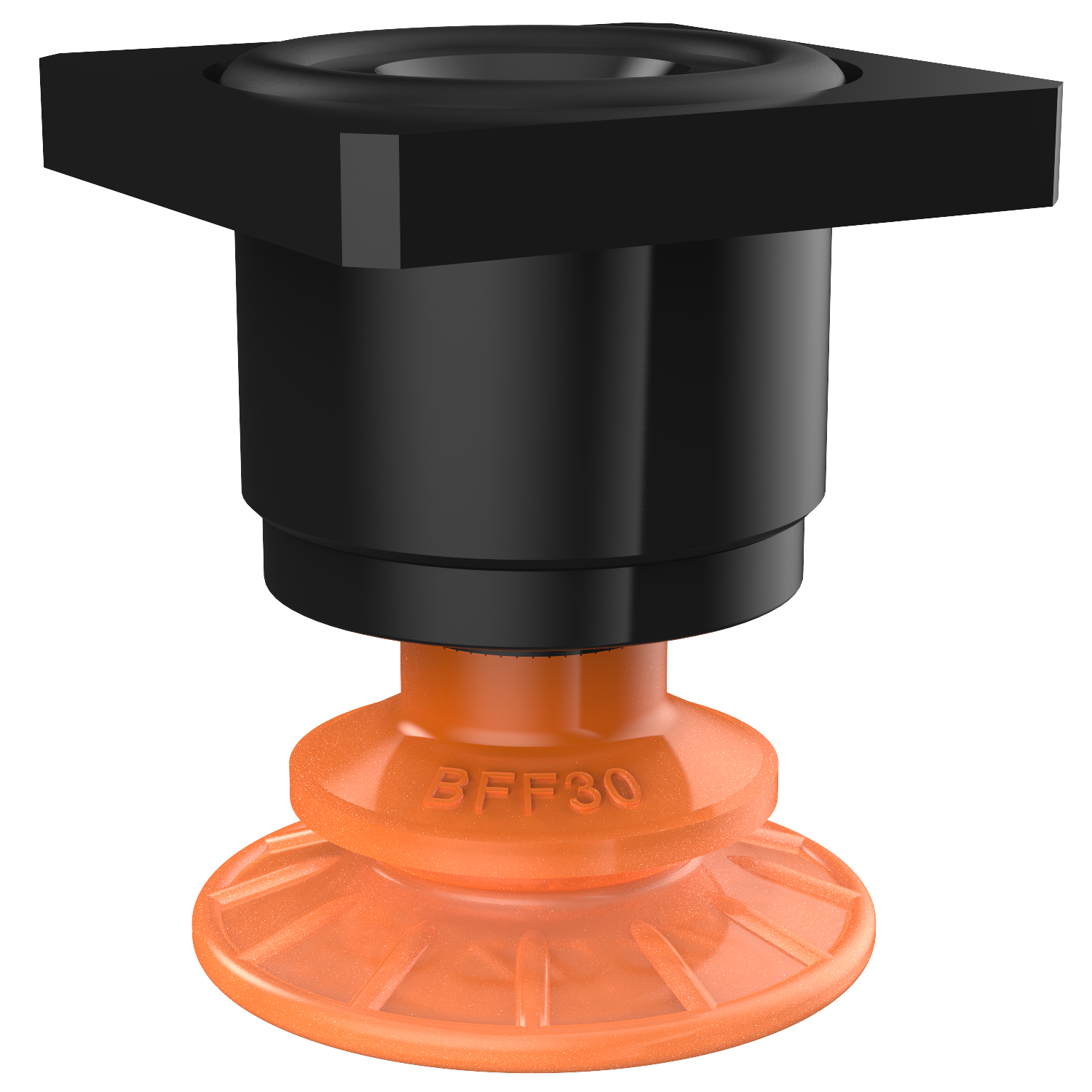

Suction cup BFF30P Polyurethane 55/60, T-slot

Variants

•

  0201821

  Suction cup BFF30P Polyurethane 55/60, G3/8^" male, 1/8^" NPSF female
  Compare
•

  0206599

  Suction cup BFF30P Polyurethane 55/60, G3/8^" female plastic
  Compare
•

  0206908

  Suction cup BFF30P Polyurethane 55/60, G3/8^" female
  Compare
•

  0206915

  Suction cup BFF30P Polyurethane 55/60, 3/8^" NPT female
  Compare
•

  0206918

  Suction cup BFF30P Polyurethane 55/60, G1/4^" female
  Compare
•

  0206924

  Suction cup BFF30P Polyurethane 55/60, T-slot
  Compare

Features

• Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
• Normal wear on friction cup will not affect the long term shear force performance.
• Best choice if > 0.1g/m2 press oil is used on the sheet.
• Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
• The "BFF" design is suitable for uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications.
• The flat inner support gives stability during movement in any orientation.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
