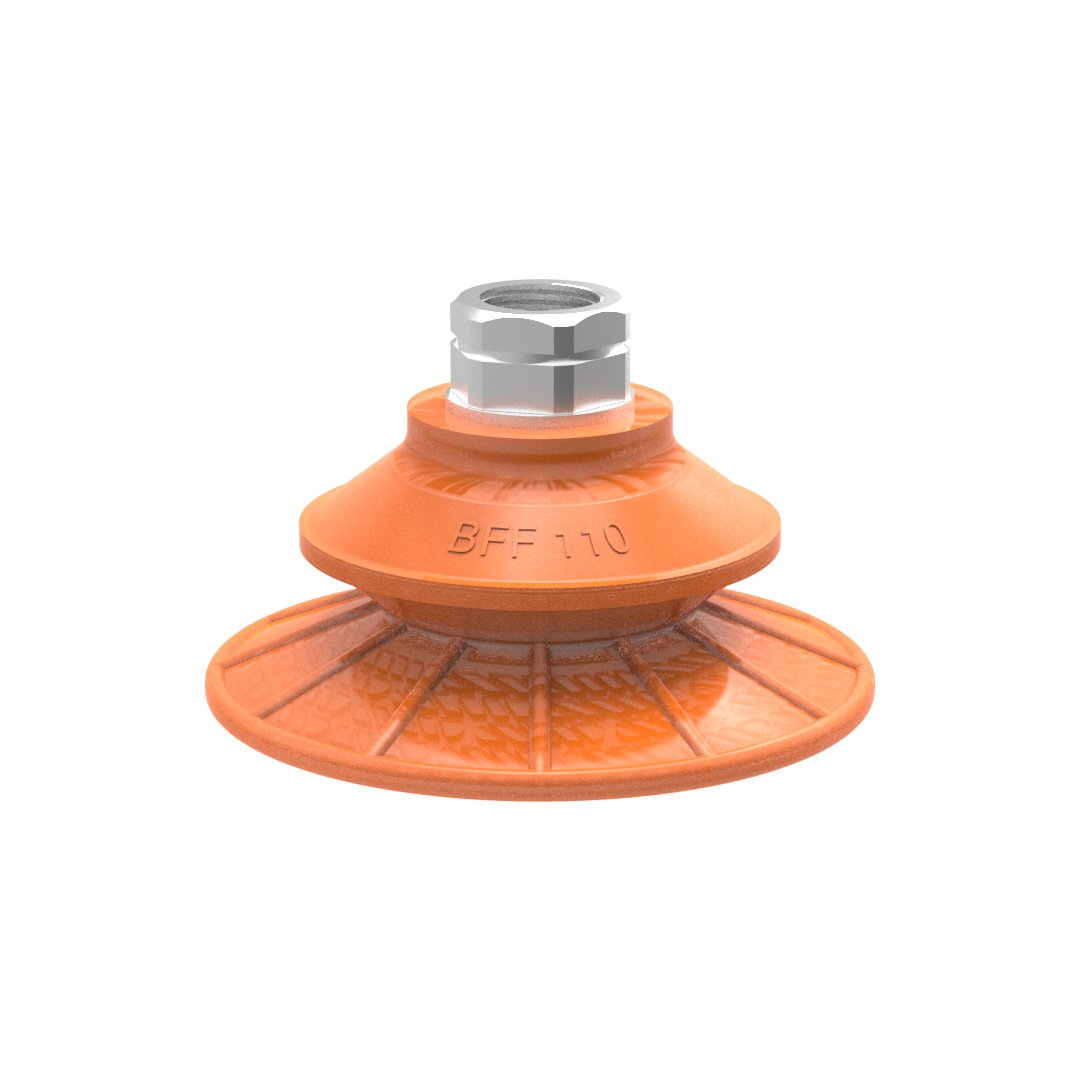

Suction cup BFF110TP Polyurethane 55/60/30. 3/8" NPT female with mesh filter - 1
품목 번호: 0206695
9 변형

Suction cup BFF110TP Polyurethane 55/60/30. 3/8" NPT female with mesh filter

The BFF-TP design is suitable for oily surfaces, uneven/curved surfaces or if level compensation is needed, for example in de-stacking applications. The flat inner support gives stability during movement in any orientation.Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
로그인하거나 계정을 생성하여 모든 콘텐츠와 기능에 액세스하세요!
다운로드이메일로 공유

변형

  • Suction cup BFF110TP Polyurethane 55/60/30. 3/8" NPT female with mesh filter
    0206695
  • Suction cup BFF110TP Polyurethane 55/60/30 G3/8" female with mesh filter
    0206696
  • Suction cup BFF110TP Polyurethane 55/60/30 G3/8" female plastic thread
    0206697
  • Suction cup BFF110TP Polyurethane 55/60/30 G3/8" male, 1/8" NPSF female, with mesh filter
    0206698
  • Suction cup BFF110TP Polyurethane 55/60/30 T-slot with mesh filter
    0206699
  • Suction cup BFF110TP Polyurethane 55/60/30 G1/4" female with mesh filter
    0206700
  • Suction cup BFF110TP Polyurethane 55/60/30 M10x1,5 male with mesh filter
    0207202
  • Suction cup BFF110TP Polyurethane 55/60/30 G3/8" female with mesh filter, 17 mm thread
    0207204
  • Suction cup BFF110TP Polyurethane 55/60/30 G1/4" male with mesh filter
    0209102

특징

  • Special designed friction cups for thin (0.6-0.8 mm) oily metal sheets, such as outer body car parts in a press-to press forming process.
  • Long lasting material, normal wear on friction cup will not affect the long term grip performance.
  • The suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • The "BFF-TP" design is suitable for thin flat or uneven/curved surfaces and if level compensation is needed.
  • The flat inner support, made of dual hardness, gives stability and good grip during movement in any orientation.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycle.
