Item number: 0205157
12 Variants

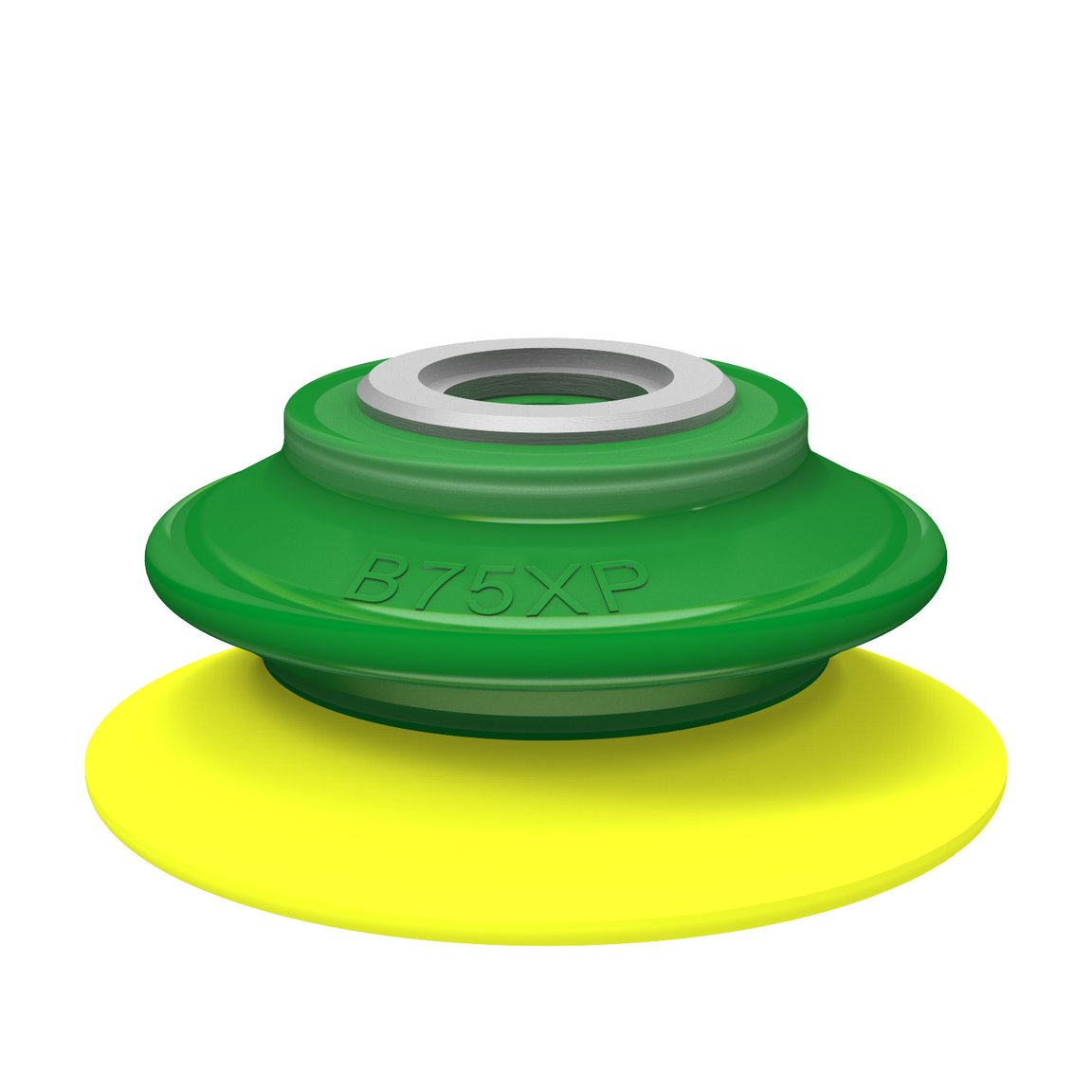

Suction cup B75XP Polyurethane 30/60, for thread insert

Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elas...
Read more
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • 0205208
  • 0205212
  • 0205213
  • 0205214
  • 0205156
  • 0205010
  • 0205161
  • 0205162
  • 0205883
  • 0205209
  • 0205157
  • 0205868

Features

  • Suitable for limited level adjustment with good stability.
  • Excellent gripping performance on corrugated and porous or surface leaking objects such as cardboard, textured plastic parts and composite material (raw surface).
  • In the two-coloured suction cup the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable for accelerations and speed, at the same time, soft and flexible.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
  • The material DURAFLEX® is mark free.

Automotive

  • Plastic part removal
  • Exterior and interior trim components assembly

Packaging

  • Boxes and containers
  • Card / lid feeding and sorting
  • Case / carton erecting, case / carton opening closing
  • Robot pick and place and packing
  • Rotary carton feeding
  • Slip sheet feeding
  • Tray forming, tray unloading and loading

Plastics

  • Plastic part removal

General

Material
Polyurethane (PU)
Characteristics
Corrugated / cardboard , Plastic injection molded parts
Suction cup model
B-XP
Volume
42.8 cm³
Weight, min.
43.5 g

Fitting

Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None

Dimension

Height
34.3 mm
Outer diameter, actuated
77.5 mm
Outer diameter, min.
77.5 mm

Performance - lifting forces

B75XP PU30 PU60

20 -kPa
75 N
60 N
60 -kPa
176 N
150 N
90 -kPa
228 N
180 N

Material

Name
Polyurethane (PU30)
Colour
Yellow
Temperature
10 - 50 °C
Hardness
30 °Shore A

Material

Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A

Material resistance

Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance

Material resistance

Alcohol
n/a
Concentrated acids
Ethanol
Hydrolysis
Methanol
Oil
Oxidation
Petrol
Wear resistance
