9.7 N
19 N
22 N
Select variant
-
0205188Suction cup B25XP Polyurethane 60, 1/8" NPT male with mesh filter
-
0205189Suction cup B25XP Polyurethane 60, 5xM5 female
-
0205190Suction cup B25XP Polyurethane 60, G1/8" male / M5 female with mesh filter
-
0205097Suction cup B25XP Polyurethane 30/60, G1/8" male / M5 female with mesh filter
-
0205095 Suction cup B25XP Polyurethane 30/60, 1/8" NPT male with mesh filter
-
0205096Suction cup B25XP Polyurethane 30/60, 5xM5 female
-
0204997Suction cup B25XP Polyurethane 30/60, M5 female
-
0205050Suction cup B25XP Polyurethane 30/60, G1/8" male with mesh filter
-
0205187Suction cup B25XP Polyurethane 60, G1/8" male, with mesh filter
-
0205184Suction cup B25XP Polyurethane 60, M5 female
-
0204998Suction cup B25XP Polyurethane 30/60
-
0205185Suction cup B25XP Polyurethane 60

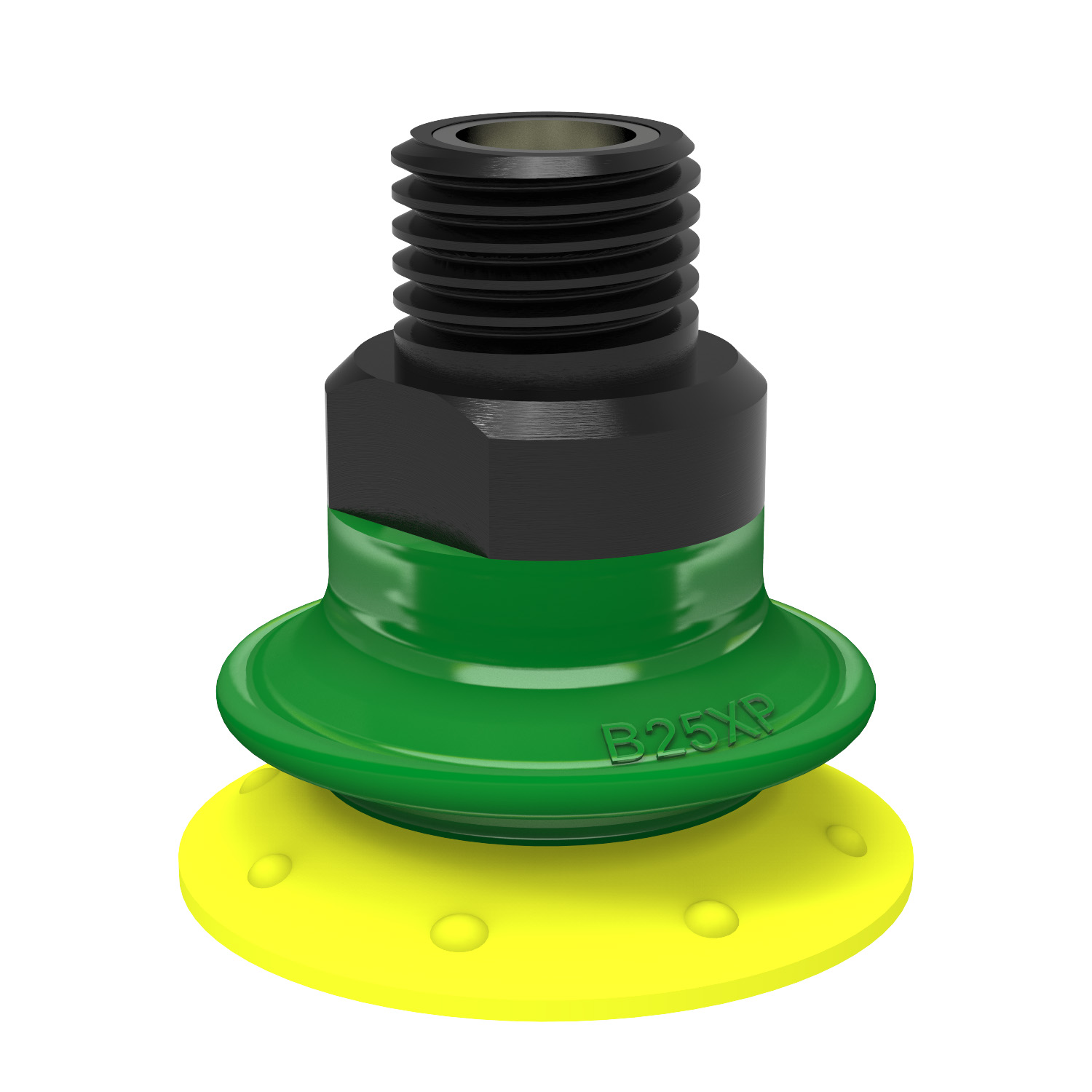

Item no: 0205095
Suction cup B25XP Polyurethane 30/60, 1/8" NPT male with mesh filter
Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.
Read more-
Description
Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.
-
Features
- Suitable for limited level adjustment with good stability.
- Excellent gripping performance on corrugated and porous or surface leaking objects such as cardboard, textured plastic parts and composite material (raw surface)
- In the two-coloured suction cup the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable for accelerations and speed, at the same time, soft and flexible.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
- The material DURAFLEX® is mark free.
-
Specifications
General
ApplicationCorrugatedCardboard, PlasticInjectionMoldedPartsSuction cup shapeBellowsMaterialPU30, PU60Suction cup modelB-XPWeight1.8 gVolume1.63 cm³Suction cup modelB25XP PU30 PU60Movement, vertical max.5.5 mmCurve radius, min.9 mmFitting
Fitting optionFilter meshFitting size1/8"Fitting styleMaleFitting typeNPT-threadDimension
Height26 mmOuter diameter26 mmPerformance - lifting forces
B25XP PU30 PU60
20 -kPa60 -kPa90 -kPa8 N12 N15 NMaterial
NamePU60PU30ColourGreenTransparentYellowTemperature10 - 50 °C10 - 50 °CHardness60 °Shore A30 °Shore APU60PU30Alcoholn/an/aConcentrated acids++Ethanol++Hydrolysis++Methanol--Oil++++++Oxidation--Petrol++Wear resistance++++++Weather and ozone++++++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
Industries
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Plastics
- Plastic part removal
Packaging
- Boxes and containers
- Slip sheet feeding
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Tray forming, tray unloading and loading
- Robot pick and place and packing
- Card / lid feeding and sorting
-
