Item number: 0200484
4 Variants
Suction cup B50-2 Silicone FCM with filter
The material is approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004. Most of the cups are transparent with no addition of pigments.
Login or create account to access all our content and features!
Variants
0200484
9909618

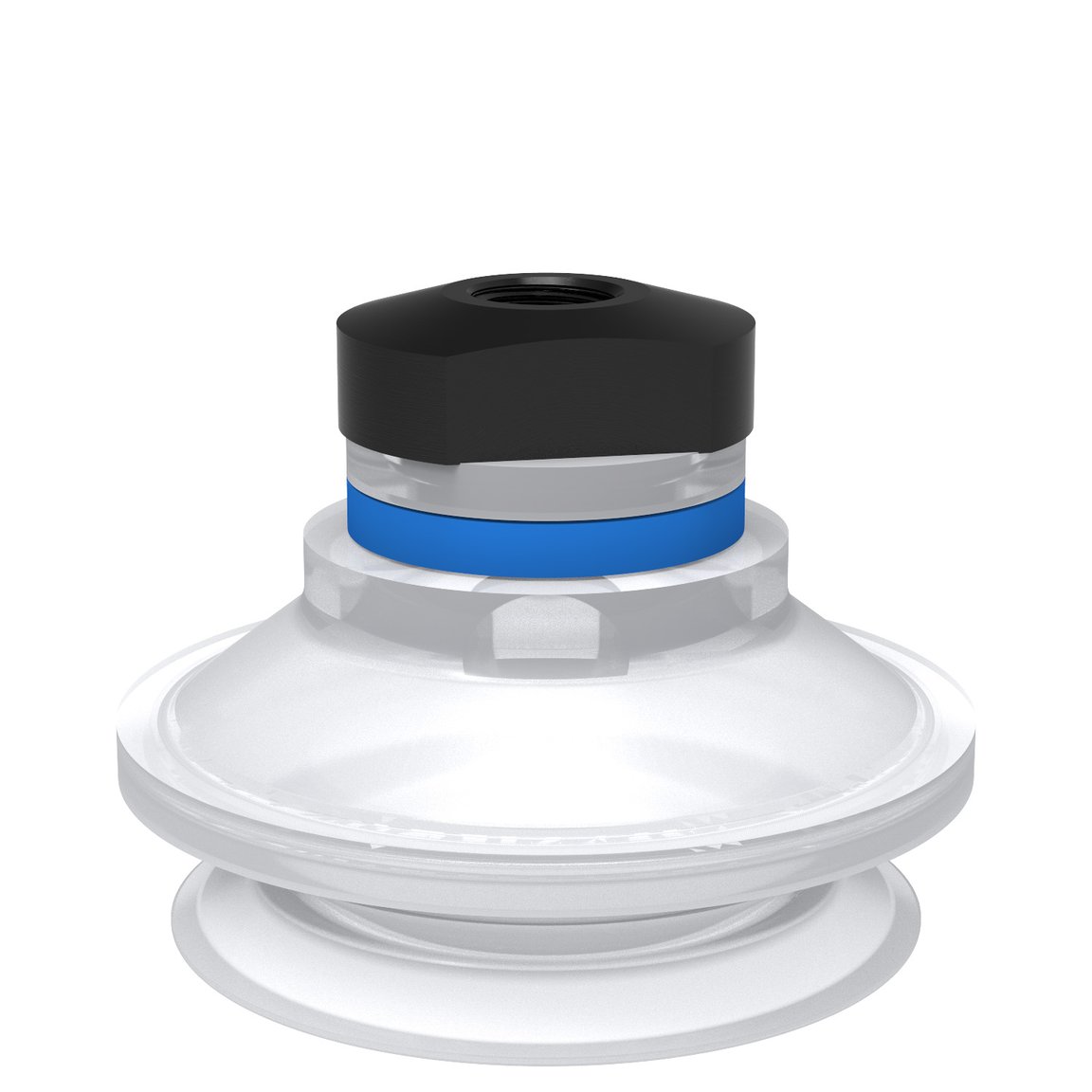

9909619

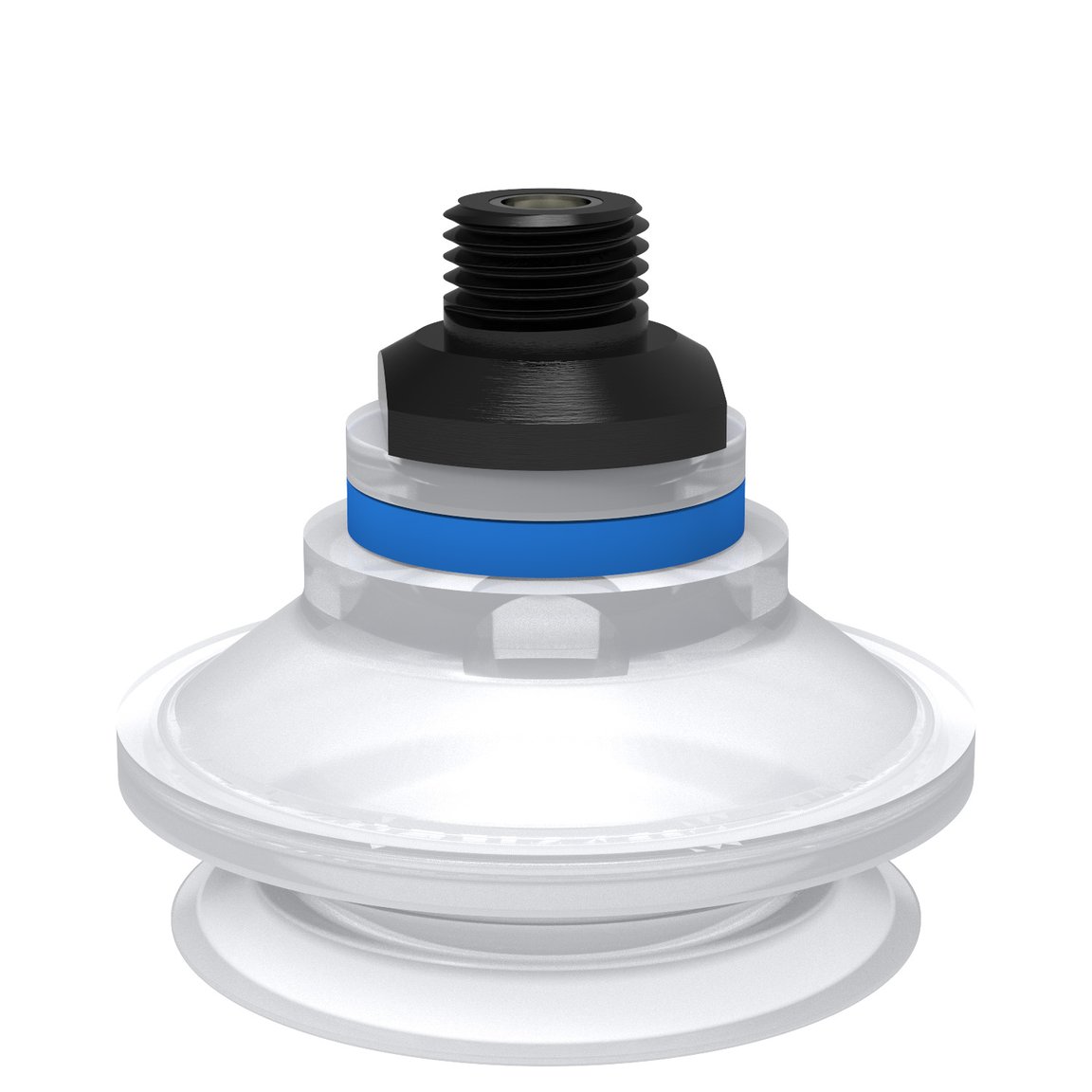

9910492
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), non-detectable
Suction cup model
B
Volume
32 cm³
Weight, min.
20 g
Fitting
Fitting option
Filter disc
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
35.4 mm
Outer diameter, actuated
59 mm
Outer diameter, min.
51.8 mm
Performance - lifting forces
B50-2
20 -kPa
33 N
24.2 N
60 -kPa
65 N
51.2 N
90 -kPa
82 N
60.8 N
Material
Name
Silicone (SIL FDA) 50° Shore
Colour
Transparent
Temperature
-40 - 200 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
