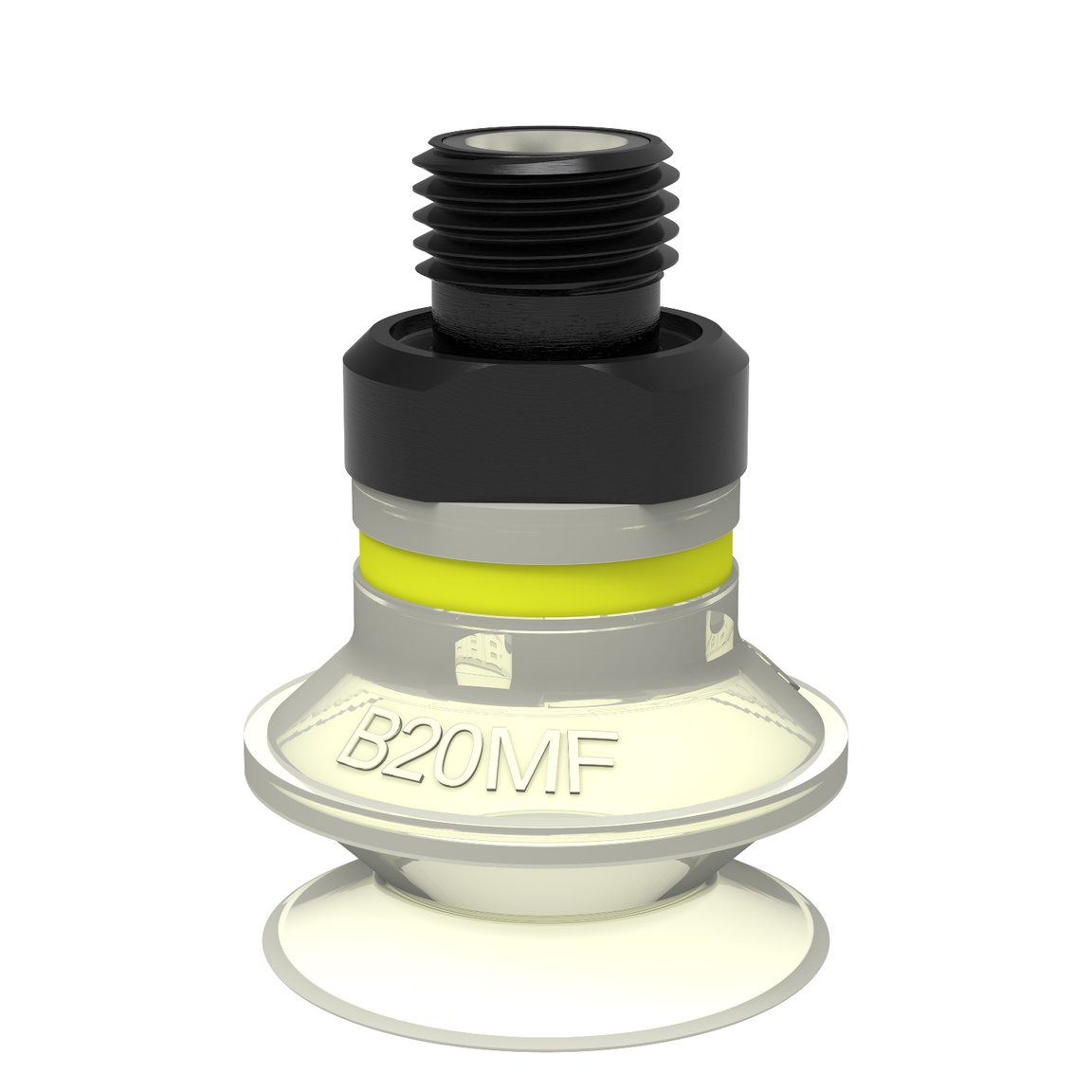

Suction cup B20MF Thermoelastic polyurethane, G1/8" male, with mesh filter
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when th...
Read more
Login or create account to access all our content and features!
Variants
0101111
0101182
0101183
0101184
0101185
0101186
0101187
0101188
0101189
0101191
0101192
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
General
Material
TPE
Characteristics
Mark free
Suction cup model
B-MF
Volume
2.7 cm³
Weight, min.
2 g
Fitting
Fitting option
Filter mesh
Fitting size
1/8"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
31 mm
Outer diameter, actuated
24 mm
Outer diameter, min.
22.8 mm
Performance - lifting forces
B20MF
20 -kPa
4.5 N
6.3 N
60 -kPa
15.5 N
11 N
90 -kPa
21 N
19 N
Material
Name
Thermoplastic Polyurethane (TPE-U)
Colour
WhiteTransparent
Temperature
-20 - 80 °C
Hardness
81 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
