Item number: 0101107
40 Variants

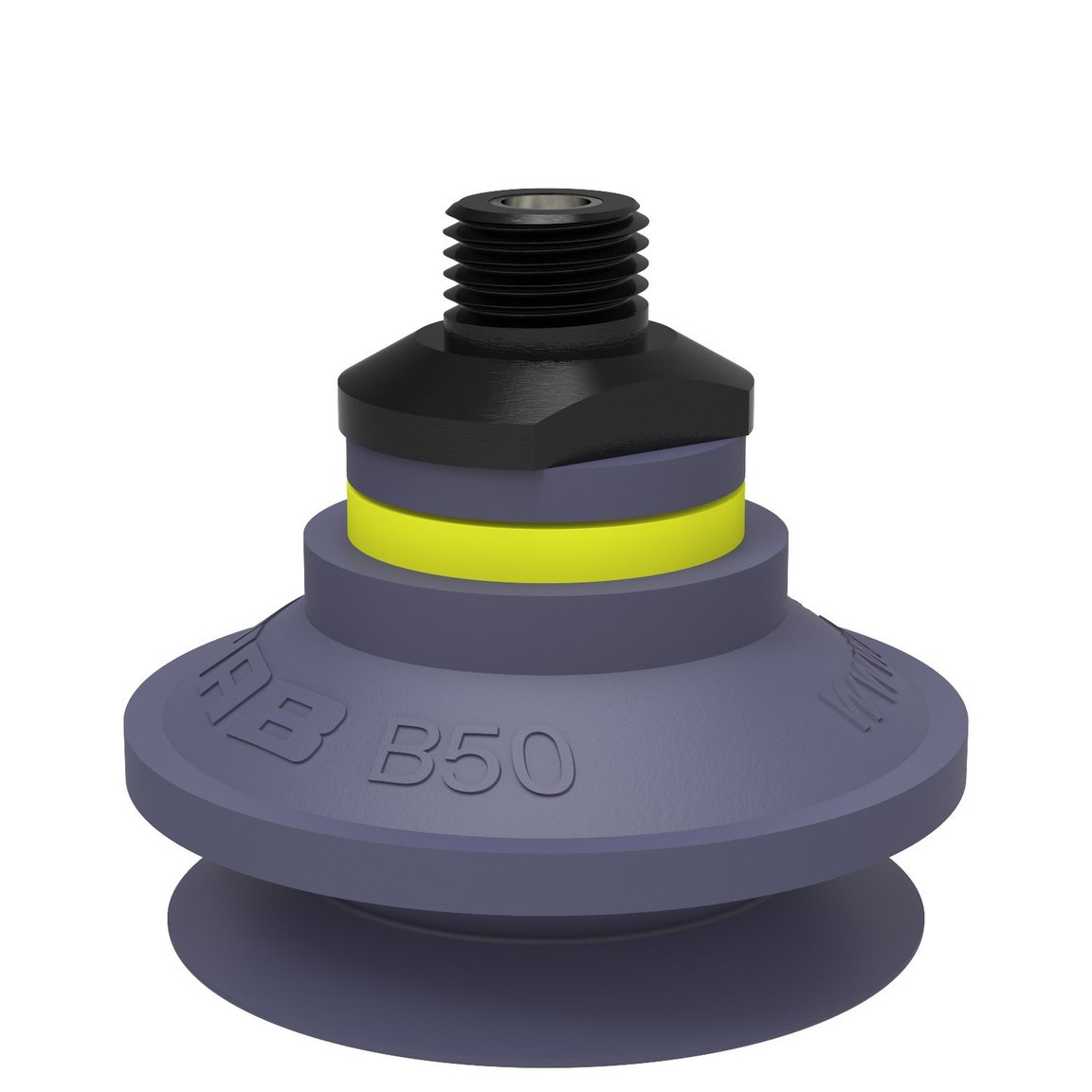

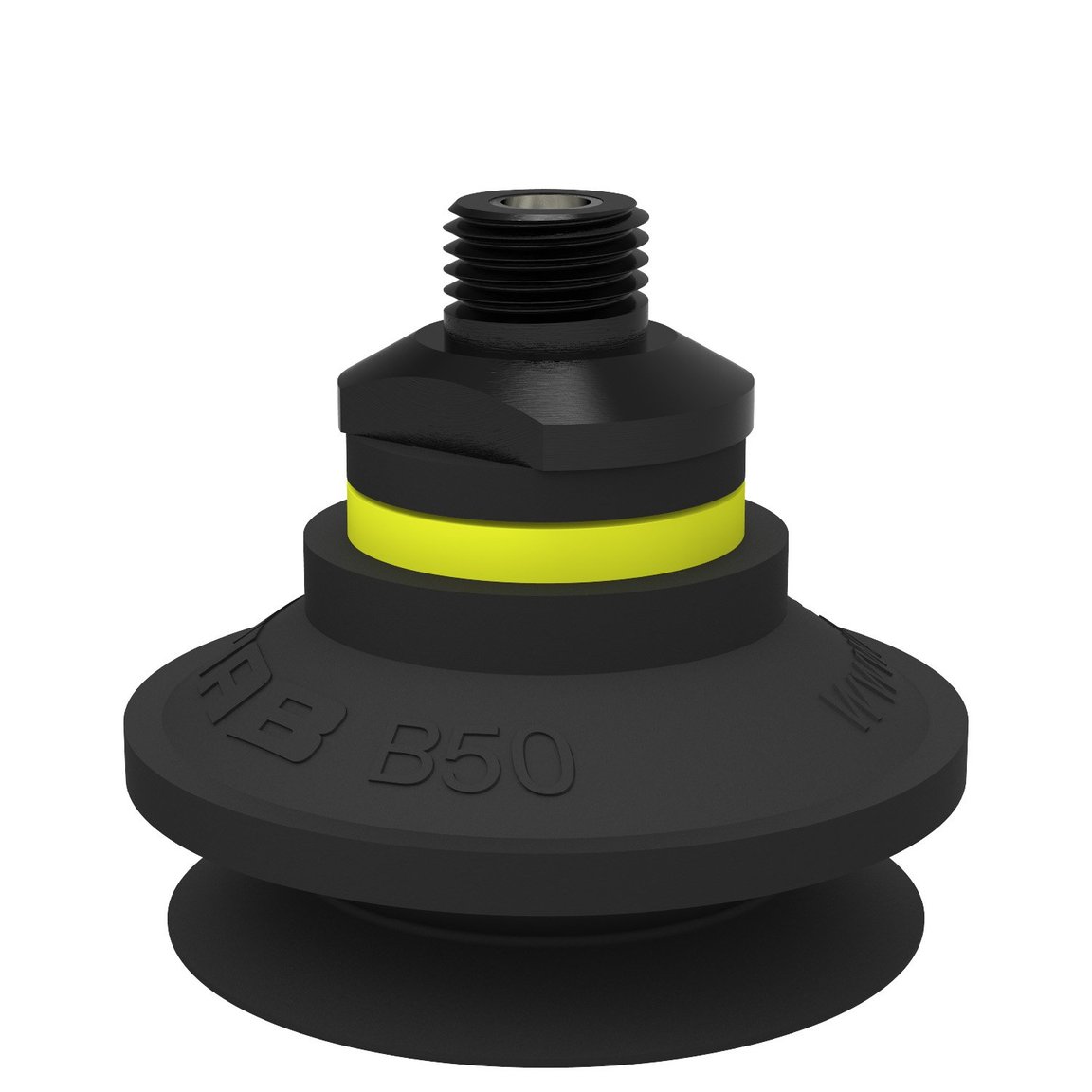

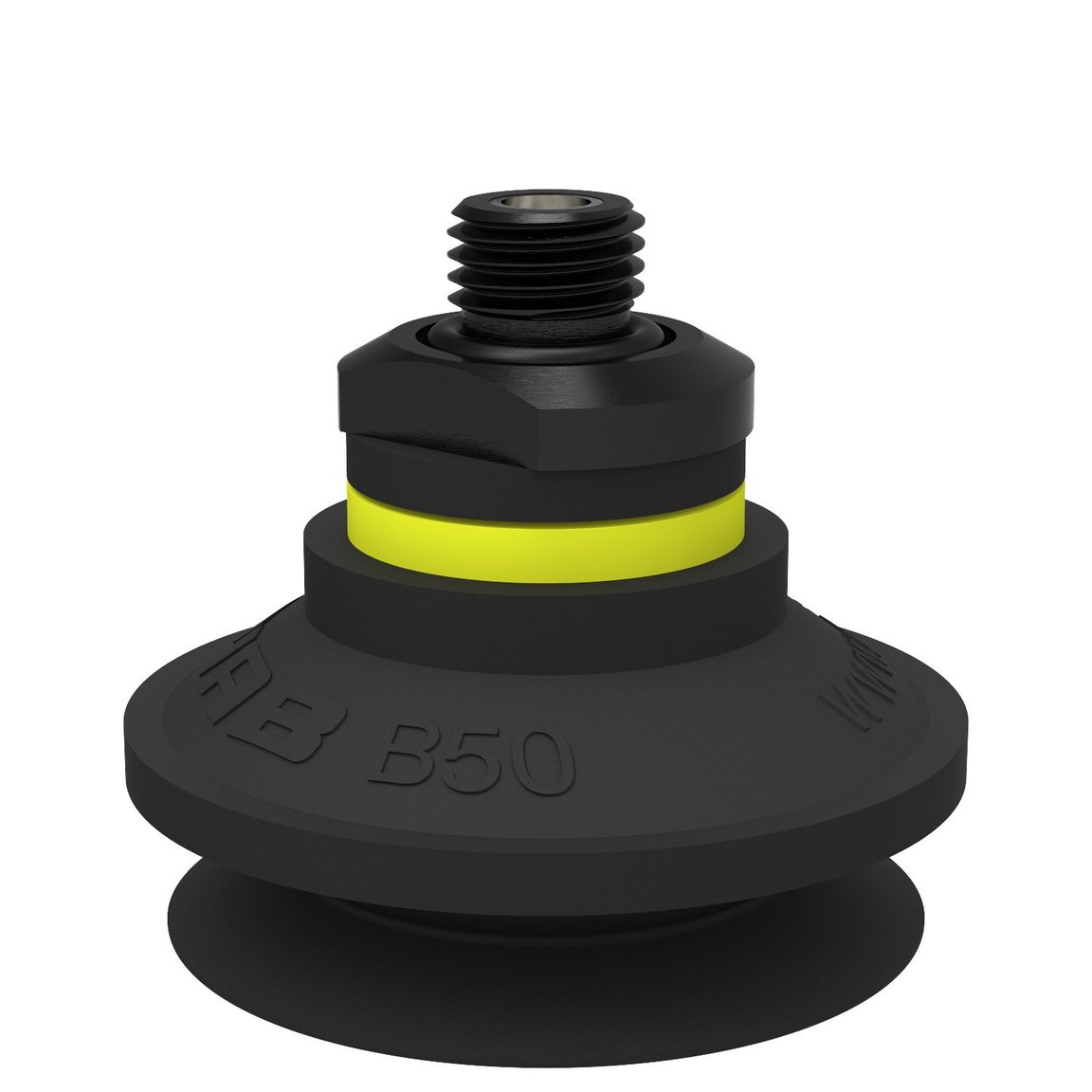

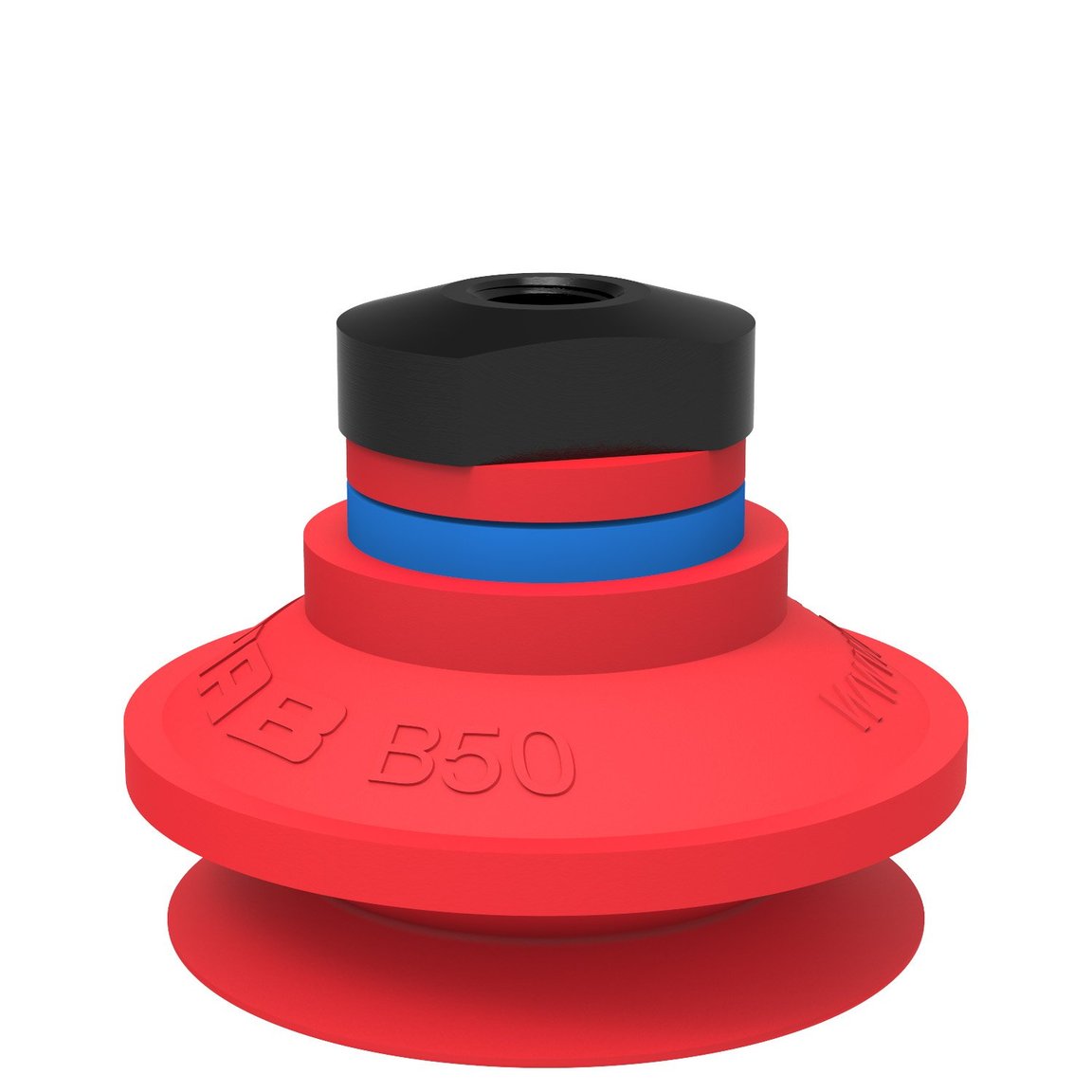

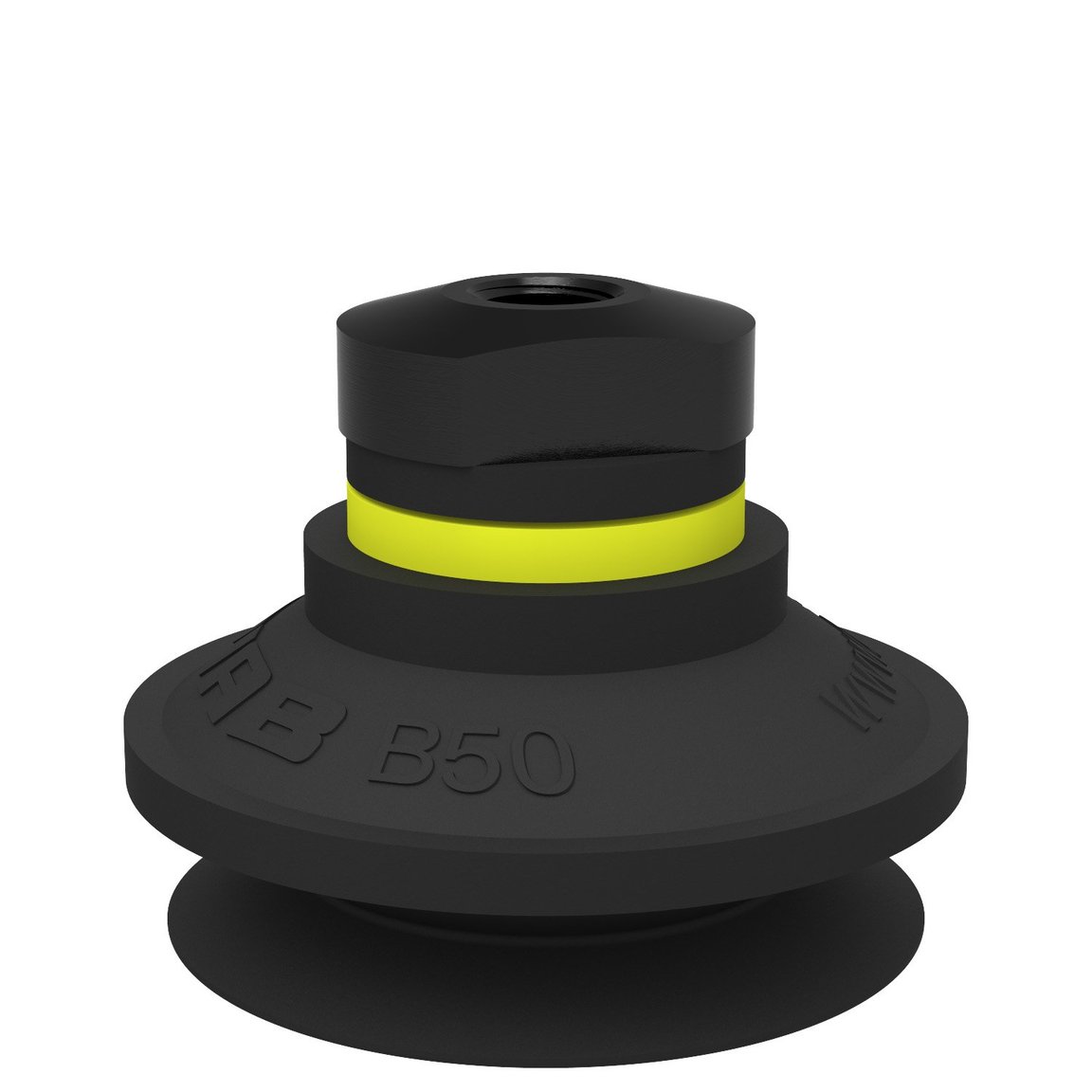

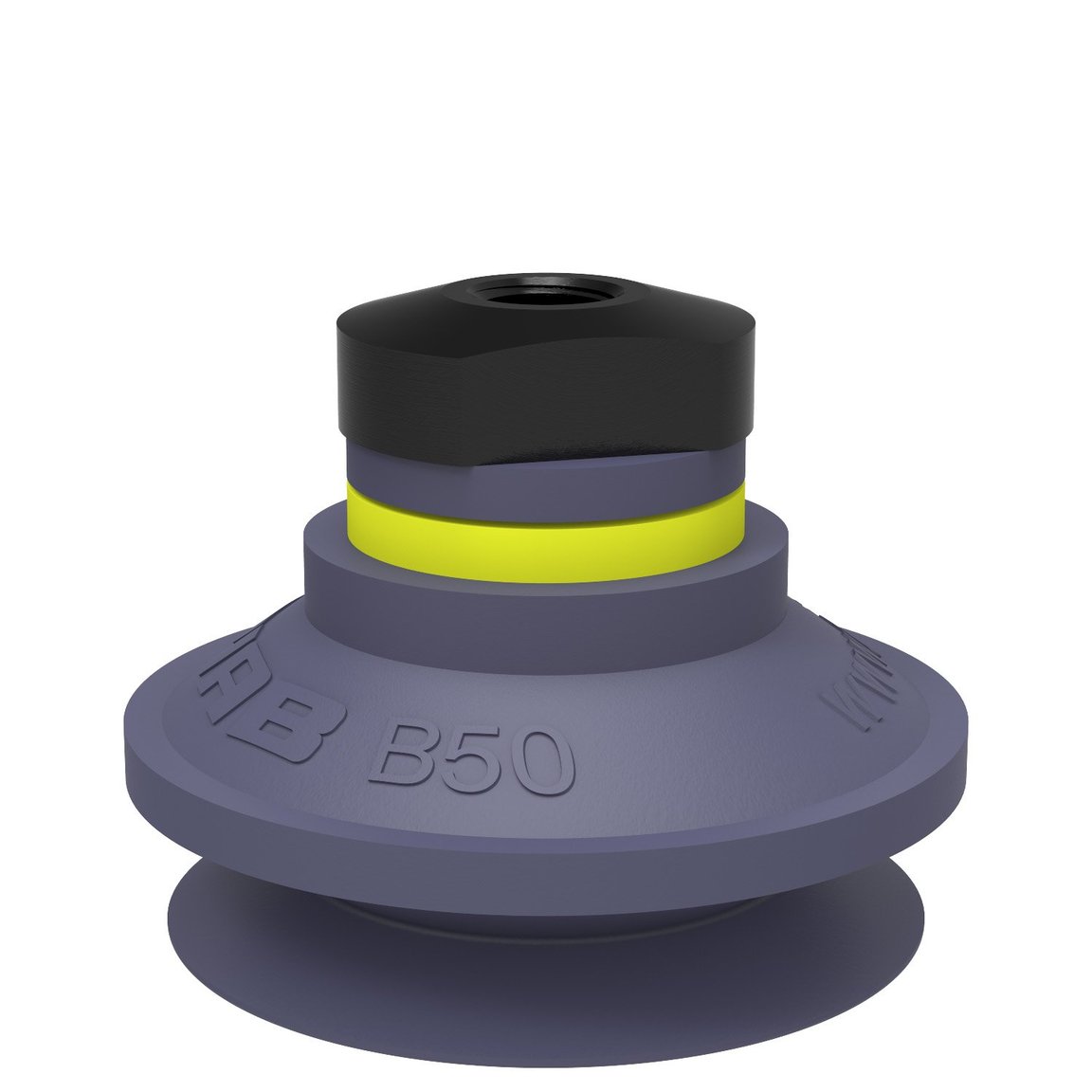

Suction cup B50 Nitrile-PVC
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting moveme...
Read more
Login or create account to access all our content and features!
Variants
0101107
0101108
0101630

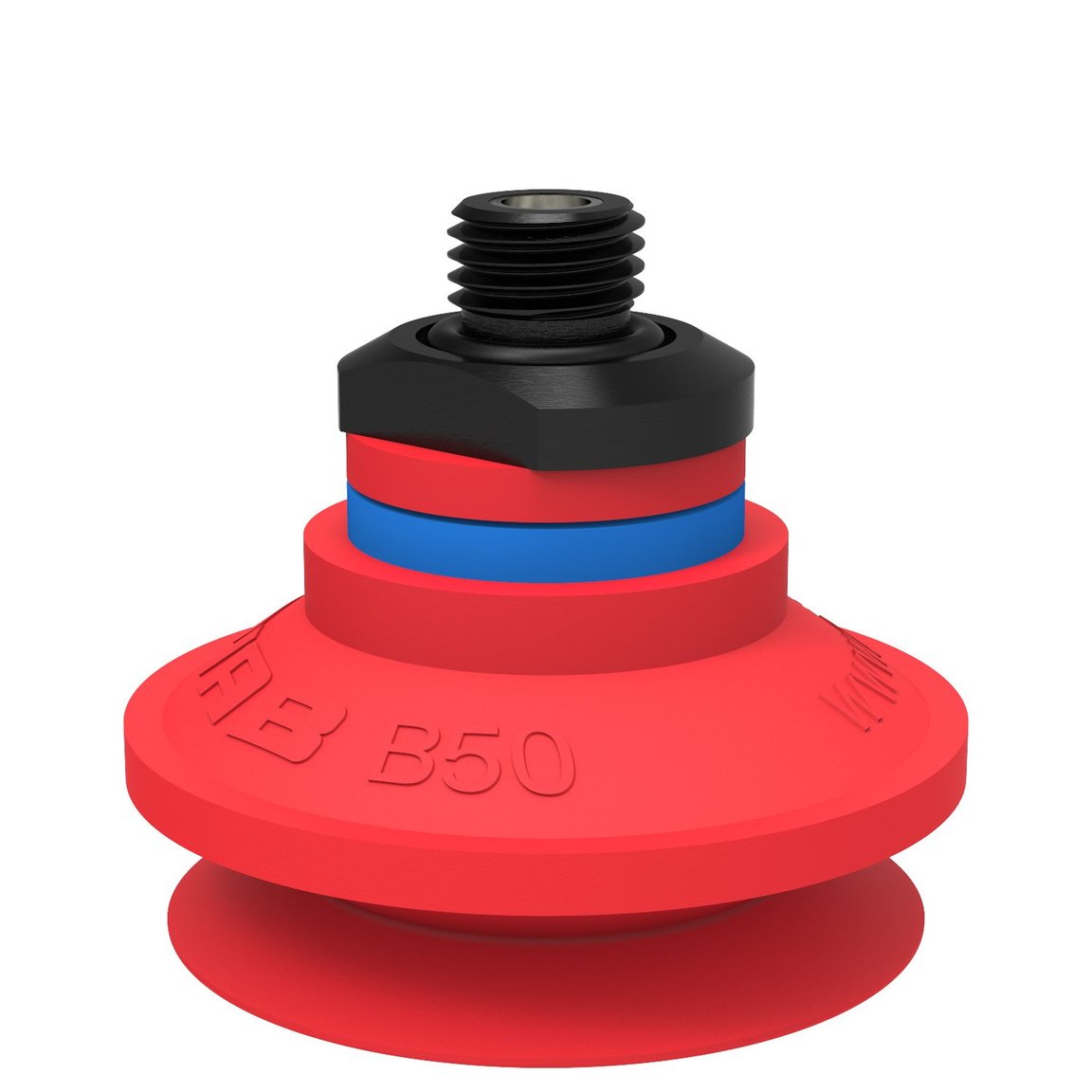

0101631

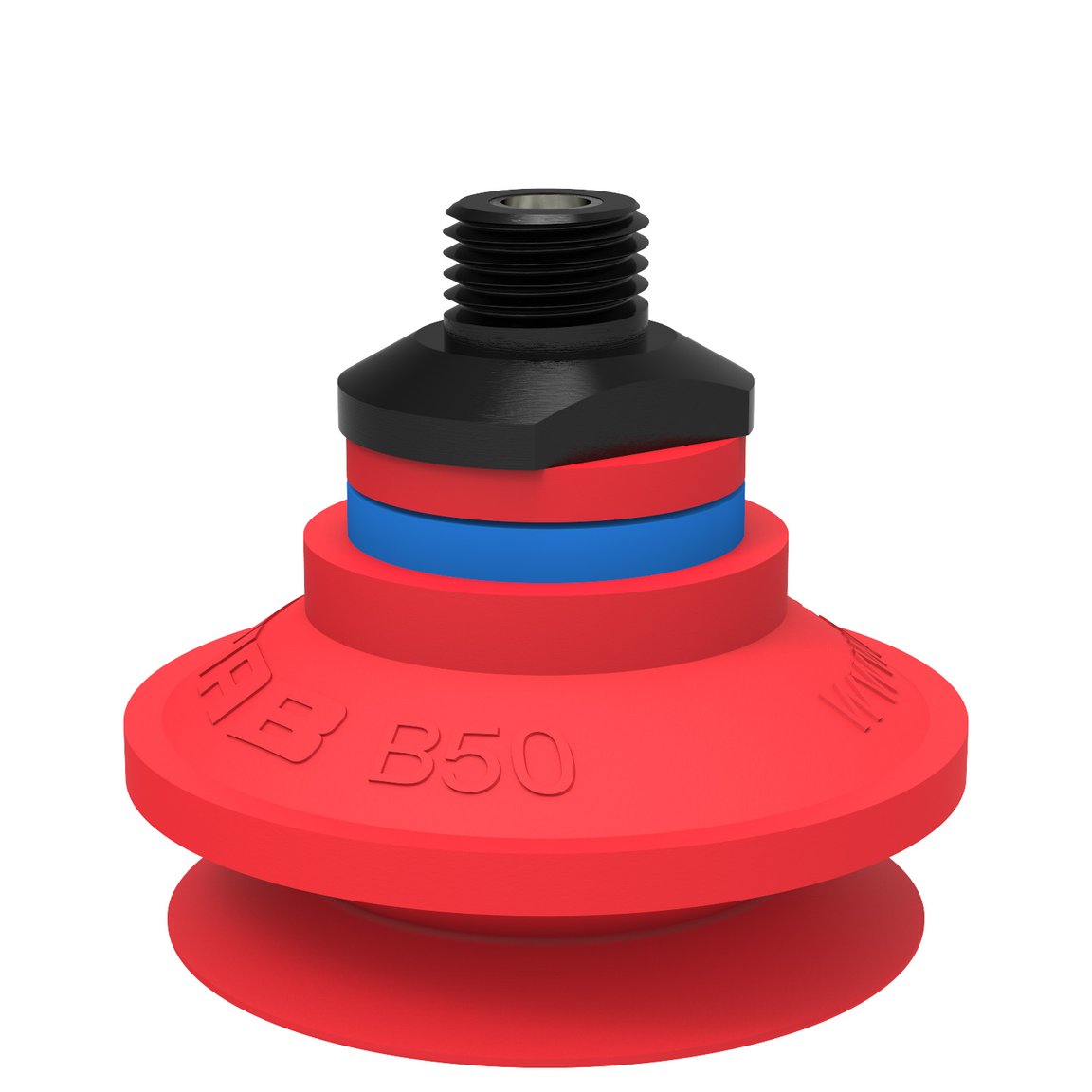

0101632
0101633
0101634

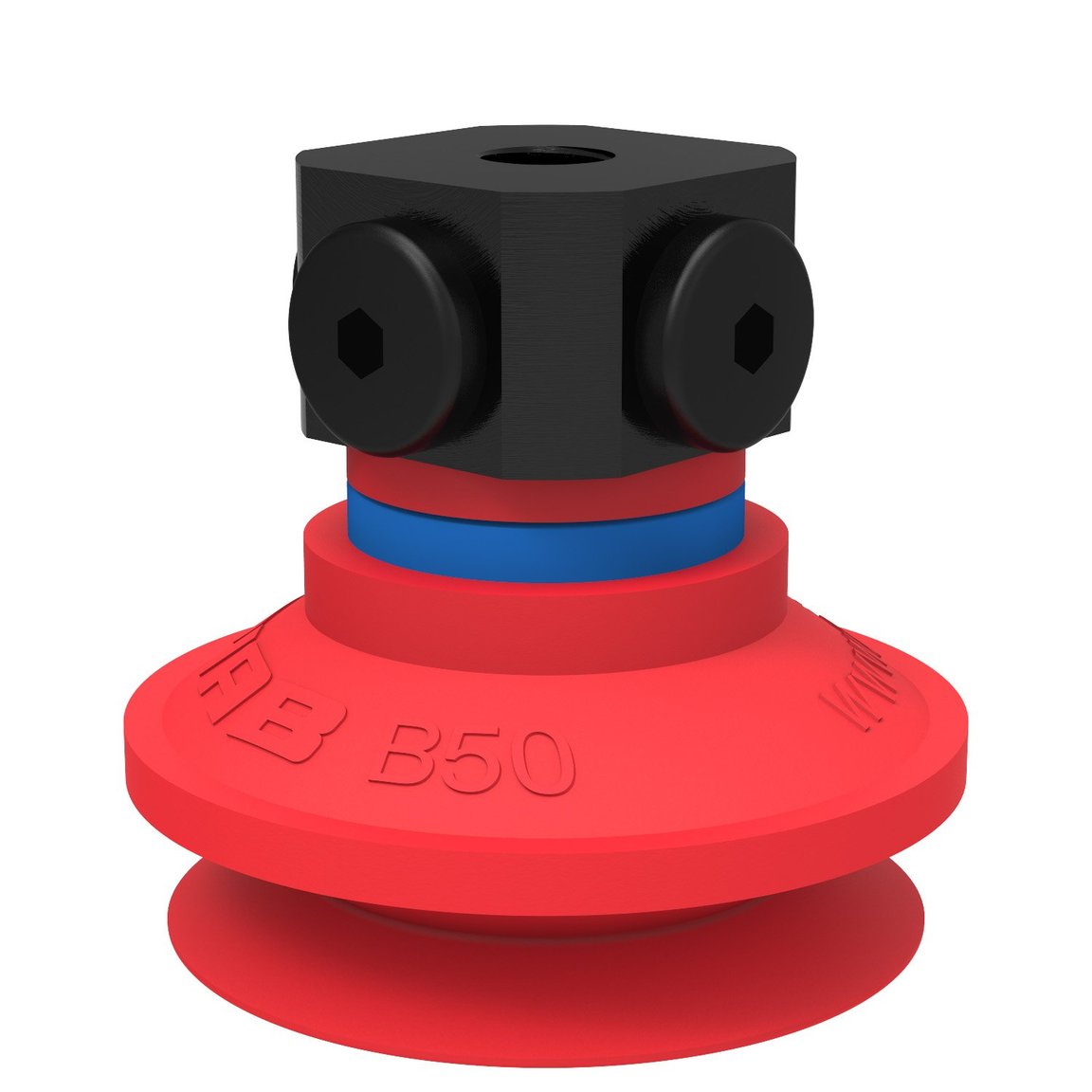

0101635

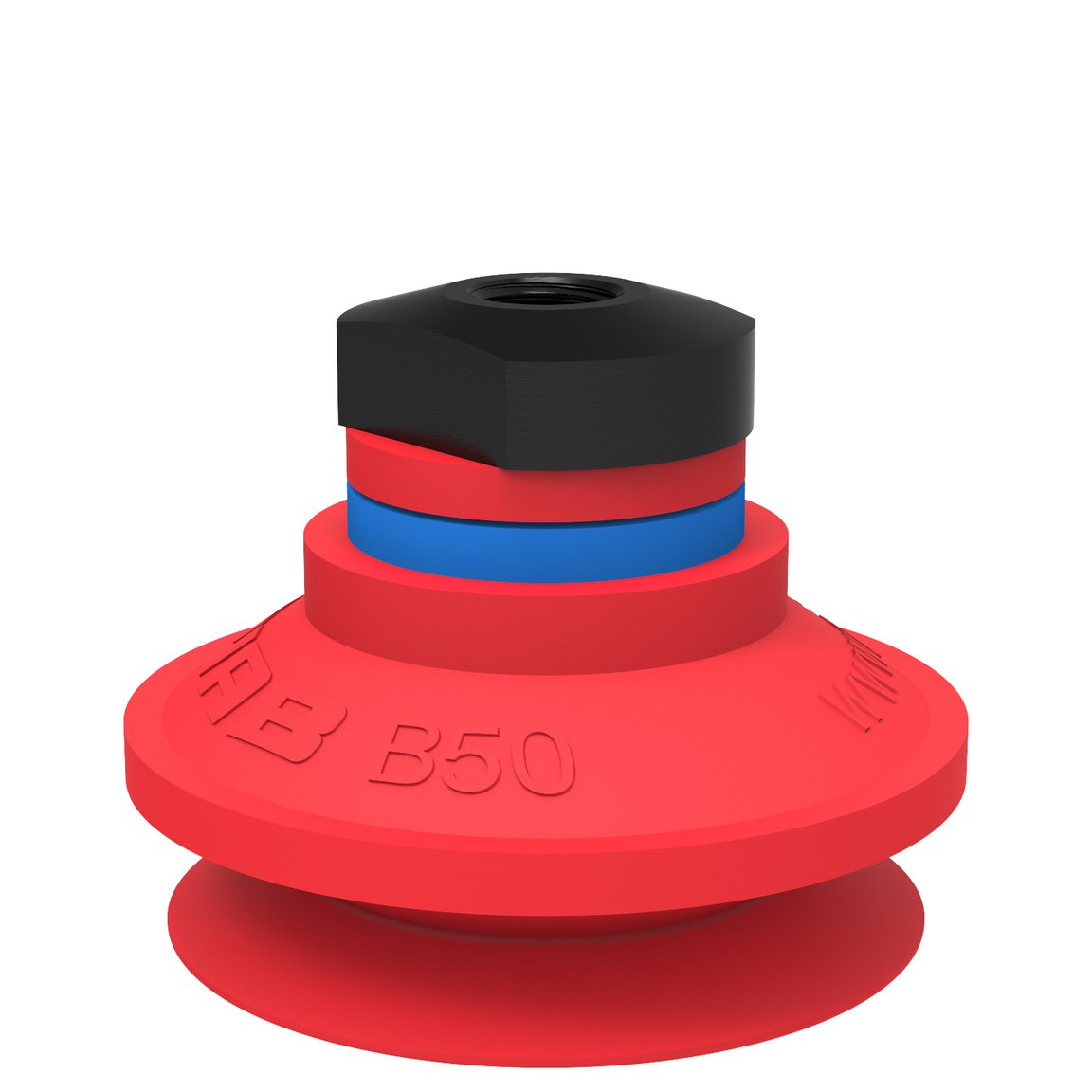

0101636
0101637
0101638
0101639

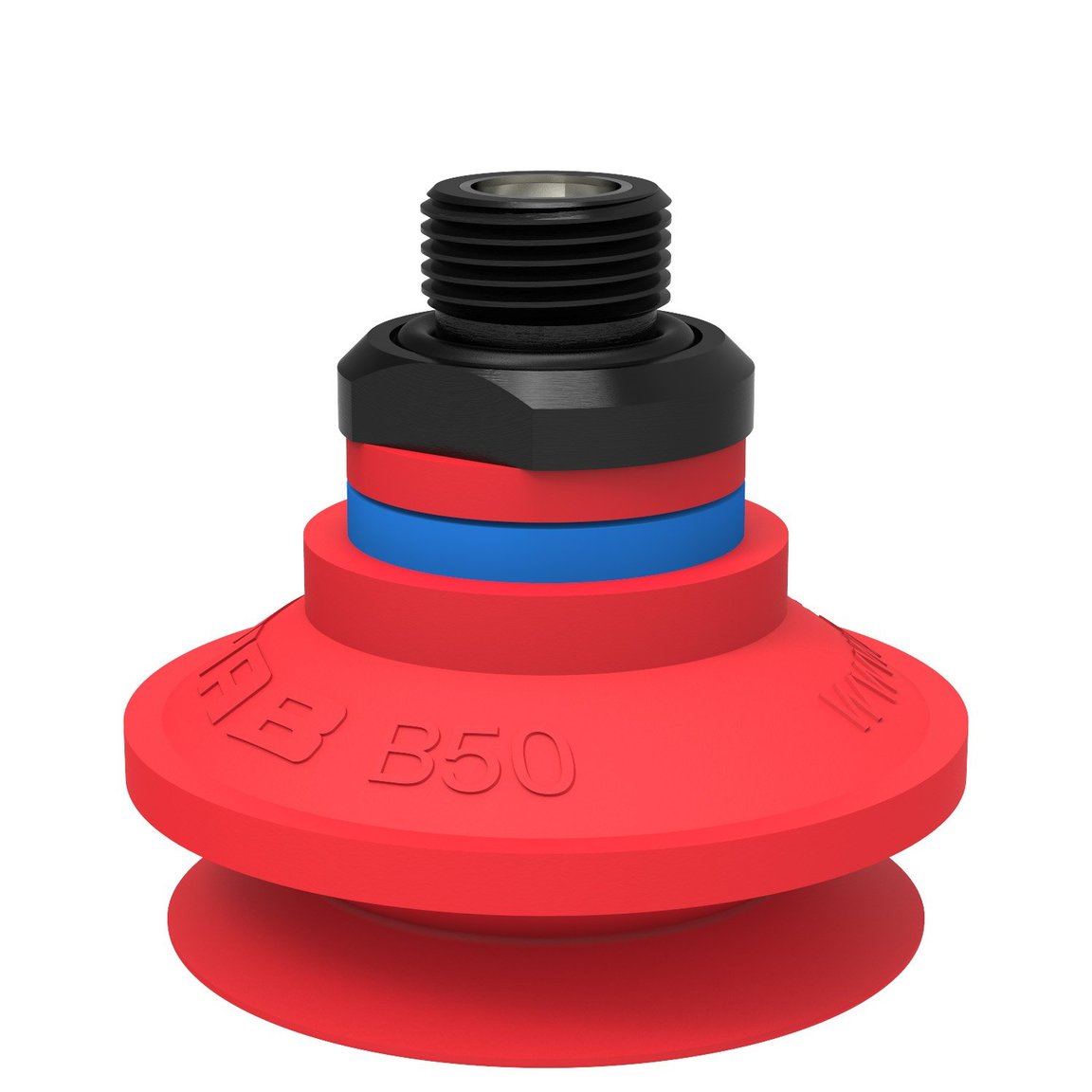

0101640

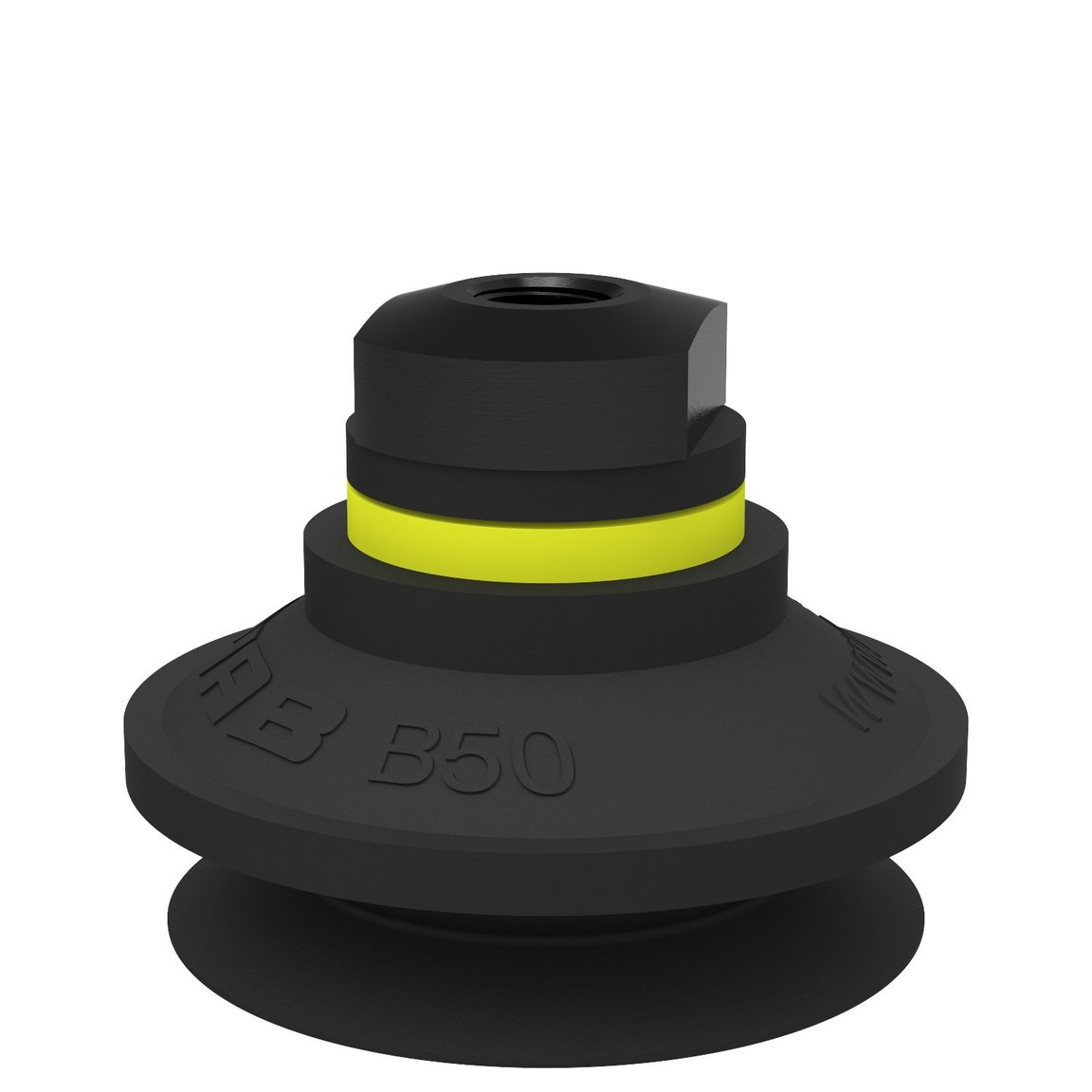

0101643
0101644

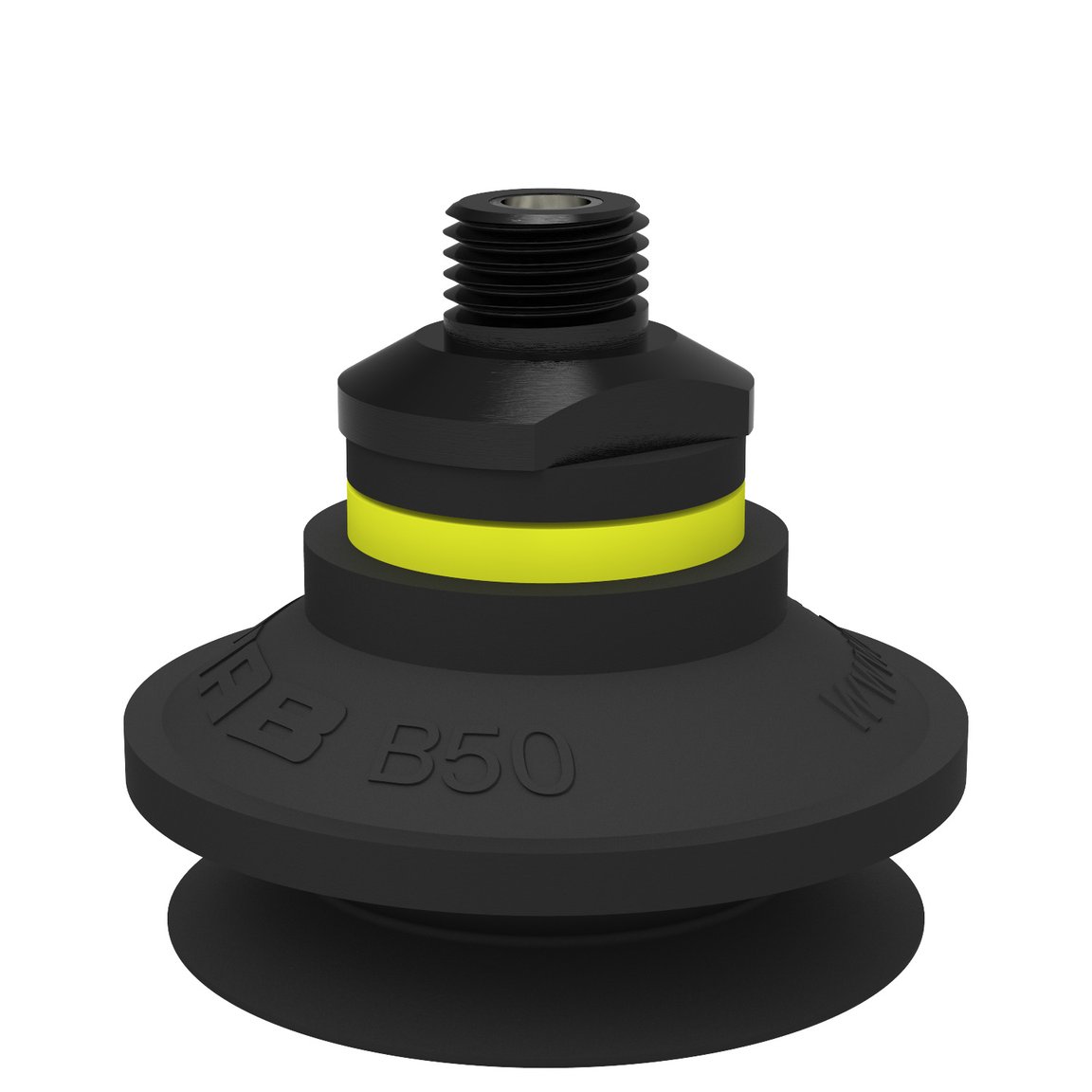

0101645

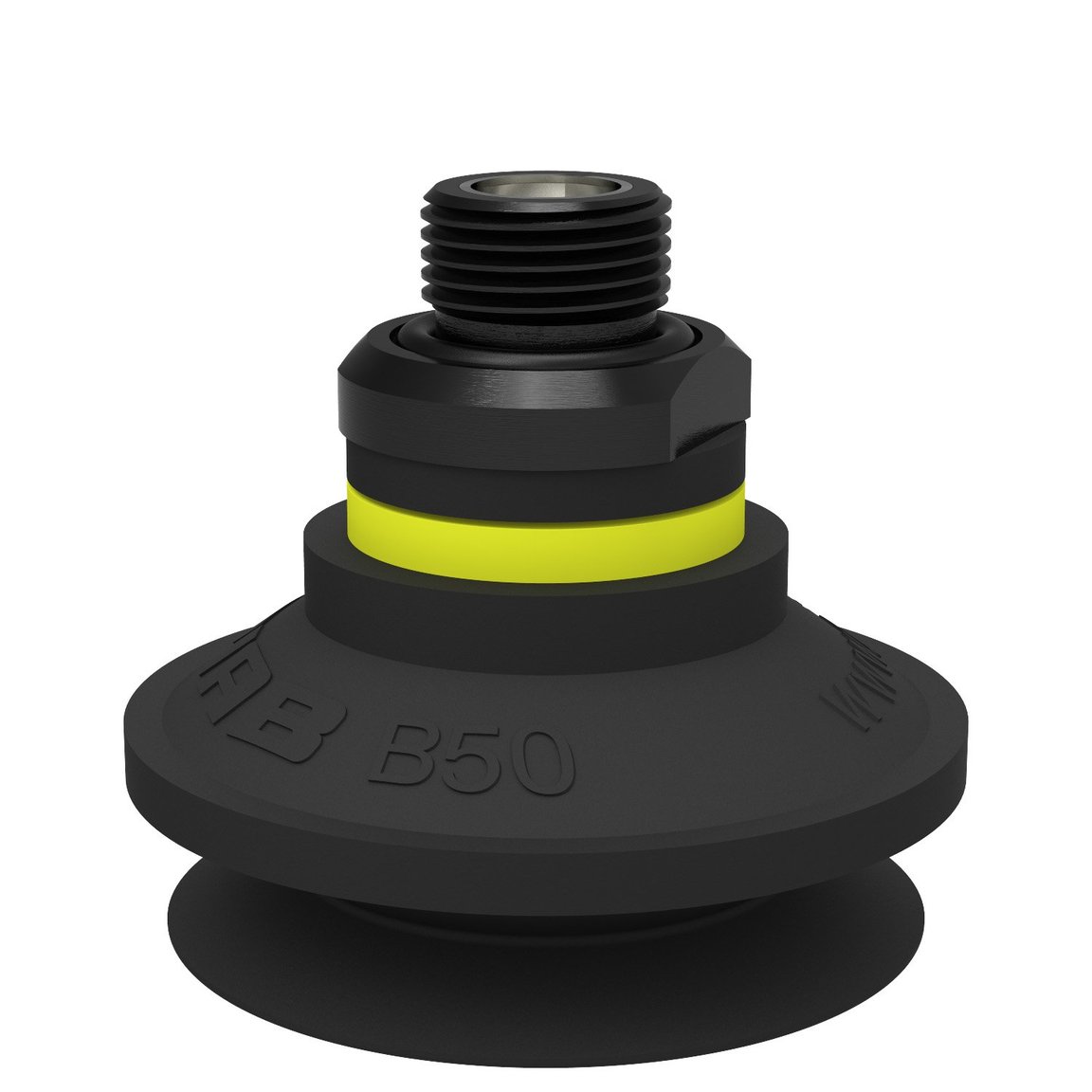

0101646
0101647
0101648
0101649
0101650
0101651
0101652

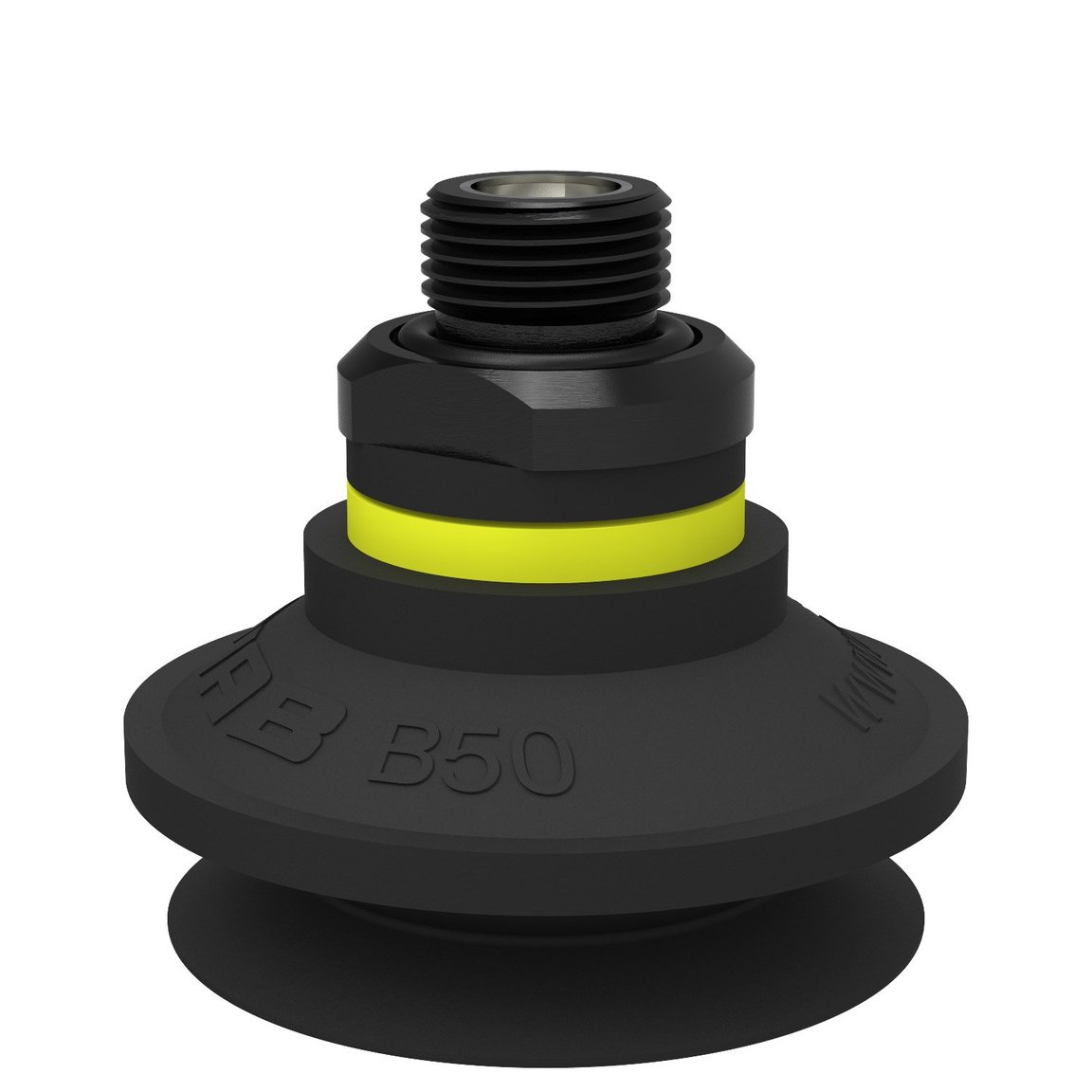

0101653
0108165

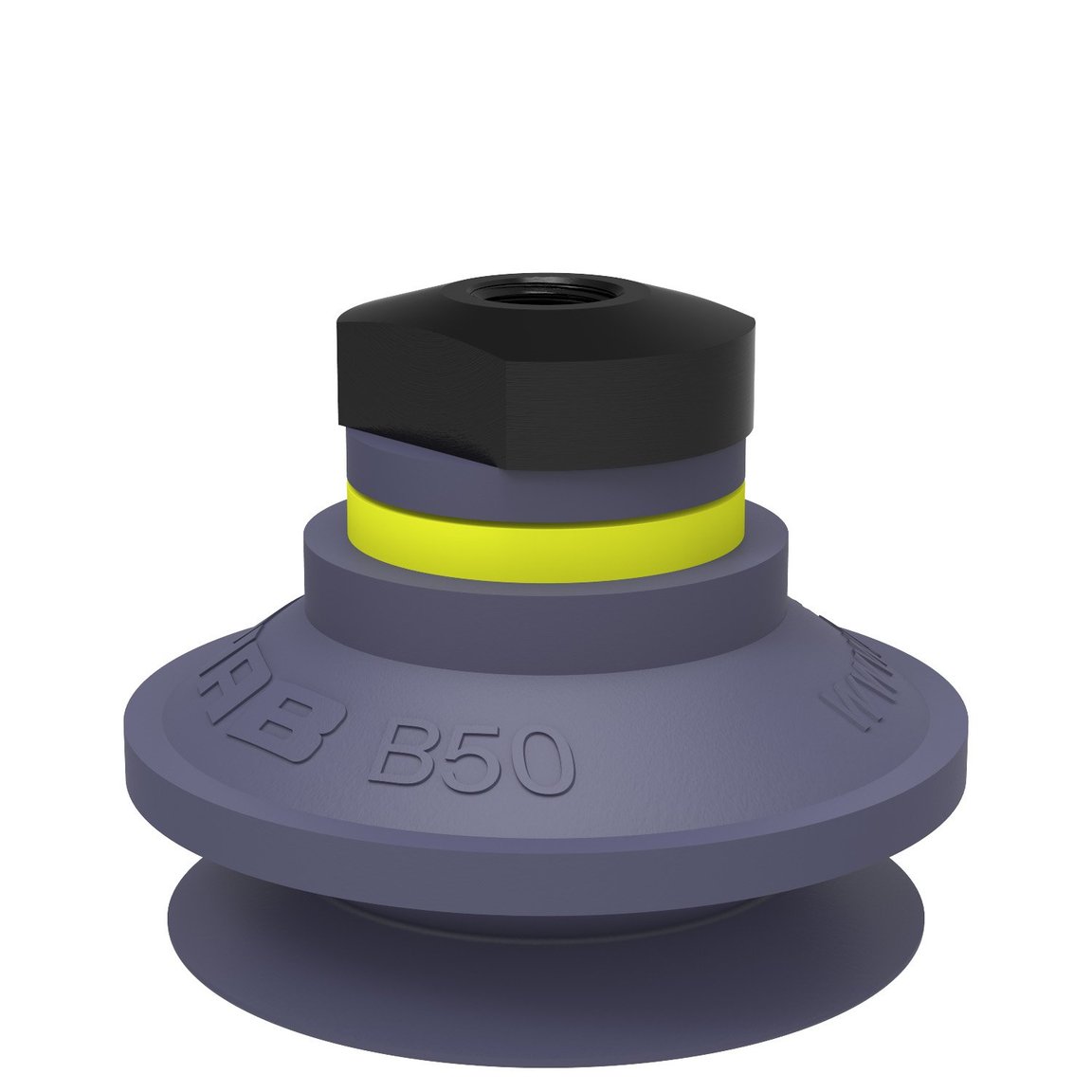

0108171

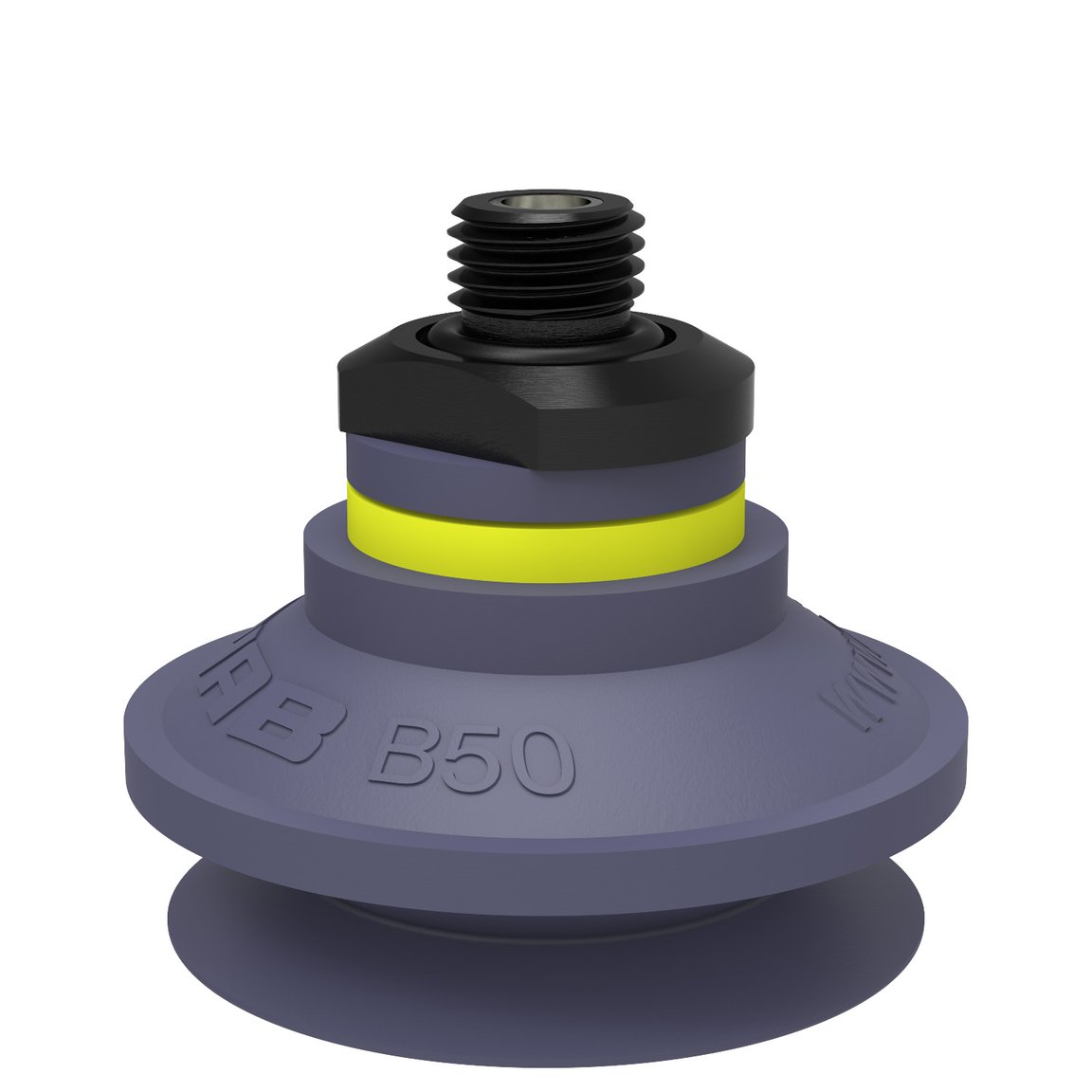

0108172
0108173

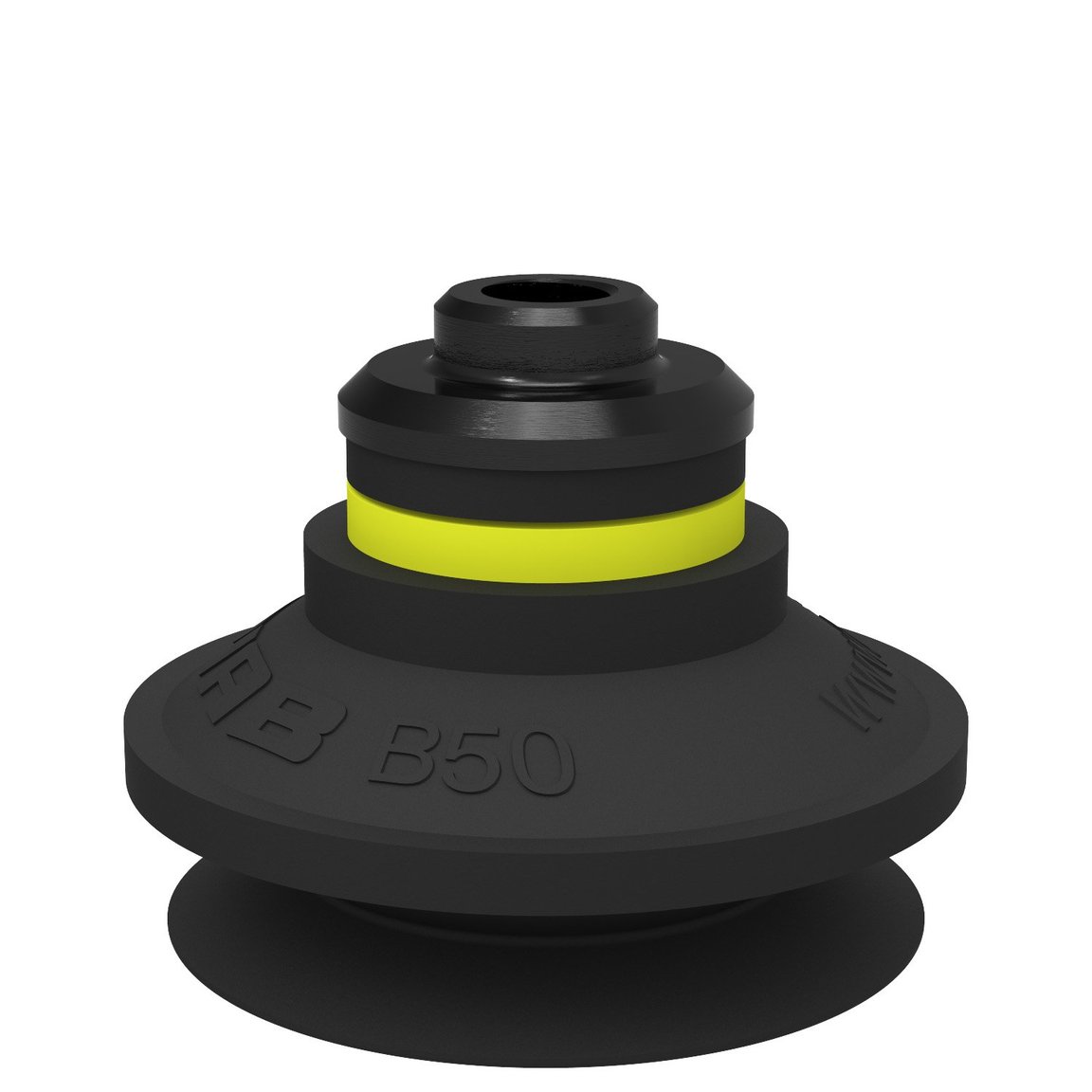

0111063
3150028SA
9908740
9906290

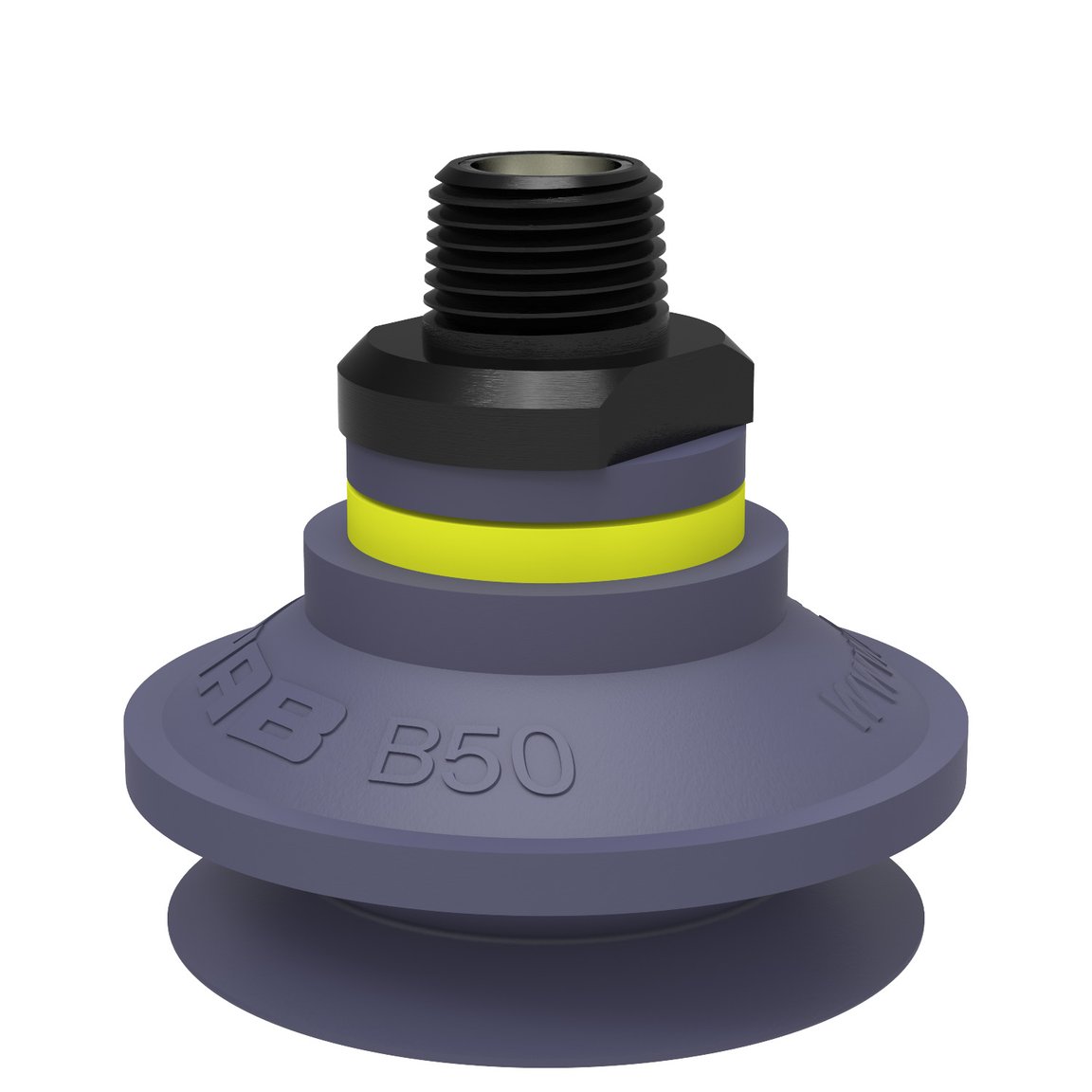

9908627

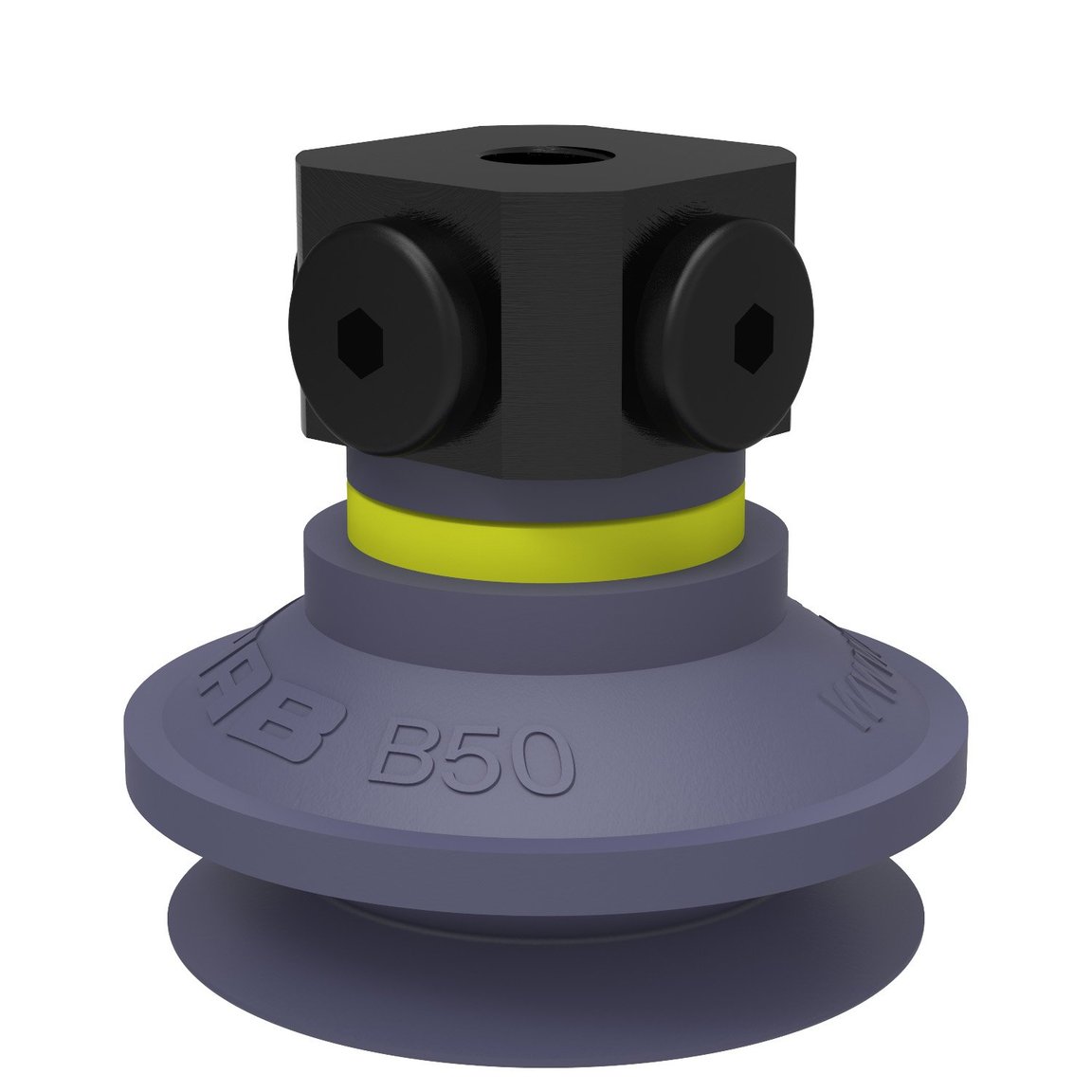

9908789
9908790
9908791
9908796
9908792

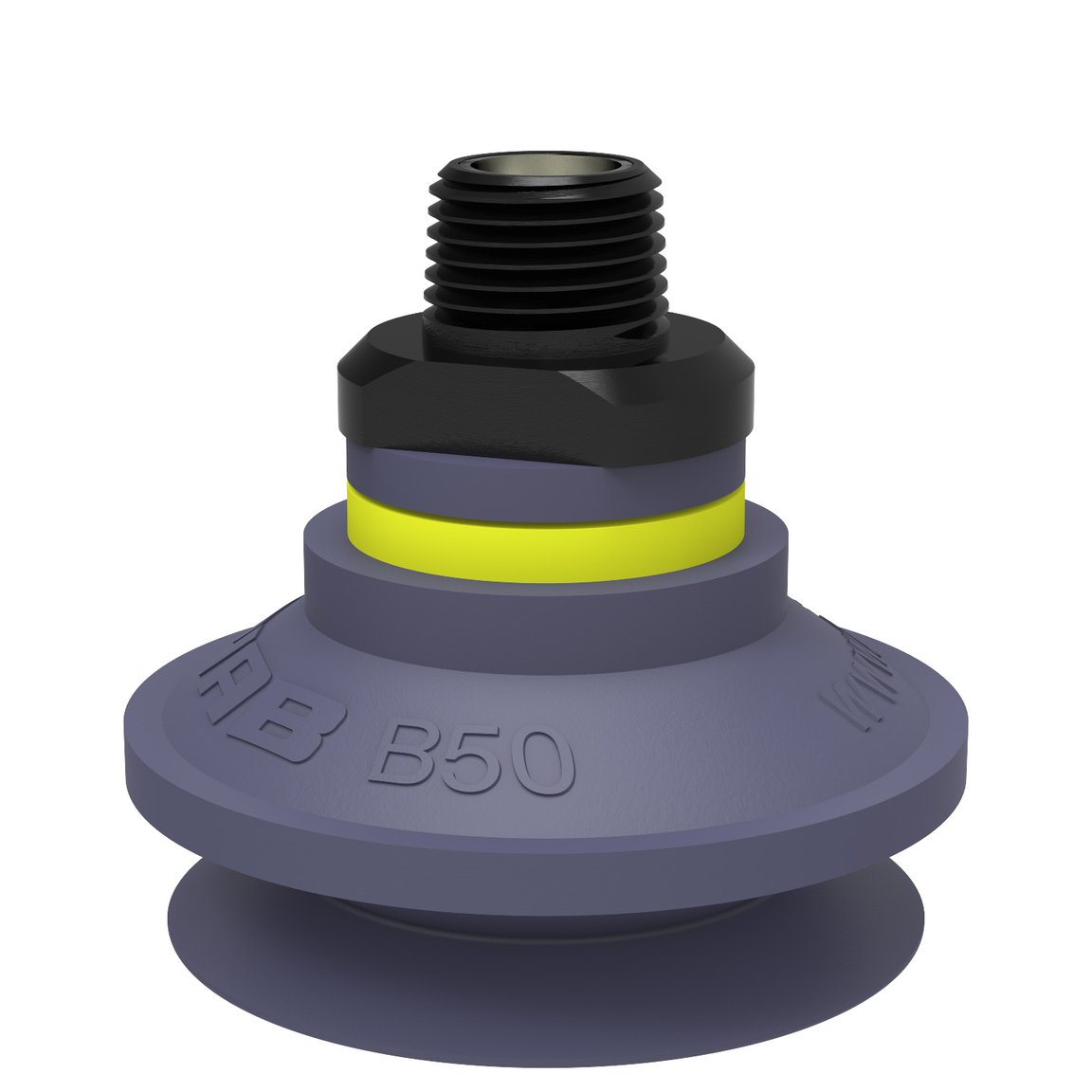

9908793

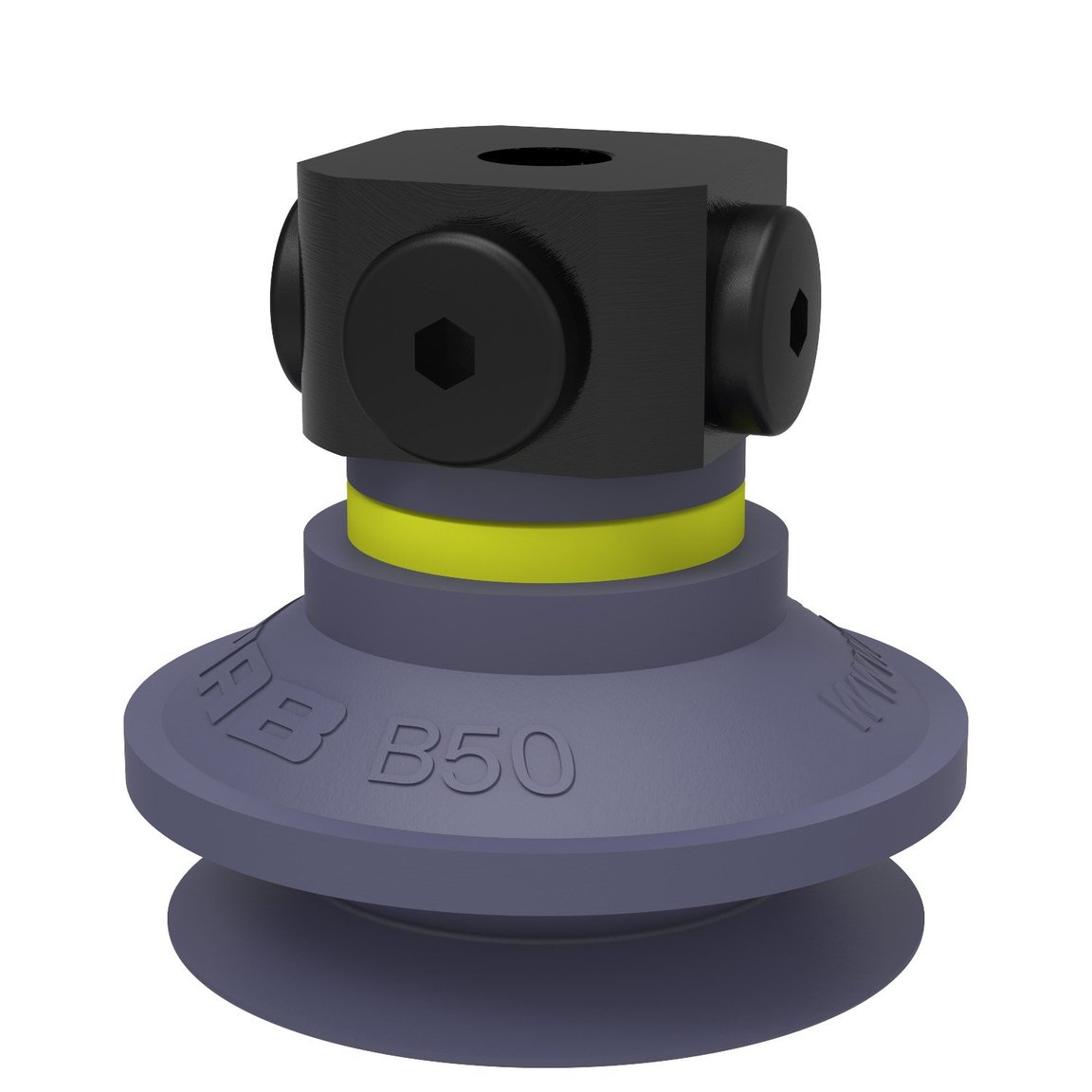

9908794
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
Nitrile-PVC (NPV)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
B
Volume
32 cm³
Weight, min.
20 g
Fitting
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Dimension
Height
35.3 mm
Outer diameter, min.
53 mm
Performance - lifting forces
B50
20 -kPa
33 N
24.2 N
60 -kPa
65 N
51.2 N
90 -kPa
82 N
60.8 N
Material
Name
Nitrile-PVC (NPV)
Colour
Black
Temperature
0 - 90 °C
Hardness
50 °Shore A
Material resistance
Alcohol
Concentrated acids
Ethanol
n/a
Hydrolysis
Methanol
n/a
Oil
Oxidation
Petrol
Wear resistance
Dimensional drawings
