Suction cup OBF65X170P Polyurethane 55/60, 3/8^" NPT female

Select variant

•

  0122289

  Suction cup OBF65X170P Polyurethane 55/60, 3/8^" NPT female
  Compare
•

  0119131

  Suction cup OBF65x170P Polyurethane 55/60, G3/8^" female
  Compare
•

  0119129

  Suction cup OBF65x170P Polyurethane 55/60, G3/8^" male, with mesh filter
  Compare
•

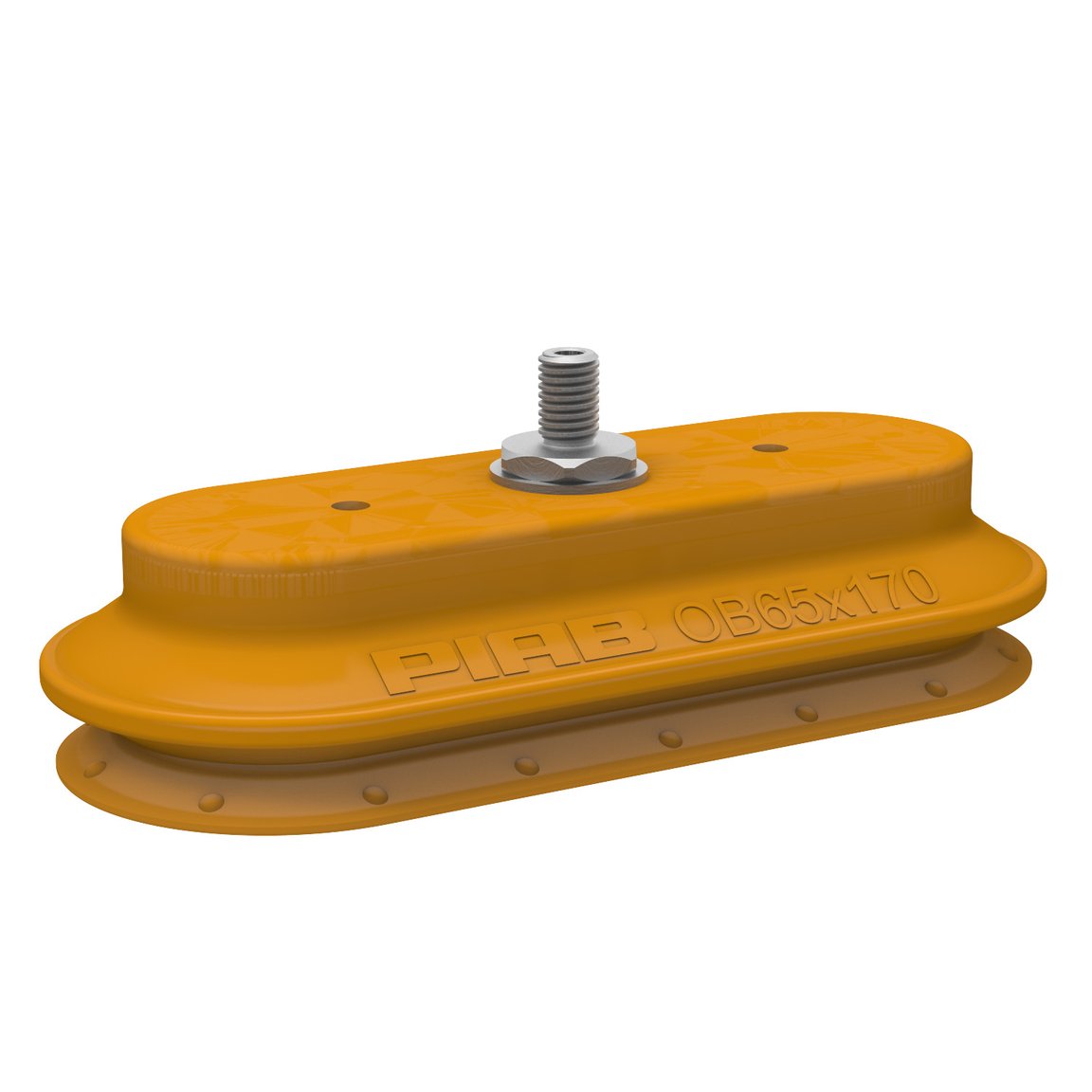

  0121438

  Suction cup OBF65x170P Polyurethane 55/60, M10x1.5 male
  Compare
•

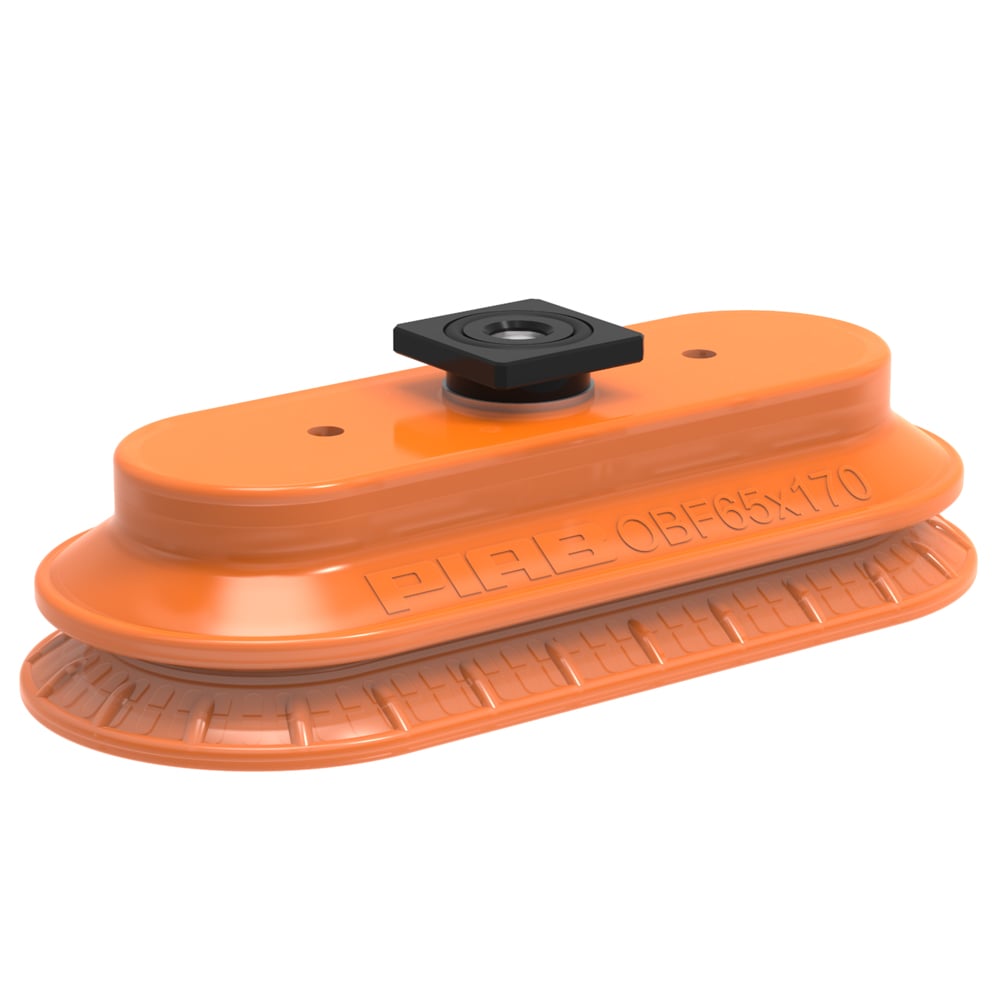

  0213932

  Suction cup OBF65x170 Polyurethane 55/60, T-slot with mesh filter
  Compare
•

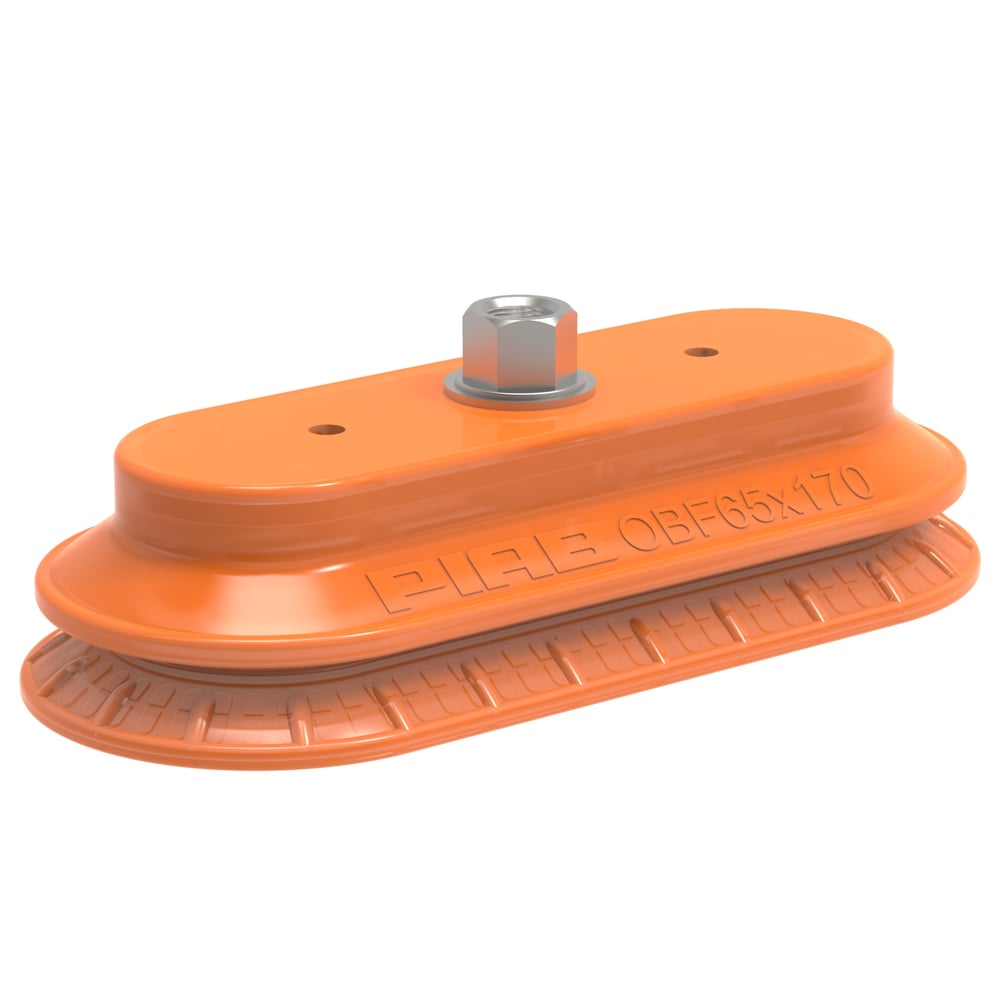

  0213918

  Suction cup OBF65x170P G1/4^" Female
  Compare

Features

• Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
• Normal wear on friction cup will not affect the long term shear force performance.
• Best choice if > 0,1g/m2 press oil is used on the sheet.
• Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
• The "OBF" design is suitable  for oblong objects with domed and flat surfaces, such as those encountered with body parts in the automotive industry.
• Can handle objects with height differences.
• Fitting option, male G3/8", with a swivel function prior to the locking operation, for easy positioning of the oval cup.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
