Item number: 0117337
3 Variants

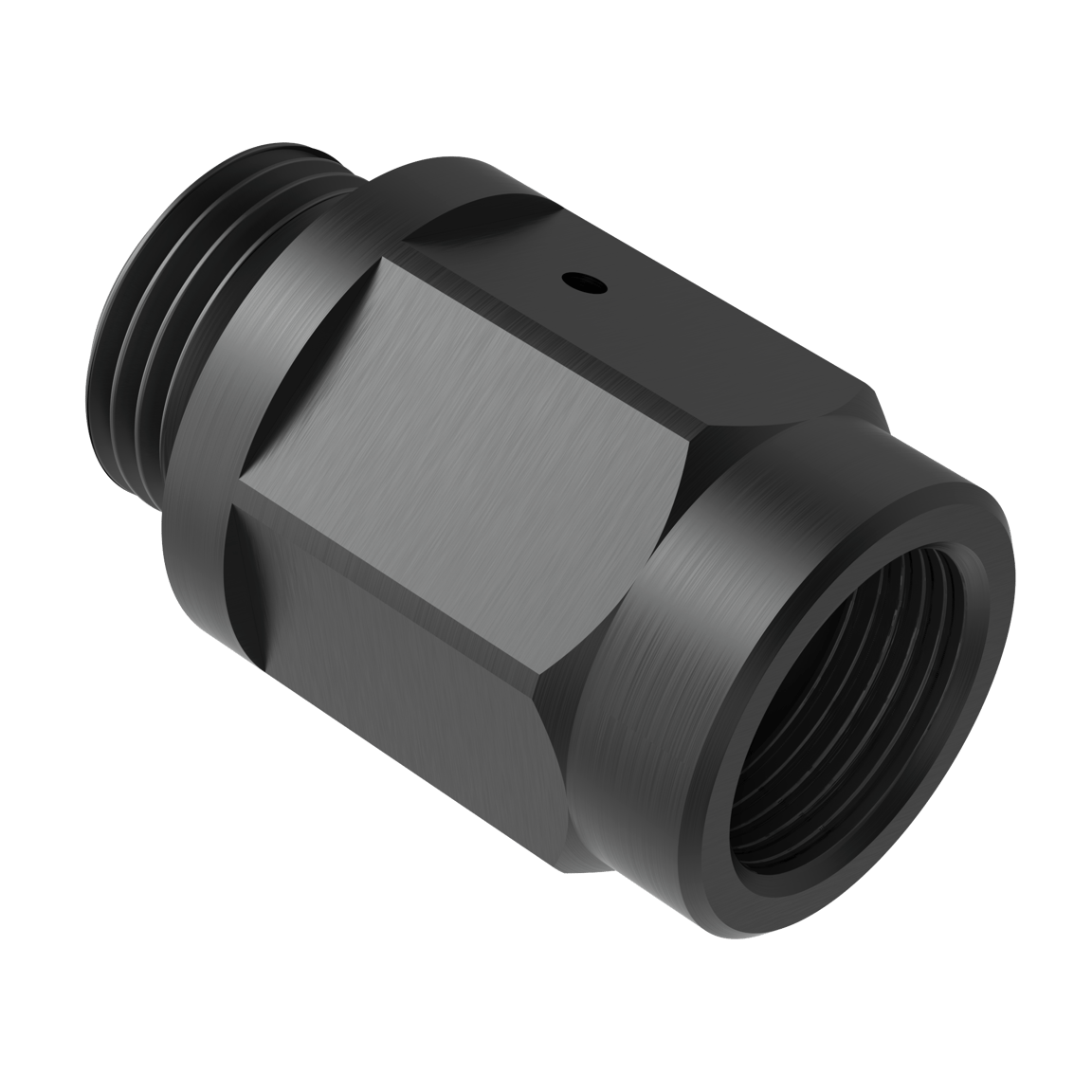

Blow-off Check valve G1/4" female
Our suction cup valves are a group of products that serve to save energy in various applications at the suction cup.
Login or create account to access all our content and features!
Variants
0115314
0117337
0120181
Features
- Prevents vacuum from being pulled through the blow-off lines, which means faster response time and completely independent vacuum units.
- Reliable quick-release function even in larger systems with several units, due to the very low feed pressure required to break away for blow-off.
- Suitable in applications where cleaning of the suction cup filters or cooling of the object to be picked is important.
General
Material
Al , HNBR , Nitrile (NBR) , PA , POM , SS , Steel
Temperature
-10 - 80 °C
Weight, min.
10.4 g
Performance
Feed pressure
0.1 - 0.7 MPa
Feed pressure, optimum
0.3 - 0.6 MPa
Pneumatic data
Flow rate
1.3 - 2.8 Nl/s
