Item number: 0213358
15 Variants

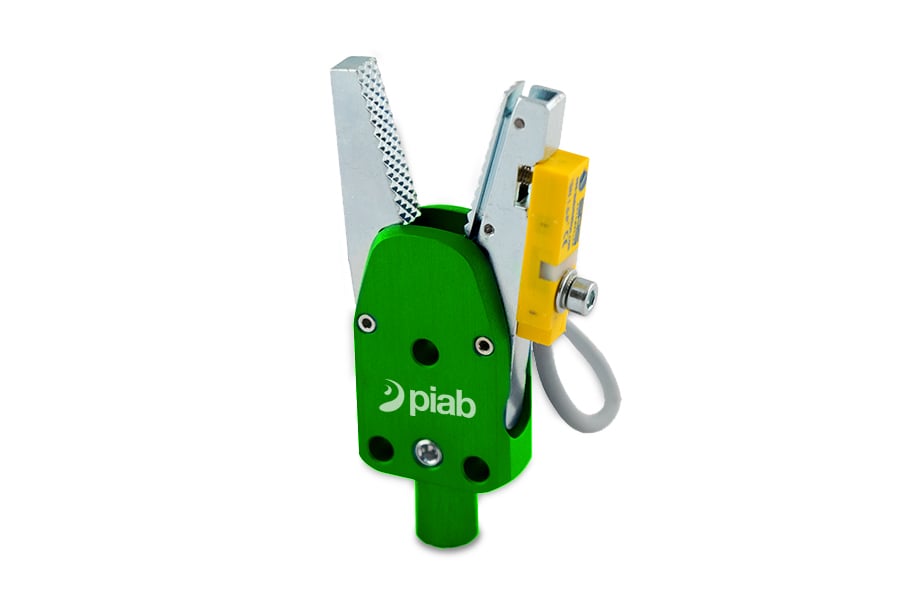

GRZ 10-10 C-N Sprue/Part Plier with knurled jaws and NPN sensor
Login or create account to access all our content and features!
Variants
0213190
0213196
0213202
0213344
0213353- 0213358
- 0213396
0213468- 0213469
- 0213478
- 0213741
0213750- 0213751
- 0213752
- 0213753
Features
- The Standard-Type jaws come with a knurled pattern on the jaw-face to better grip the sprue / part.
- Single action spring return function.
- Fully compatible with SAS's modular EOAT/gripper system.
- Anodized Finish.
- Requirement – Maximum air pressure 87 psi (6 bar).
- Requirement – filtered dry air.
Dimensions DWG
Diameter
10 mm
Diameter
4.2 mm
Height
58 mm
Height
13.5 mm
Height
20 mm
Length
185 mm
Length
75 mm
Length
75 mm
Length
4 mm
Length
22 mm
Thread
M5 in
Width
45 mm
Width
25 mm
Width
21 mm
EOAT (End Of Arm Tooling)
Force
20 N
Sensor type
SP1,5/SN1,5
General
Weight, min.
82 g
