Item number: 0213242
4 Variants

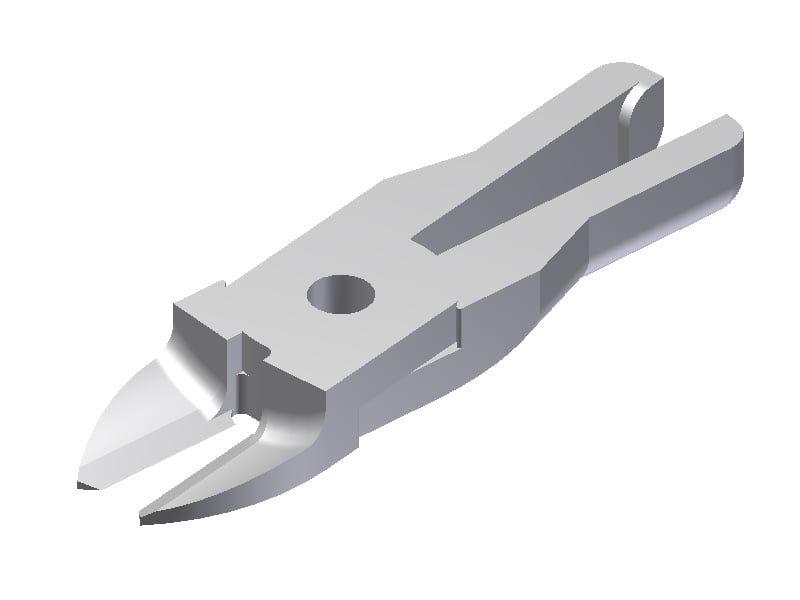

FN10 Blade
Login or create account to access all our content and features!
Variants
0213242
0213243
0213244
0213245
Features
- Can be used on SN cutters.
- Pushes up close to part when cutter strokes in.
- Pulls cut material away from part as cutter returns.
EOAT (End Of Arm Tooling)
Blade opening (C)
3.5 mm
Cutter body size
3
Pivot location (A)
24 mm
Dimensions DWG
Length
11 mm
General
Weight, max.
0 g
Dimensional drawings
