Item number: 0214451
5 Variants
ISC 8-20 Indexing Cylinder
Allows for indexing motion on linear bearings.
Adjustable end stop.
Double acting.
*Optional sensor: RRK-93, RRK-93-TP, RRK-M9P, or RRK-M9P-TP
Requirements:
Ma...
Read more
Login or create account to access all our content and features!
Variants
0214450
0214451

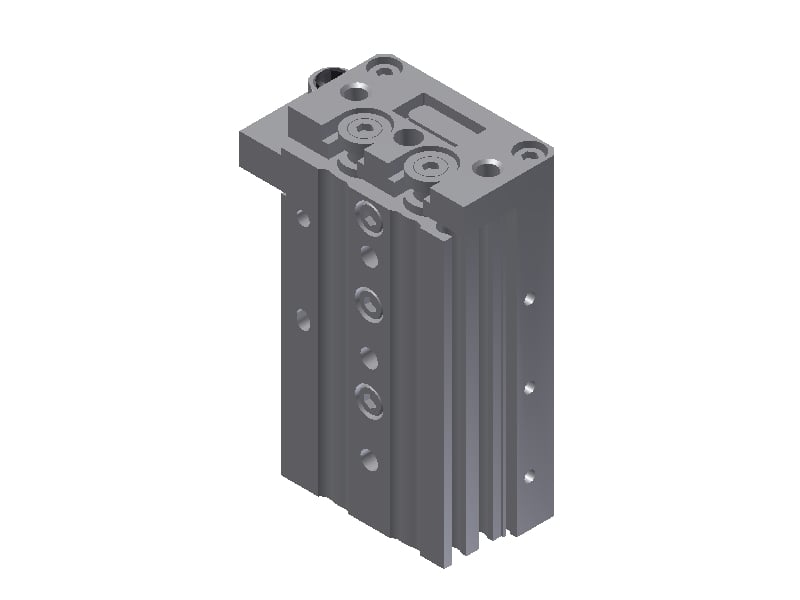

0214452

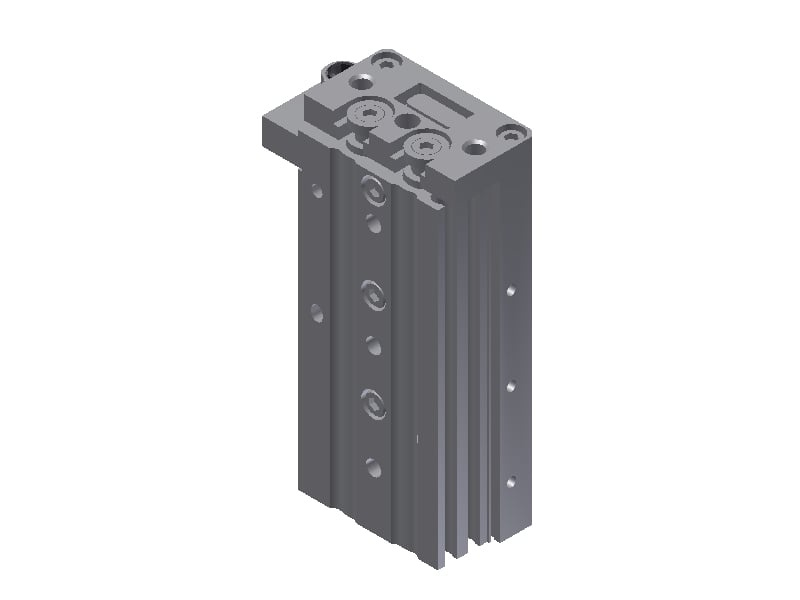

0214453

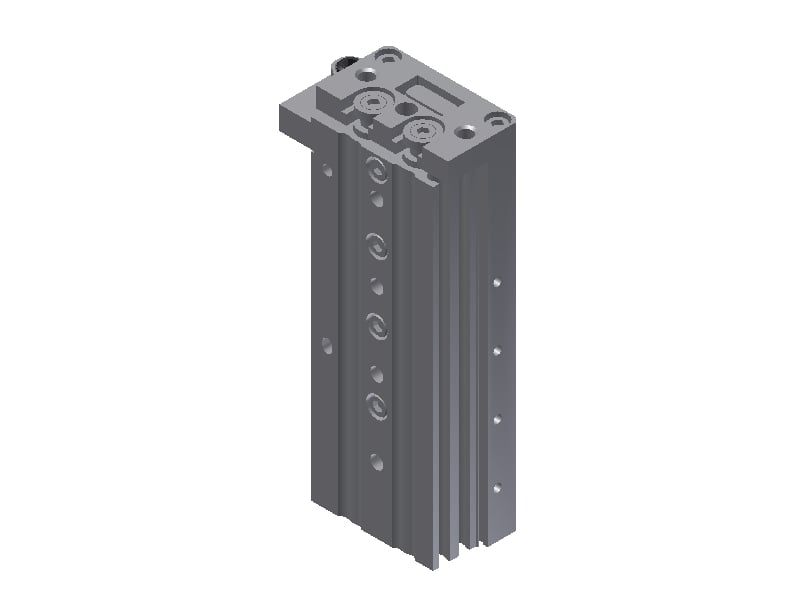

0214454
Features
- Allows for indexing motion on linear bearings.
- Adjustable end stop.
- Double acting.
- *Optional sensor: RRK-93, RRK-93-TP, RRK-M9P, or RRK-M9P-TP
- Requirements:
- Maximum air pressure 87 psi (6 bar).
- Requires filtered dry air.
Mechanical data
Bore through diameter
8 mm
Dimensions DWG
Length
20 mm
Length
54 mm
Length
61 mm
Length
30 mm
Length
25 mm
Thread
2 in
Thread
4 in
EOAT (End Of Arm Tooling)
Sensor type
RRK-93/ RRK-M9P
General
Weight, max.
160 g
