Item number: 0213144
4 Variants

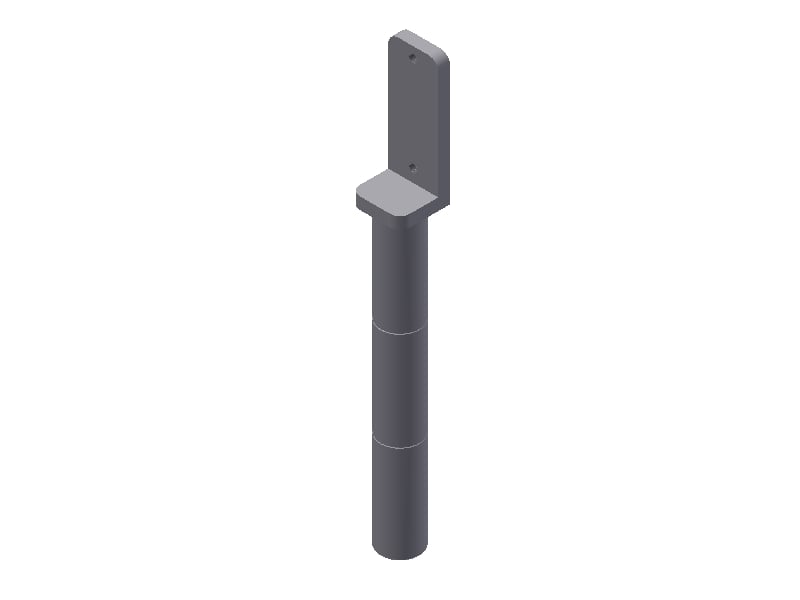

GAZ 32-20-150 Special Cylinder Mounting Arm
Login or create account to access all our content and features!
Variants
0213141
0213142
0213143
0213144
Features
- Mounts SZS Special Cylinders and KHZ Short Stroke Cylinders to our Standard Mounting Clamps and Gripper Mounting Arms.
General
Material
Al
Weight
88 - 88 g
EOAT (End Of Arm Tooling)
Cylinder
SZD 32 / KHZ 32
Dimensions DWG
Diameter
20 mm
Diameter
M5
Height
13 mm
Length
13 mm
Length
64 mm
Length
150 mm
Length
48.1 mm
Length
48.1 mm
Thread
M5 in
Width
64 mm
Width
150 mm
Width
48.1 mm
Dimensional drawings
