Item number: 0213142
4 Variants

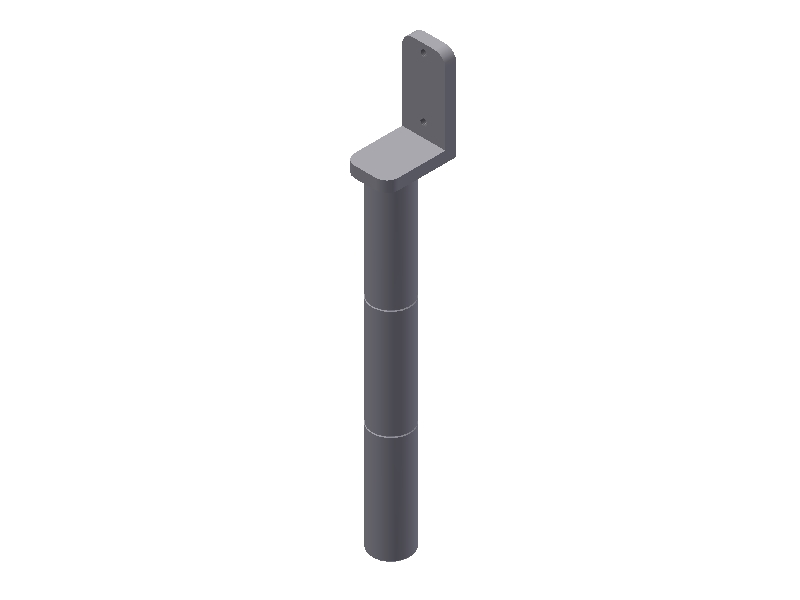

GAZ 12-14-120 Special Cylinder Mounting Arm
Login or create account to access all our content and features!
Variants
0213141
0213142
0213143
0213144
Features
- Mounts SZS Special Cylinders and KHZ Short Stroke Cylinders to our Standard Mounting Clamps and Gripper Mounting Arms.
General
Material
Al
Weight
31 - 31 g
EOAT (End Of Arm Tooling)
Cylinder
SZD 12 / KHZ 12
Dimensions DWG
Diameter
14 mm
Diameter
M3
Height
15 mm
Length
15 mm
Length
25 mm
Length
120 mm
Length
22 mm
Length
22 mm
Thread
M3 in
Width
25 mm
Width
120 mm
Width
22 mm
Dimensional drawings
