Item number: 0213140
7 Variants

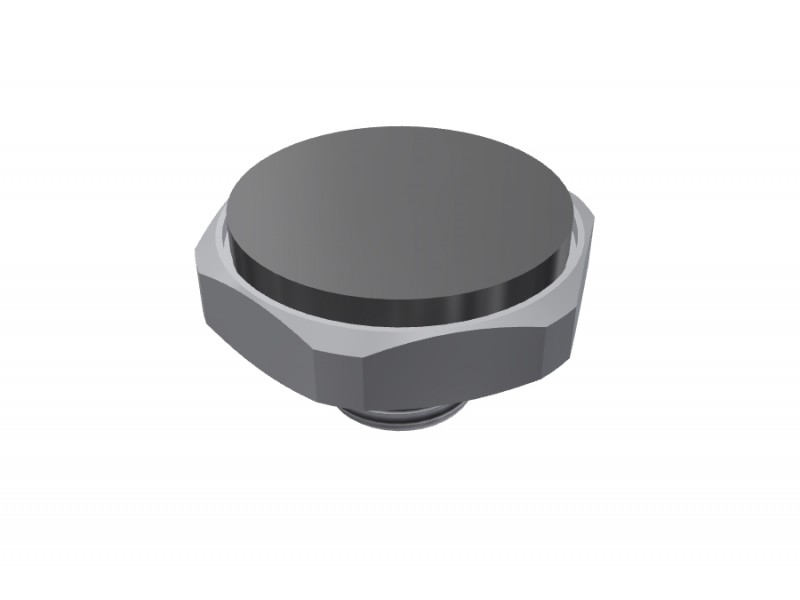

DPL 31-4 Pressure Plate
Login or create account to access all our content and features!
Variants
0213134
0213135
0213136
0213137
0213138
0213139
0213140
Features
- Pad plates for KHZ cylinders or GRF gripper fingers.
General
Material
Rubber
Weight
15 - 15 g
Dimensions DWG
Diameter
31 mm
Diameter
M4
Height
31 mm
Length
10 mm
Thread
M4 in
Width
31 mm
EOAT (End Of Arm Tooling)
Face material
Rubber
