Item number: 0213130
4 Variants

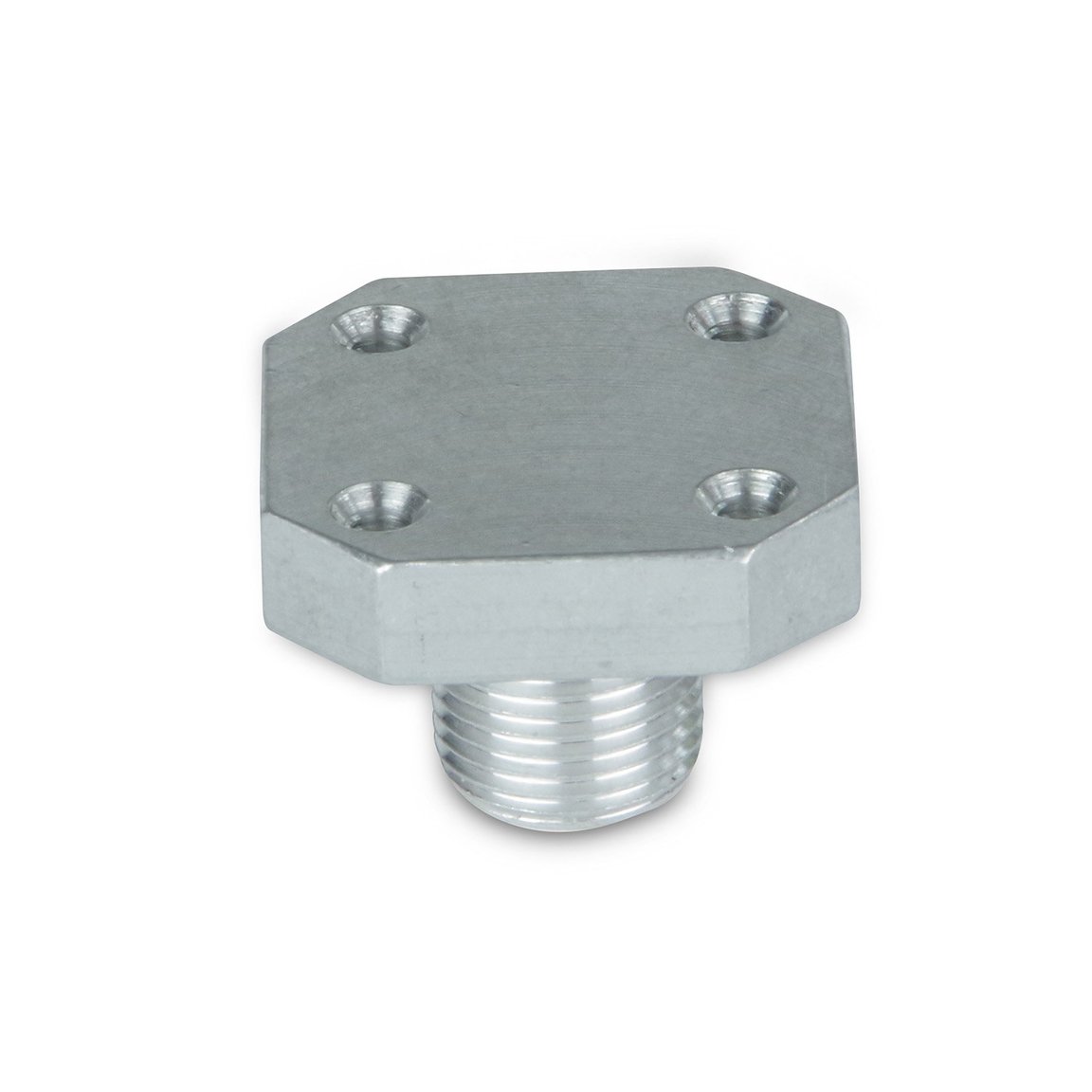

ADZ 14-12 Short Stroke Cylinder Adapter
Login or create account to access all our content and features!
Variants
0213130
0213131
0213132
0213133
Features
- Allows KHZ cylinders to attach to standard VLR Arm Extensions and mount in standard mounting clamps
EOAT (End Of Arm Tooling)
Cylinder
KHZ 12...
Extension
VLR 14
Dimensions DWG
Height
18 mm
Height
6 mm
Length
25 mm
Length
25 mm
Length
22 mm
Thread
M12 x 1 in
Thread
M3 in
Width
18 mm
Width
6 mm
General
Weight
13 - 13 g
