Item number: 0212944
3 Variants

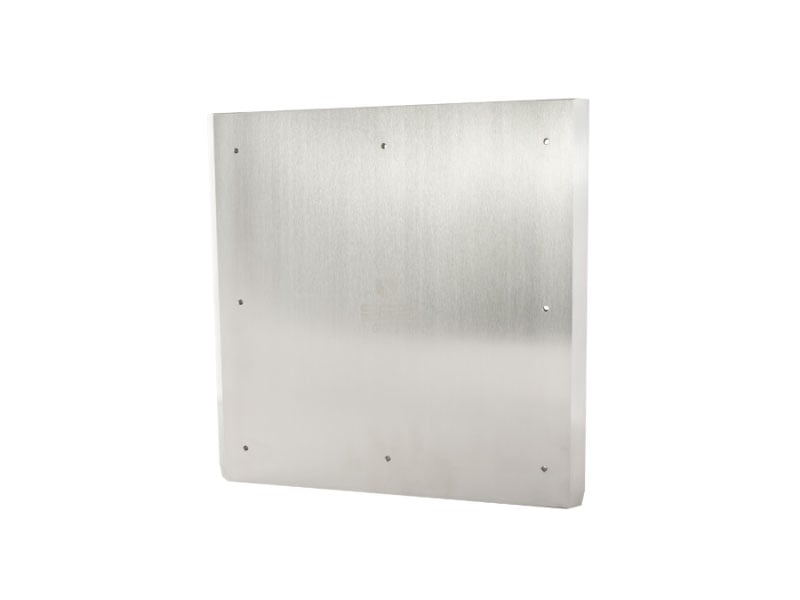

GPM 3 Quick Change Mounting Plate
Login or create account to access all our content and features!
Variants
0212942
0212943
0212944
Features
- Available in standard or X-Type
- Low cost dove-tail mounting plate for grippers
- Can be used with or without SWM Quick Change Chuck
- Lightweight aluminum plates for standard applications
General
Material
Al
Weight
1595 - 1595 g
Dimensions DWG
Height
10 mm
Length
250 mm
Length
200 mm
Width
10 mm
Width
200 mm
EOAT (End Of Arm Tooling)
SWM chuck
SWM 3
