Item number: 0213091
4 Variants

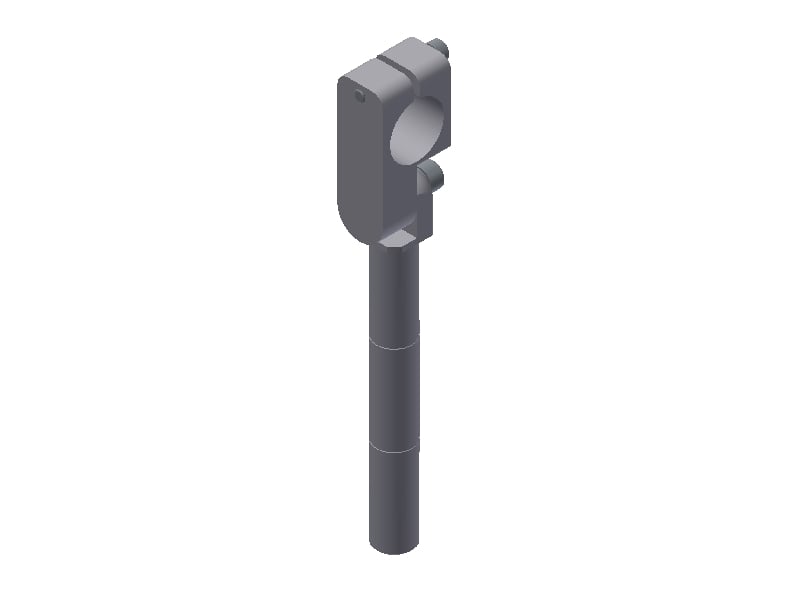

GLA 20/30-150 Elbow Arm
Login or create account to access all our content and features!
Variants
0213089
0213090
0213091
0213092
Features
- Angle adjustable elbow.
- Useful for adjustment of GRZ gripper pliers and GRF gripper fingers.
General
Material
Al
Weight
162 - 208 g
Dimensions DWG
Diameter
20 mm
Diameter
30 mm
Height
25.4 mm
Length
17 mm
Length
63.3 mm
Length
80.3 mm
Length
25.4 mm
Length
150 mm
Width
25.4 mm
Width
63.3 mm
Width
80.3 mm
