Item number: 0214216
5 Variants

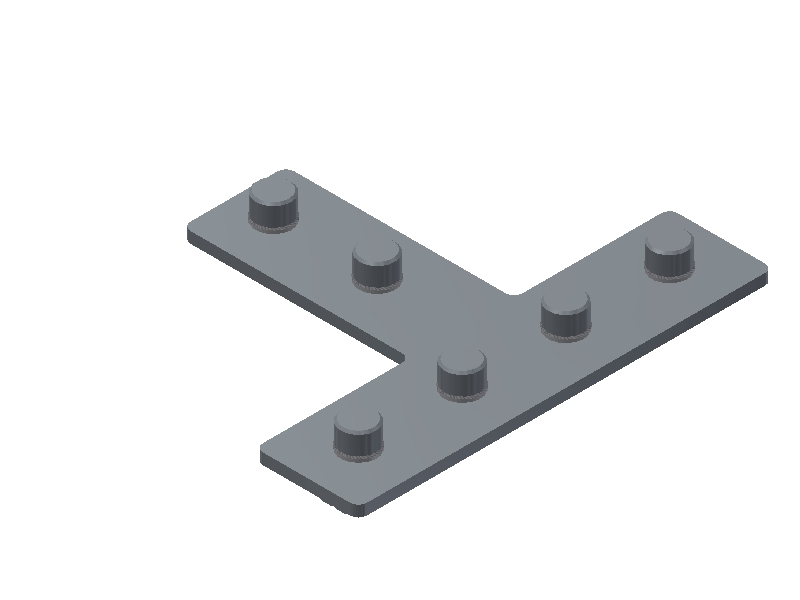

EVT 100/80 D T Connector Plate
Profile is connected perpendicular.
Forms a rigid connection.
Note: Includes screws and channel nuts.
Login or create account to access all our content and features!
Variants
0214214
0214217
0214216
0214218
0214215
Features
- Profile is connected perpendicular.
- Forms a rigid connection.
- Note: Includes screws and channel nuts.
Dimensions DWG
Diameter
5.5 mm
Length
100 mm
Length
38 mm
Length
25 mm
Length
10 mm
Length
80 mm
Width
13 mm
General
Weight, max.
135 g
